NORDAC FLEX (SK 200E ... SK 235E) – Users Manual for Frequency Inverters
96 BU 0200 en-3118
Pos: 20 8 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Op tionen [ SK 1xx E, SK 2xxE ]/Ste ckver bind er [SK 1xx E, S K 2 xxE] /St ec kverbi n der für Steu era nsc hlus s_0 0 [ SK 1 xxE , SK 2xxE] @ 1\mod_1342606037355_388.docx @ 34567 @ 4 @ 1

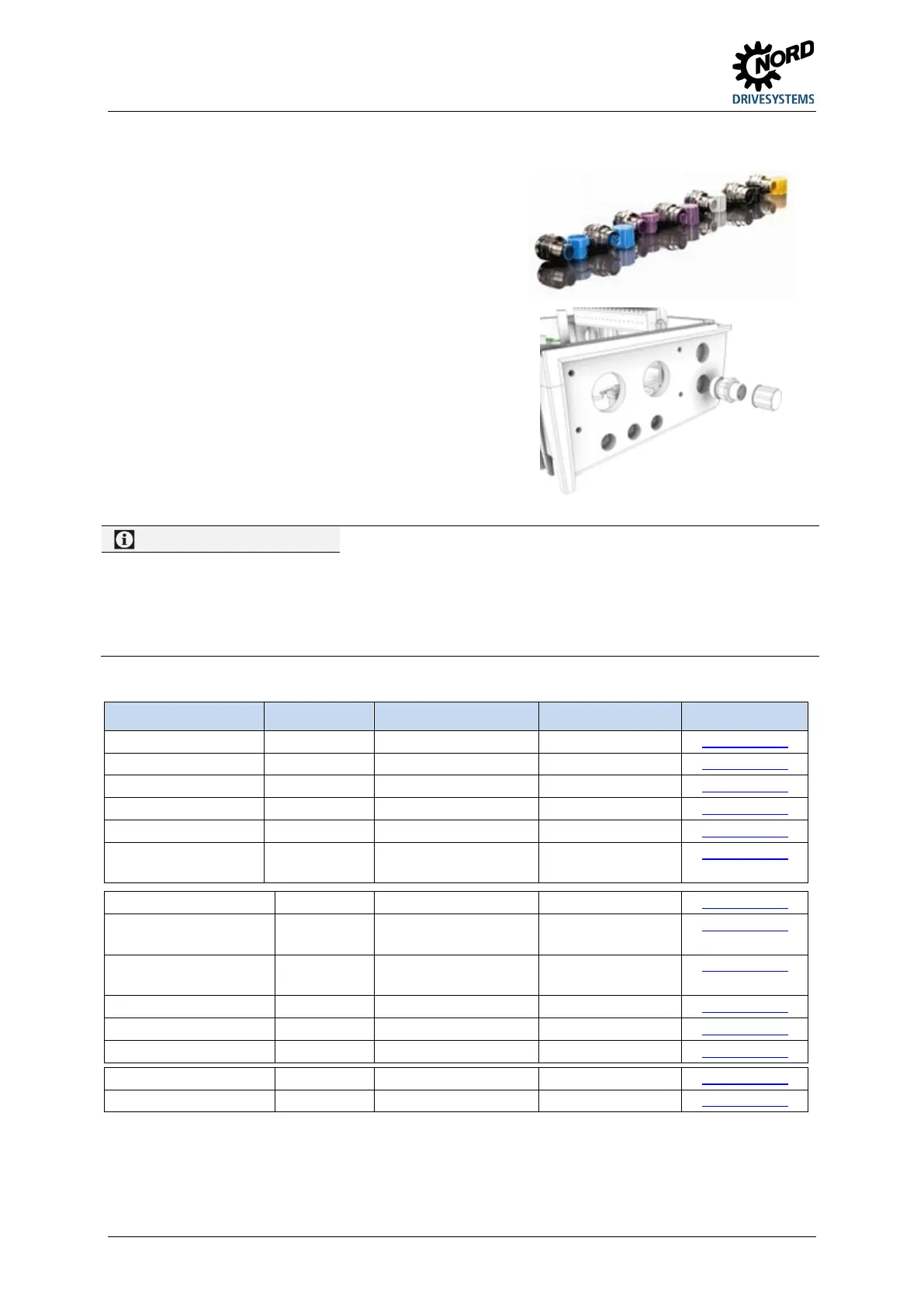

3.2.3.2 Plug connectors for control connection
Various M12 round plug connectors are available as
flanged plugs or flanged sockets. The plug connectors
are intended for installation in an M16 cable gland of the
device, or in an external technology unit. The protection
class (IP67) of the plug connector only applies in the
screwed state. Similarly to the use o
f coding pins /
grooves, the colour coding of the connectors (plastic
unit inside and cover caps) is based on functional
requirements and is intended to avoid erroneous
operation.
Suitable expansion and reducer adapters are available
for installation in M12 and M20 cable glands.
Pos: 20 9 /Anlei tung en/El ektr onik/FU und Star ter/1 . Allg emei nes/Sic herh eits- und Ins tall ations hinwei se un d Warn- Gefahrenhinweise/neu/Warn- und Ge fahr enhin weise /Inf ormati on - Über las tung St euer tei l [S K 1 x0E , SK 2x xE ( SK 2 x0E) ] @ 19\ mod_1511853930125_388.docx @ 2373539 @ @ 1
Information
Control unit overload SK 2x0E
The control unit of the device can be overloaded and destroyed if the 24 V DC supply terminals of the device are
connected to another voltage source
For this reason, particularly when installing connectors for the control connection it must be ensured that any
cores for the 24 V DC power supply are not connected to the device but are insulated accordingly (example of
connector for system bus connection SK TIE4-M12-SYSS).
Pos: 21 0 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Op tionen [ SK 1xx E, SK 2xxE ]/Ste ckver bind er [SK 1x xE, SK 2 xxE]/St eckv erbin der für St euera nschl uss _01 [SK 1xx E, SK 2x xE] @ 7\mod_1435585044528_388.docx @ 229983 @ 5 @ 1
Connector (selection)
Type Version Designation Part Number Document
Power supply Connector SK TIE4-M12-POW 275 274 507 TI 275274507
Sensors / actuators
Socket
SK TIE4-M12-INI
275 274 503
TI 275274503
Initiators and 24 V Connector SK TIE4-M12-CAO 275 274 516 TI 275274516
AS Interface
Connector
SK TIE4-M12-ASI
275 274 502
TI 275274502
AS Interface – Aux
Connector
SK TIE4-M12-ASI-AUX
275 274 513
TI 275274513
PROFIBUS (IN + OUT)
Plug connector
+ socket
SK TIE4-M12-PBR 275 274 500 TI 275274500
Pos: 21 1 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Op tionen [ SK 1xx E, SK 2xxE ]/Ste ckver bind er [SK 1xxE, SK 2xx E]/St eckv erbin der für St euera nschl uss _02 [SK 1x 0E, SK 2 xxE] @ 7\mod_1435585891227_388.docx @ 230015 @ @ 1
Analogue signal
Socket
SK TIE4-M12-ANA
275 274 508
TI 275274508
CANopen or
DeviceNet IN
Connector
SK TIE4-M12-CAO
275 274 501
TI 275274501
CANopen or
DeviceNet OUT
Socket
SK TIE4-M12-CAO-OUT
275 274 515
TI 275274515
Ethernet Socket SK TIE4-M12-ETH 275 274 514 TI 275274514
System bus IN
Connector
SK TIE4-M12-SYSS
275 274 506
TI 275274506
System bus OUT
Socket
SK TIE4-M12-SYSM
275 274 505
TI 275274505
Pos: 21 2 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Op tionen [ SK 1xx E, SK 2xxE ]/Ste ckver bind er [SK 1xxE, SK 2xx E]/St ec kver bin der für Steu era nsc hl uss _03 [ SK 2 xxE ] @ 7\mod_1435586126217_388.docx @ 230047 @ @ 1
HTL transmitter Socket SK TIE4-M12-HTL 275 274 512 TI 275274512
Safe stop
Socket
SK TIE4-M12-SH
275 274 509
TI 275274509
