3.2 Optional modules
Pos: 19 0 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Anz eige , Bedie nung un d Optio nen_ 02 [SK 1x 0E, SK 2xxE] @ 8\mod_1441202989471_388.docx @ 239281 @ @ 1
The device can be easily adapted to various requirements by using function-extending modules and
modules for for display, control and parameterisation.
Alphanumeric display and control modules ( Section 3.1 "Control and parametrisation options ") can
be used for simple commissioning by means of adapting parameters. For more complex tasks,
connection to a PC system can take place with the aid of the NORD CON parameterisation software.
Pos: 19 1 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Op tionen [ SK 1xx E, SK 2x xE] /Int ern e Ku nde nsc hni ttst elle n S K CU 4 … [S K 1 xxE, SK 2 xxE ] @ 1\mod_1342688682552_388.docx @ 35134 @ 3 @ 1
3.2.1 Internal customer interfaces SK CU4-… (installation of modules)
Internal customer units allow the scope of functionality of the devices to be extended without changing
the physical size thereof. The device provides an installation location for the installing an appropriate
option. If other option modules are required the external technology units must be used for these
( Section 3.2.2 "External technology units SK TU4-… (module attachment)").

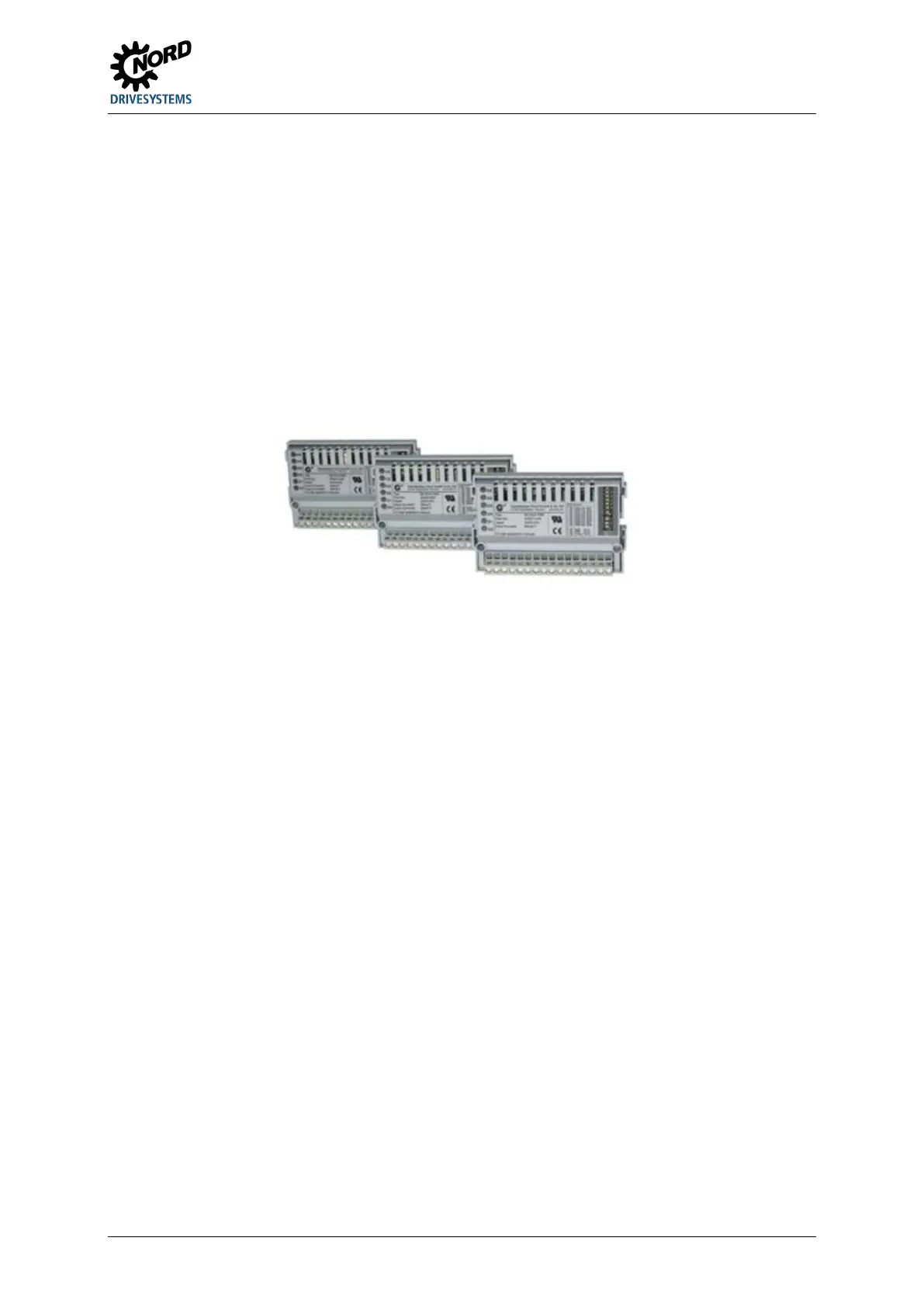

Figure 22: internal customer units SK CU4 … example
Pos: 19 2 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Op tionen [ SK 1xx E, SK 2xxE]/Interne Kundenschnittstellen SK CU4 …_01[SK 1x0E, SK 2xxE] @ 19\mod_1505397968382_388.docx @ 2365161 @ @ 1
The bus interfaces require an external 24 V power supply, and are therefore also ready for operation if
the device is not connected to the mains supply. Parameterisation and diagnosis of the bus interface
is therefore possible independently from the frequency inverter.
