3.2.3 plug connectors
The use of optionally available plug connectors for power and control connections not only makes it
possible to replace the drive unit with almost no loss of time in case of servicing, but also minimises
the danger of installation errors when connecting the device. The most common plug connector
versions are summarised below. The possible installation locations on the device are listed in
section 2.2.1 "Option locations on the device".
Pos: 20 5 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Op tionen [ SK 1xx E, SK 2xxE ]/Ste ckver bind er [SK 1xxE, SK 2xxE]/ Steckverbin der für L eistung sans chlus s_00 [ SK 1xx E, SK 2xxE] @ 1\mod_1342602945445_388.docx @ 34002 @ 45 @ 1
3.2.3.1 Plug connectors for power connections
Various connectors are available for the motor or mains connection.

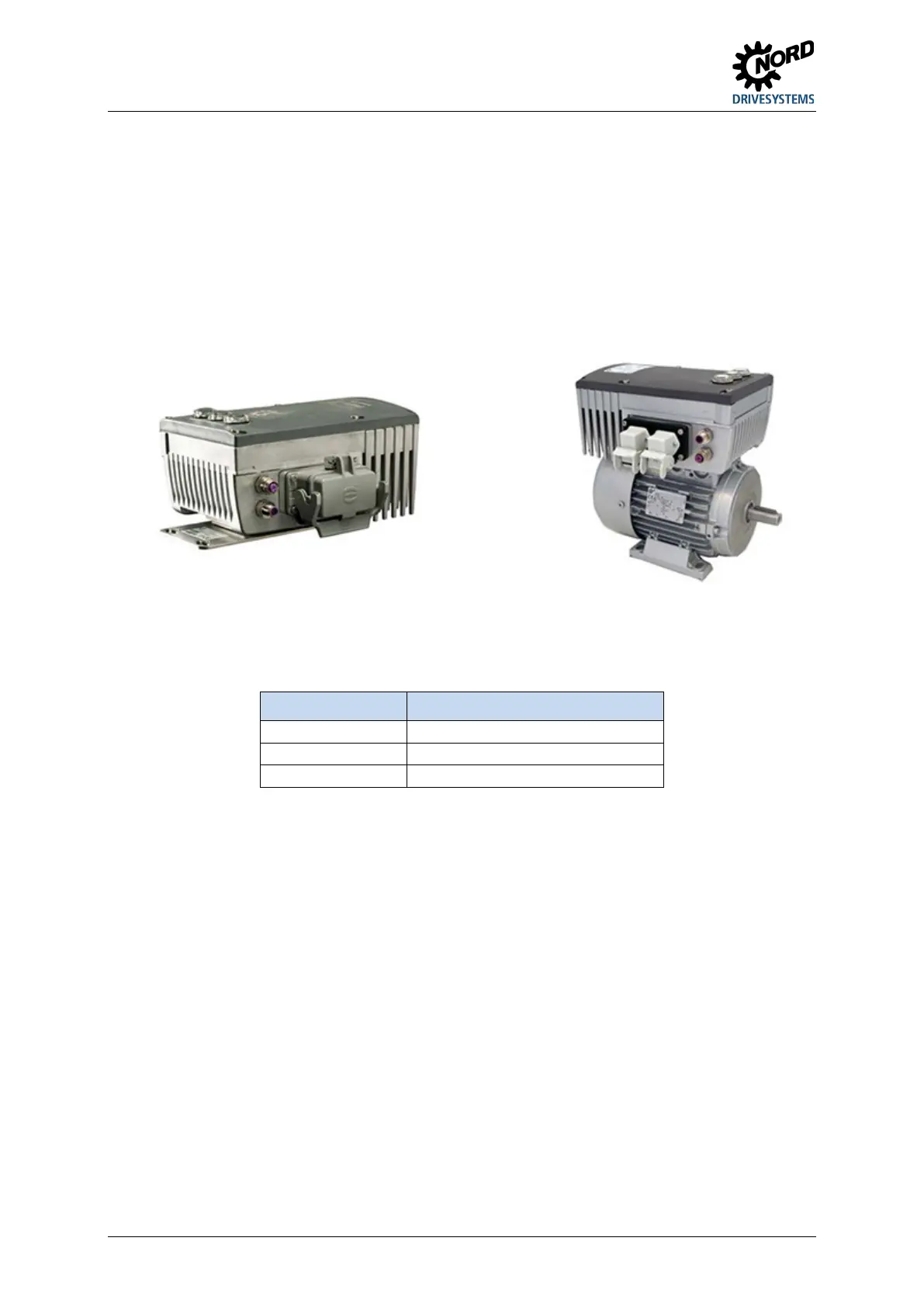

Figure 24: Examples of devices with connectors for connecting the power
3 different connections are available, which can also be combined (example "-LE-MA"):
Mounting version Meaning
… - LA Power output
To Next Page
