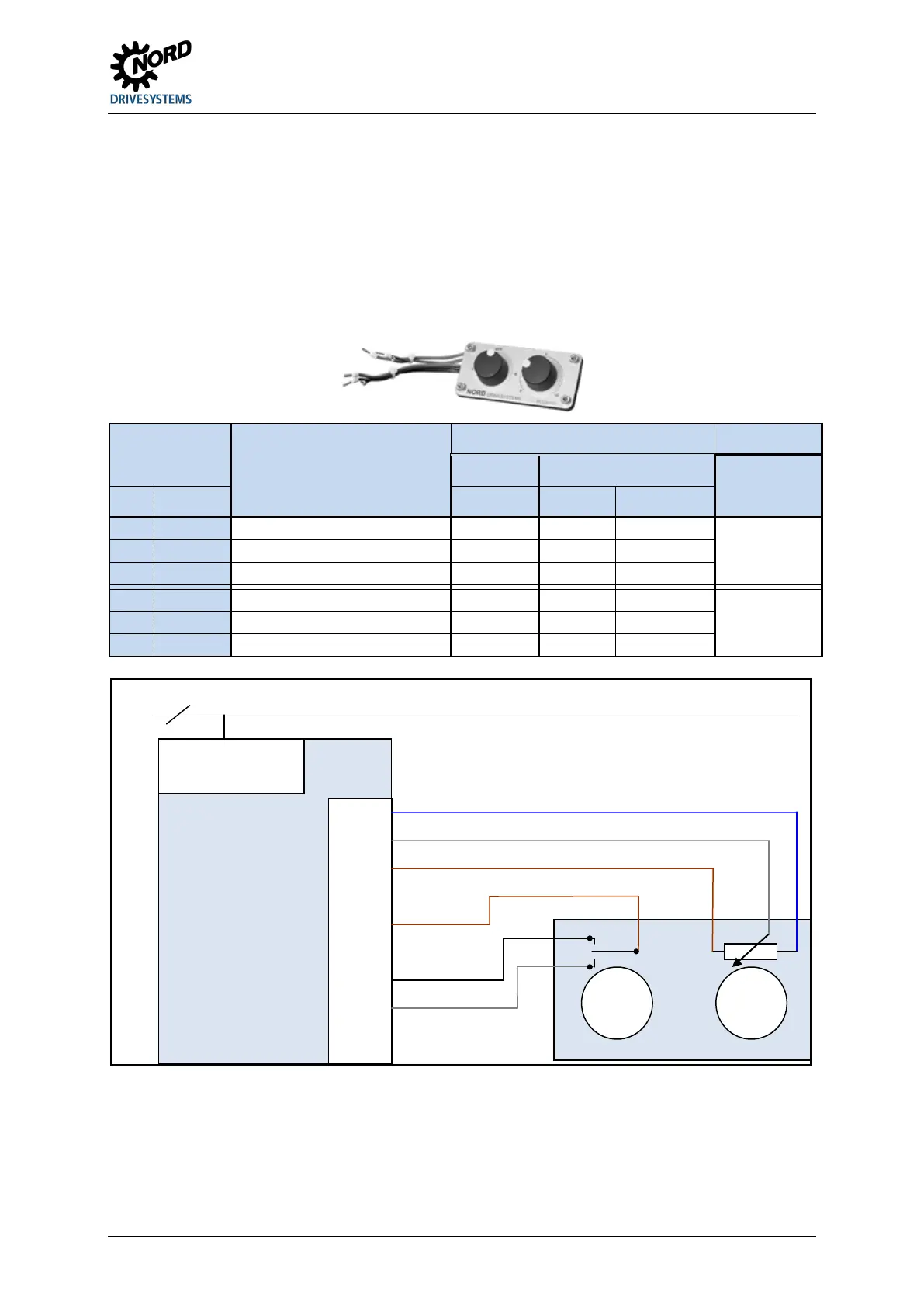

3.2.4 Potentiometer adapter, SK CU4-POT
Digital signals R and L can be directly applied to the corresponding digital inputs 1 and 2 of the
frequency inverter.
The potentiometer (010 V) can be evaluated via an analogue input of the frequency inverter (if
present) or via an I/O extension. An optional 24V module (SK xU4-24V-...) also provides the possibility
of converting analogue setpoint values into proportional pulses (frequencies). These pulses can in turn
be evaluated via one of the digital inputs 2 or 3 (P420 [02]/[03] = 26/27) of the frequency inverter in the
form of a setpoint (P400 [-06]/[-07]).
Module
SK CU4-POT
Connection: Terminal No. Function
SK 2x0E SK 2x5E
Pin Colour FI FI Mains unit
1 brown 24V- supply voltage 43 44
Rotary switch
L - OFF - R
2
black
Enable R (e.g. DIN1)
21
21
3 white Enable L (e.g. DIN2) 22 22
4 white Access to AIN + 14 14
Potentiometer
10 kΩ
5
brown
Reference voltage 10V
11
11
6
blue
Analogue ground AGND
12
12
SK CU4-POT
Poti
0-10
R/0/L
switch
Frequency inverter
SK 2x0E-...
Control terminal bar
12(40)
14
11
.
.
43
.
.
21
22
.
L1 - L2/N - L3
230/400V
24V=
10V=
(A)GND
0
-10V
R
L
1/3~ 230/400V + PE
(br)
(b
r)
(bla)
(wt)
(br)
(wt)
(blu)
Figure 25: Connection diagram SK CU4-POT, example SK 2x0E
