6.2.1 Diagnostic LEDs on the SK 2x0E (size 1 … 3)
1
RJ12,
RS 232, RS 485
2
DIP switch AIN1/2
3
Diagnostic LEDs

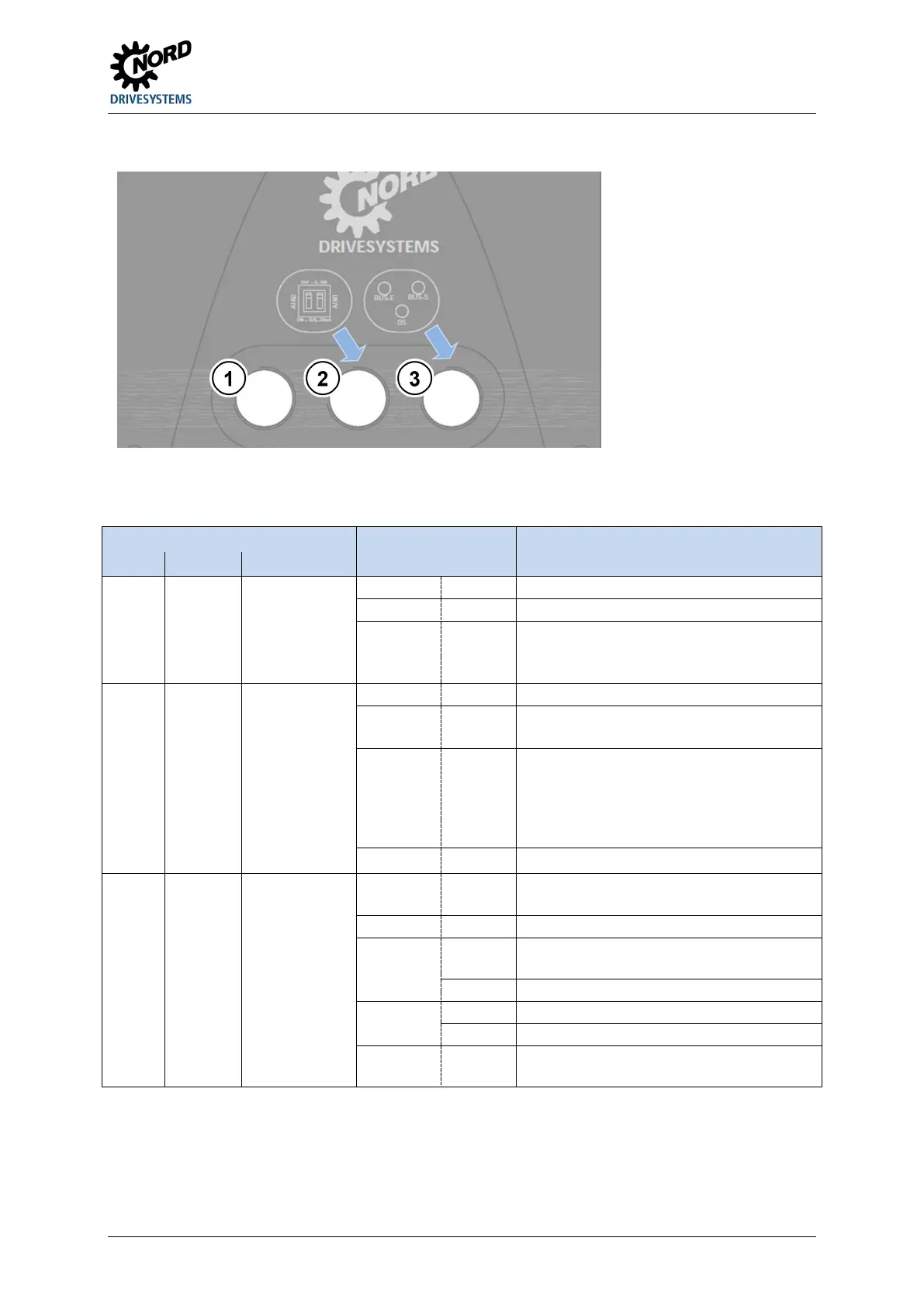

Figure 29: Diagnostic opening SK 2x0E (size 1 … 3)
Diagnostic LEDs
LED
Name Colour Description Signal status Meaning
BUS-S green System bus off No process data communication
Status
Flashing
4 Hz
"BUS Warning"
on
Process data communication active
 Reception of at least 1 telegram / s
 SDO data transfer is not displayed
BUS-E red System bus off No error
Error
Flashing
4 Hz
Monitoring error P120 or P513
 E10.0 / E10.9
Flashing
1 Hz
Error in an external system bus module
 Bus module  timeout on external bus
(E10.2)
 System bus module has a module error
(E10.3)
on System bus in state “BUS off”
DS dual
red/green
FI status off FI not ready for operation,
 no mains or control voltage
green on
FI is enabled (inverter running)
green
flashing
0.5 Hz
FI is in standby or not enabled
4 Hz FI is in switch-on block
red/green
4 Hz
Warning
alternating 1…25 Hz Degree of overload of switched-on FI
red
flashing
Error, flashing frequency → Error number
