2 Assembly and installation
BU 0200 en-3118 37
2 Assembly and installation
Pos: 71 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M o ntag e/M otor mo ntag e - Standard [SK 1xxE, SK 2xxE]/Montage "Gerät" [SK 1xxE / SK 2xxE] @ 1\mod_1341484255223_388.d ocx @ 299 01 @ 2 @ 1
2.1 Installation SK 2xxE
The devices are available in various sizes depending on their output. They can be mounted on the
terminal box of a motor or in its immediate vicinity.

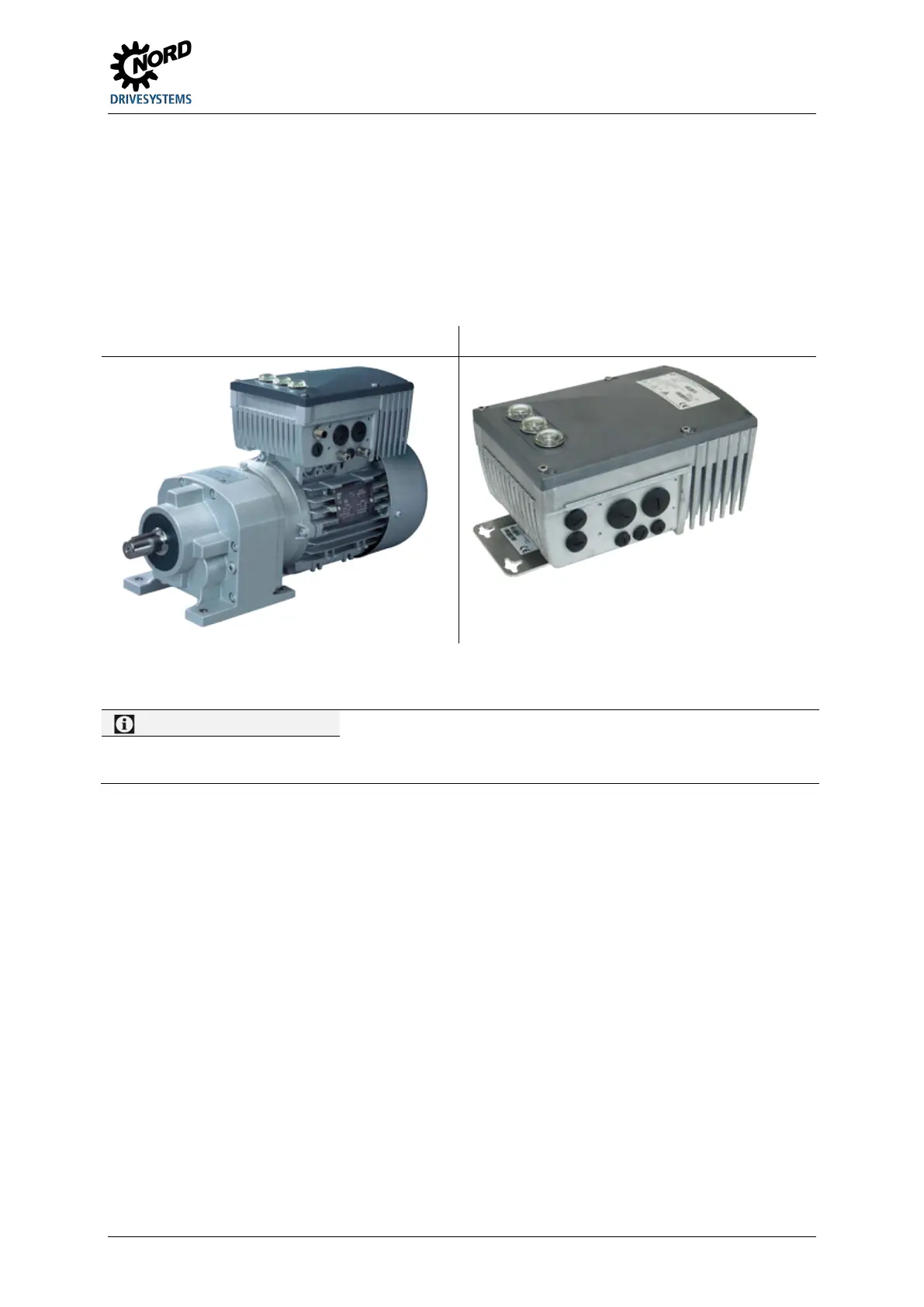

Motor-mounted version Wall-mounted version
When a complete drive unit (gear unit + motor + SK 2xxE) is delivered, the device is always fully
installed and tested.
Information
Device version IP6x
IP6x-compliant devices must be installed by NORD, since special measures have to be implemented. IP6x
components that are retrofitted on site cannot ensure that this protection class is provided.
Pos: 72 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M o ntag e/M otor mo ntag e - Standard [SK 1xxE, SK 2xxE]/Montage "Gerät"_Ergänzung 1 [SK 2xxE] @ 7\mod_1434102314079_388.docx @ 224572 @ @ 1
The SK 2xxE is connected to the motor or the wall-mounting kit using the size that is suitable for the
SK T14-… connection unit . The adapter unit can also be ordered separately for subsequent mounting
on an existing motor or to replace a different motor-mounted frequency inverter.
The “Adapter unit SK T14” module includes the following components:
• Cast housing, seal (already glued in) and insulation plate
• Power terminal block, in accordance with mains connection
• Control terminal block, in accordance with SK 2xxE version
• Screw kit, for mounting on the motor and the terminal bars
• Pre-fabricated cable for motor and PTC connections
• Size 4 only: As of hardware status "EAA" (frequency inverter) or "EA" (connection unit) ring core
(ferrite) with fastening material
Pos: 73 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M o ntag e/M otor mo ntag e - Standard [SK 1xxE, SK 2xxE]/Montage "Gerät"_Ergänzung 2 [SK 1x0E / SK 2xxE] @ 7\mod_1434103340270_388.docx @ 224636 @ @ 1
