2 Assembly and installation
BU 0200 en-3118 41
Pos: 79 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M ont age und Ins tall ation/M ont age/M otorm ontag e - Standard [SK 1xxE, SK 2xxE]/Anpassung an die Motorbaugröße [SK 1xxE, SK 2xxE] @ 1\mod_1341491159493_388.docx @ 29999 @ 4 @ 1
2.1.2.1 Adapters for different motors
In some cases, the terminal box attachments are different for different motor sizes. Therefore, it may
be necessary to use adapters to mount the device.
In order to ensure that the maximum IPxx protection class of the device is provided for the entire unit,
all elements of the drive unit (e.g. motor) must correspond to at least the same protection class.
Information
External motors
The adaptability of motors from other manufacturers must be checked individually!
Information about converting a drive to the device can be found in BU0320
.
Pos: 80 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M ont age/M ot ormo ntag e - St andar d [SK 1 xxE, SK 2 xxE]/A npassu ng an di e Motor baugr öße_A dapt er [SK 2xx E] @ 7\mod_1434357316607_388.docx @ 224945 @ 5 @ 1
1
Connection unit SK TI4
2
Adapter plate
3
Gasket
4
Motor, size 71

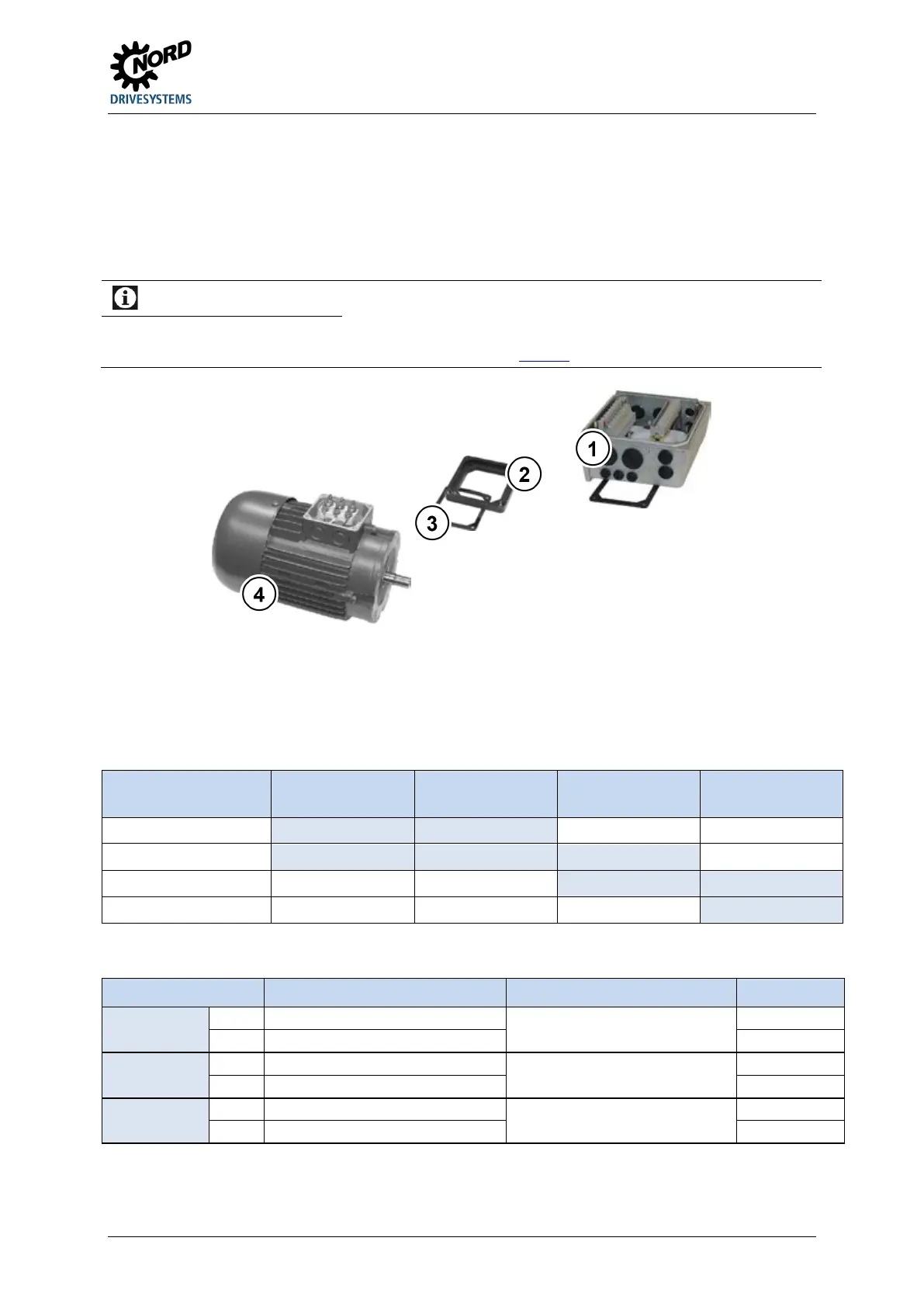

Figure 6: Example of motor size adaptation
NORD motor
sizes
Add-on
SK 2xxE Size 1
Add-on
SK 2xxE Size 2
Add-on
SK 2xxE Size 3
Add-on
SK 2xxE Size 4
Size 63 – 71
with adapter kit I
with adapter kit I
Not possible Not possible
Size 80 – 112
Direct mounting
Direct mounting
with adapter kit II
Not possible
Size 132
Not possible Not possible
Direct mounting
with adapter kit III
Size 160-180
Not possible Not possible Not possible
Direct mounting
Overview of adapter kits
Adapter kit Designation Components Part No.
Adapter kit I
IP55
SK TI4-12-Adapter kit_63-71
Adapter plate, terminal box frame
seal and screws
275119050
IP66
SK TI4-12-Adapter kit_63-71-C
275274324
Adapter kit II
IP55
SK TI4-3-Adapter kit_80-112
Adapter plate, terminal box frame
seal and screws
275274321
IP66 SK TI4-3-Adapter kit_80-112-C 275274325
Adapter kit III
IP55 SK TI4-4-Adapter kit_132 Adapter plate, terminal box frame
seal and screws
275274320
IP66
SK TI4-4-Adapter kit_132-C
275274326
