4 Commissioning
BU 0200 en-3118 113
Pos: 24 6 /Anlei tung en/El ektr onik/FU und Star ter/4 . Inbe trieb nahme/ SK 1xx E, SK 2 xxE, -FDS/Inbetriebnahme Gerät/Inbetriebnahmebeispiele [SK 1x0E, SK 2xxE] @ 1\mod_1343222512142_388.docx @ 37573 @ 3 @ 1
4.3.4 Commissioning examples
All SK 2xxE models can be operated as delivered. Standard motor data for a 4-pole standard
asynchronous motor of the same power is parameterised. The PTC input must be bypassed, if a
motor with PTC is not available. Parameter (P428) must be changed if an automatic startup with
"Mains On" is required.
Pos: 24 7 /Anlei tung en/El ektr onik/FU und Star ter/4 . Inbe trieb nahme/SK 1xxE, S K 2xxE, -FD S/I nbetr iebna hme Ger ät/Mi nimal konfi gurat ion SK 2x 0E [SK 2x xE} @ 1\mod_1343222569379_388.docx @ 37597 @ 4 @ 1

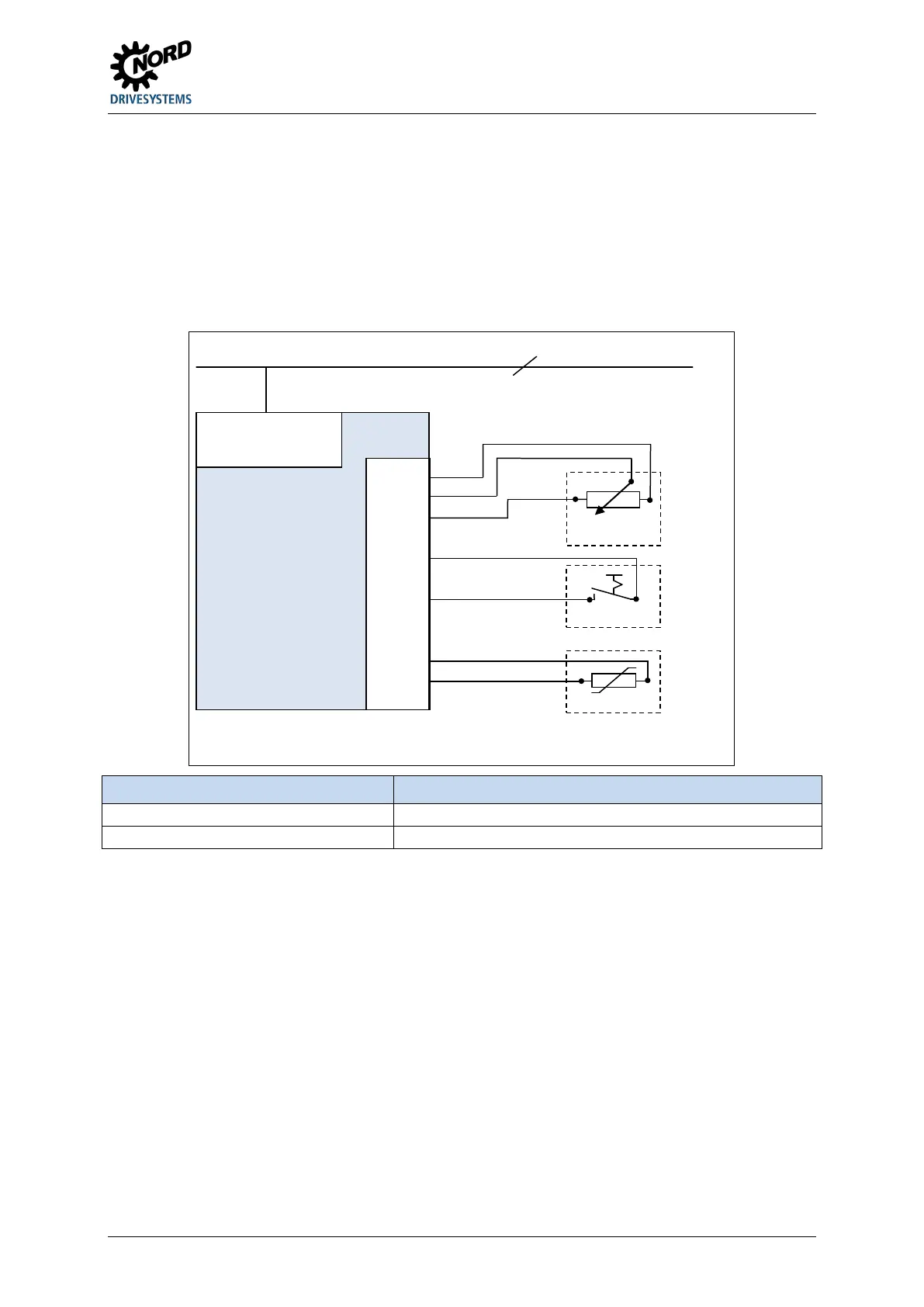

4.3.4.1 SK 2x0E - Minimal Configuration
The frequency inverter provides all the necessary low voltages (24 V
DC
/ 10 V
DC
).
Frequency inverter
SK 2x0E-...
12*
14**
11
.
43
.
21
22
.
38
39
*with SK 220E and SK 230E: use GND (Terminal 40)
**with SK 220E and SK 230E: use Analog In 2 (Terminal 16) and parameterise P400[02] to {1}
Function Setting
External 10 kΩ potentiometer
