NORDAC FLEX (SK 200E ... SK 235E) – Users Manual for Frequency Inverters
224 BU 0200 en-3118
Pos: 64 0 /Anlei tung en/El ektr onik/FU und Star ter /6. M eldung en zu m B etrie bsz ust and /Diag nos e LED s/Di ag nose- LEDs am S K 2 x0E ( BG 4) un d SK 2x5 E [SK 2xxE ] @ 2\mod_1350999163928_388.docx @ 49242 @ 355 @ 1
6.2.2 Diagnostic LEDs on the SK 2x0E (size 4) and SK 2x5E
1
RJ12,
RS 232, RS 485
2
Diagnostic LEDs
3
P1 / P2, LED-FU,
LED-ASi

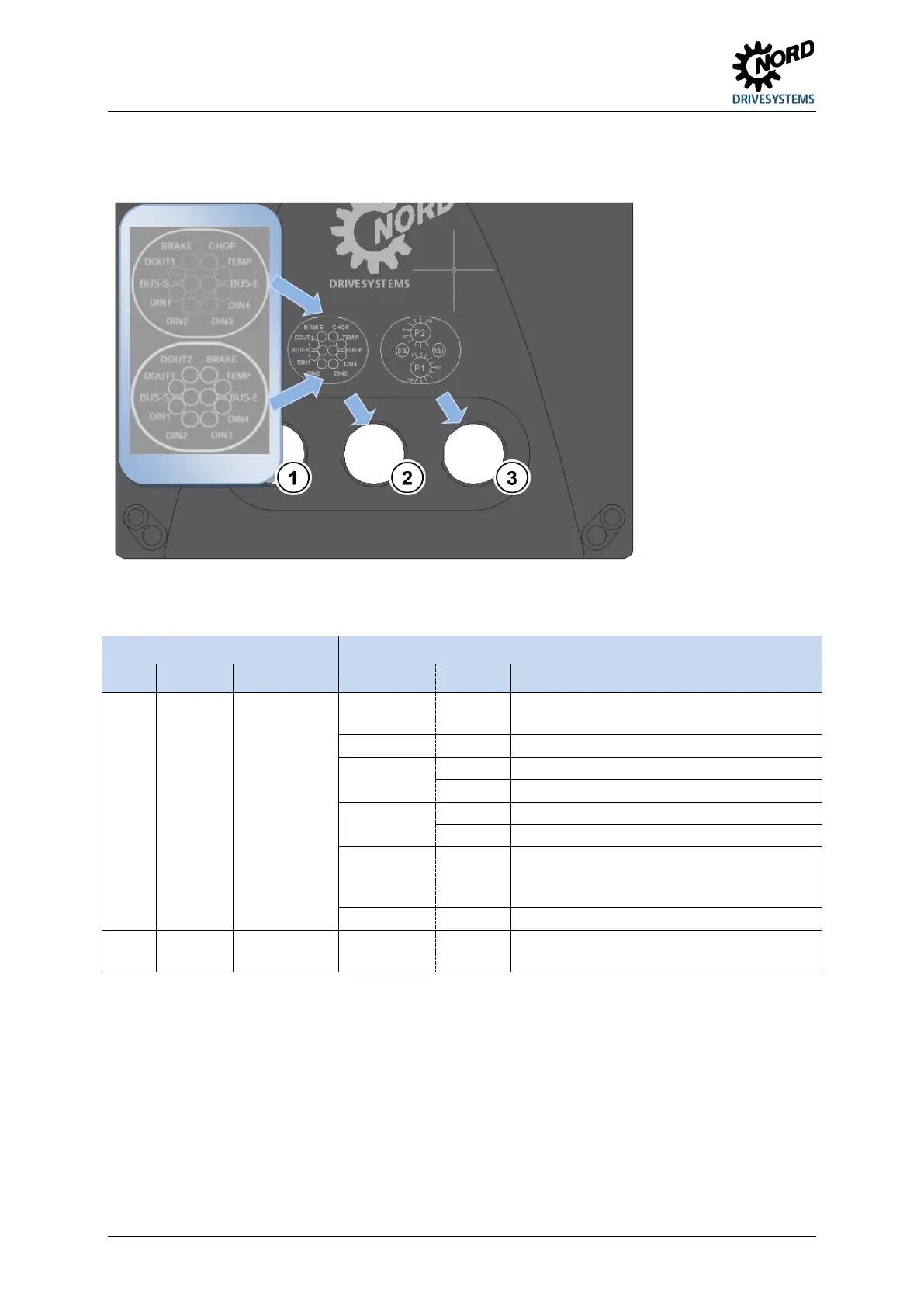

Figure 30: Diagnostic opening SK 2x0E (size 4) and SK 2x5E
Status LEDs
LED Signal
Name Colour Description Status Meaning
DS
dual
red/green
FI status
off
FI not on standby,
 no mains and control voltage
green on FI is enabled (inverter running)
green
0.5 Hz
FI is in standby or not enabled
Flashing
4 Hz
FI is in switch-on block
red/green 4 Hz Warning
Alternating
1…25 Hz
Degree of overload of switched-on FI
green on +
red flashing
FI not ready for operation,
 control voltage present, but no mains
voltage
red flashing Error, flashing frequency → Error number
AS-I
dual
red/green
AS-i status
Details ( section 4.5 "AS Interface (AS-i)")
SK 2x5E
SK 2x0E
