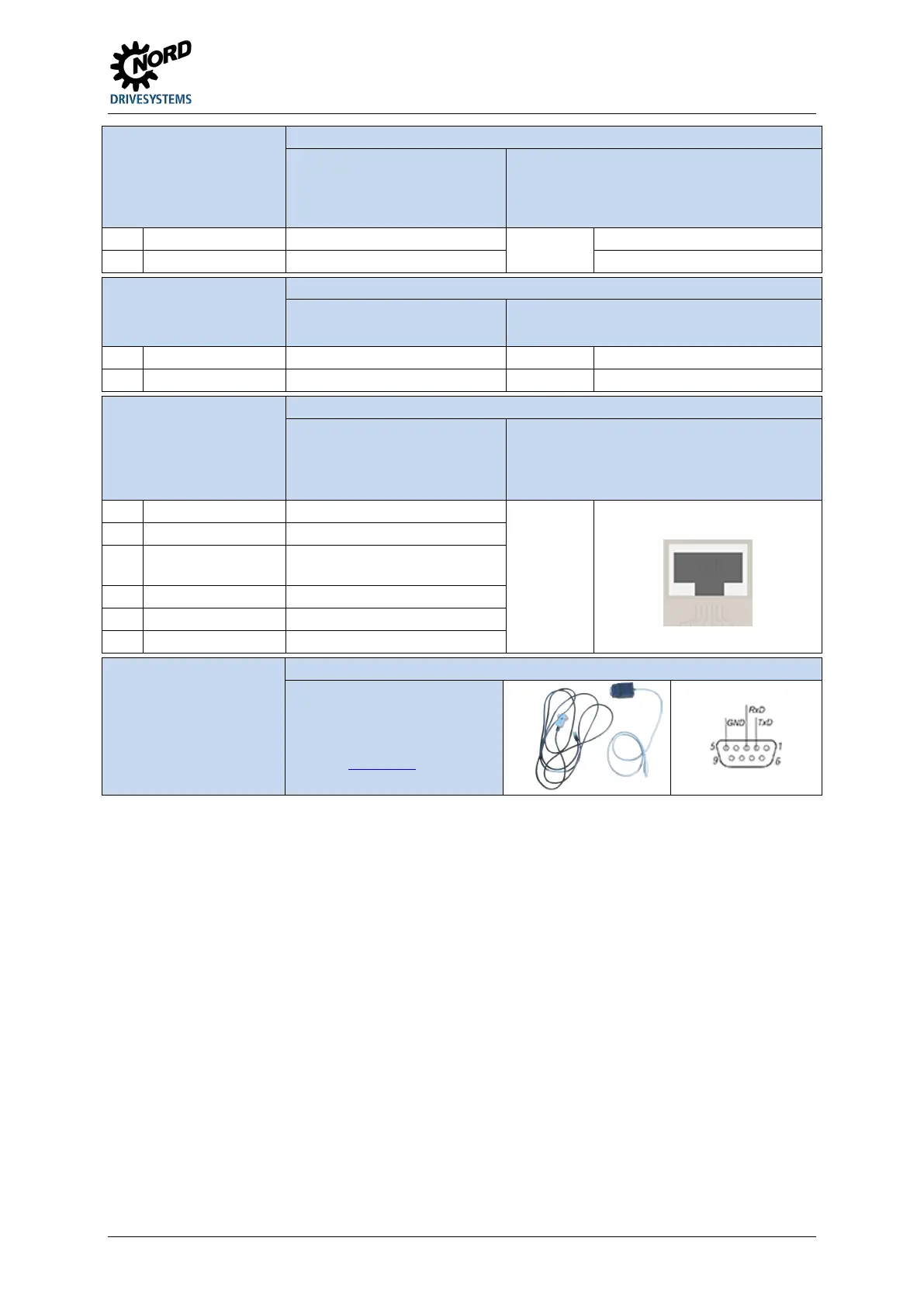

Nord Drivesystems NORDAC FLEX SK 210E Series User Manual

2 Assembly and installation
BU 0200 en-3118 71
Pos: 162. 17 / Anl eit unge n/ Elek tro nik/F U u nd St arter/ 2. Mo ntage u nd Inst allati on/El ektris cher Anschl uss/S K 1xxE, S K 2xxE, SK xxxE-FD S/St euert eil/D etails Steuer ansc hlüss e (Sam mlung )/Detai ls St eueran schl üsse _10_A SI [SK 2 xxE] @ 7\mod_1435563787234_388.docx @ 229490 @ @ 1
AS Interface
Control of device via the simple field bus level: Actuator/sensor interface
26.5 – 31.6 V
SK 220E and SK 230E: ≤ 25 mA
SK 225E and SK 235E: ≤ 290 mA, of
which a maximum of 60 mA required to
supply external actuators
Only usable for yellow AS interface line, feed via black cable
not possible.
Configuration via DIP switches S1:4 and 5
84
ASI+
ASI+
P480 …
-
85
ASI-
ASI-
P483
-
Pos: 16 2.18 / Anleit ungen/ Elek troni k/FU un d Start er/2. Montag e und Ins tallati on/El ektr ischer Ansc hluss/ SK 1xx E, SK 2x xE, SK xxxE-FD S/Steuerteil/Details St eueran schl üsse ( Samml ung)/D etails Steuer ansc hlüss e_11_ SH [SK 2xxE] @ 7\ mod_1435563767199_388.docx @ 229426 @ @ 1
Functional Safety
"Safe Stop"
Fail-safe input
Details: BU0230, “Technical data”
The input is always active. In order to make the device ready
for operation, this input must be provided with the required
voltage.
89
VI/24V SH
24 V input
-
-
88
VI/0V SH Reference potential - -
Pos: 162. 19 / Anl eit unge n/ Elek tro nik/F U u nd St arter/ 2. Mo ntag e u nd I nst allati on /El ektr isc her Ansc hl uss/ SK 1xx E, S K 2xxE, SK xxxE-FDS/St euert eil/D etail s Steuer ans chlüss e (Sam mlung )/Det ails S teuer anschl üsse _12_R J12 [SK 1x0E, SK 2xxE, SK xxxE-FD S] @ 7\mod_1435565668231_388.docx @ 229682 @ @ 1
Communication
interface
Device connected to different communication tools
24 VDC ± 20% RS 485 (For connecting a parametrisation box)
9600 … 38400 Baud
Terminating resistance (1 kΩ) fixed
RS 232 (For connecting to a PC (NORD CON))
9600 … 38400 Baud
1
RS485 A+
Data cable RS485
P502…
2
RS485 B-
Data cable RS485
P513 [-02]
3
GND
Reference potential of bus
signals
4
RS232 TXD Data cable RS232
5
RS232 RXD
Data cable RS232
6
+24 V
Voltage output
1 - 2 - 3 - 4 - 5 - 6
Pos: 162. 20 / Anl eit unge n/ Elek tro nik/F U u nd St arter/ 2. Mo ntag e u nd I nstallation/Elektrischer Anschluss/SK 1xxE, SK 2xxE, SK xxxE-FDS/ St euer tei l/De tail s St euer an schl üss e ( Sa mml ung) /D etails S teuer an schl üss e_1 2_R J12 _Erg änz ung [S K 1 xxE, SK 2xxE , S K xx xE-FD S] @ 20 \mod_1516606174814_388.docx @ 2384109 @ @ 1
Connection cables
(accessories / optional)
Connection of the device to an MS-Windows® PC with NORDCON software
Length: approx. 3.0 m + approx. 0.5 m
Part number: 275274604
Suitable for connection to a USB port in a
PC or alternatively to a SUB-D9
connection.
Details:  TI 275274604
