Variants of a 24 V supply for the peripherals (e.g. actuators)
(Valid for SK 225E/ SK 235E, except –AUX, -AXB)
Pos: 26 3.22 / Anlei tung en/ Ele ktr oni k/FU un d St art er/ 4. I nbetr ie bna hm e/AS-I nter face [all e Ger äte]/I NFORM ATIO N - Verwendung Wandmontageki t mit Lüfter [SK 200E] @ 22\mod_1530175201185_388.docx @ 2429050 @ @ 1
Use of wall mounting kit with fan
If the frequency inverter is operated with a SK TIE4-WMK-L-… ( Section 2.1.3.2 "Wall mounting kit with fan")
wall mounting kit, the following must be noted:
• Power supply to the fan via the frequency inverter is not permitted
• Only provide the power supply to the fan via a separate 24 V DC power supply (see following example:
"Variant 2 – Use of an optional SK xU4-24V-… mains unit").
Pos: 263. 23 / Anl eit unge n/ Elek tro nik/F U u nd St arter/ 4. Inb etri eb nah me/A S-I nterfa ce [all e Gerät e]/An schlus s_06 _02 (Var iant en 24V Ver sorg ung Per ipheri e) [SK 2 xxE] @ 2 2\mod_1530176240171_388.docx @ 2429086 @ @ 1
Variant 1 – connection to 24 V (Terminal 44)
• The limit of 60 mA for the maximum load (total current) must be complied with.

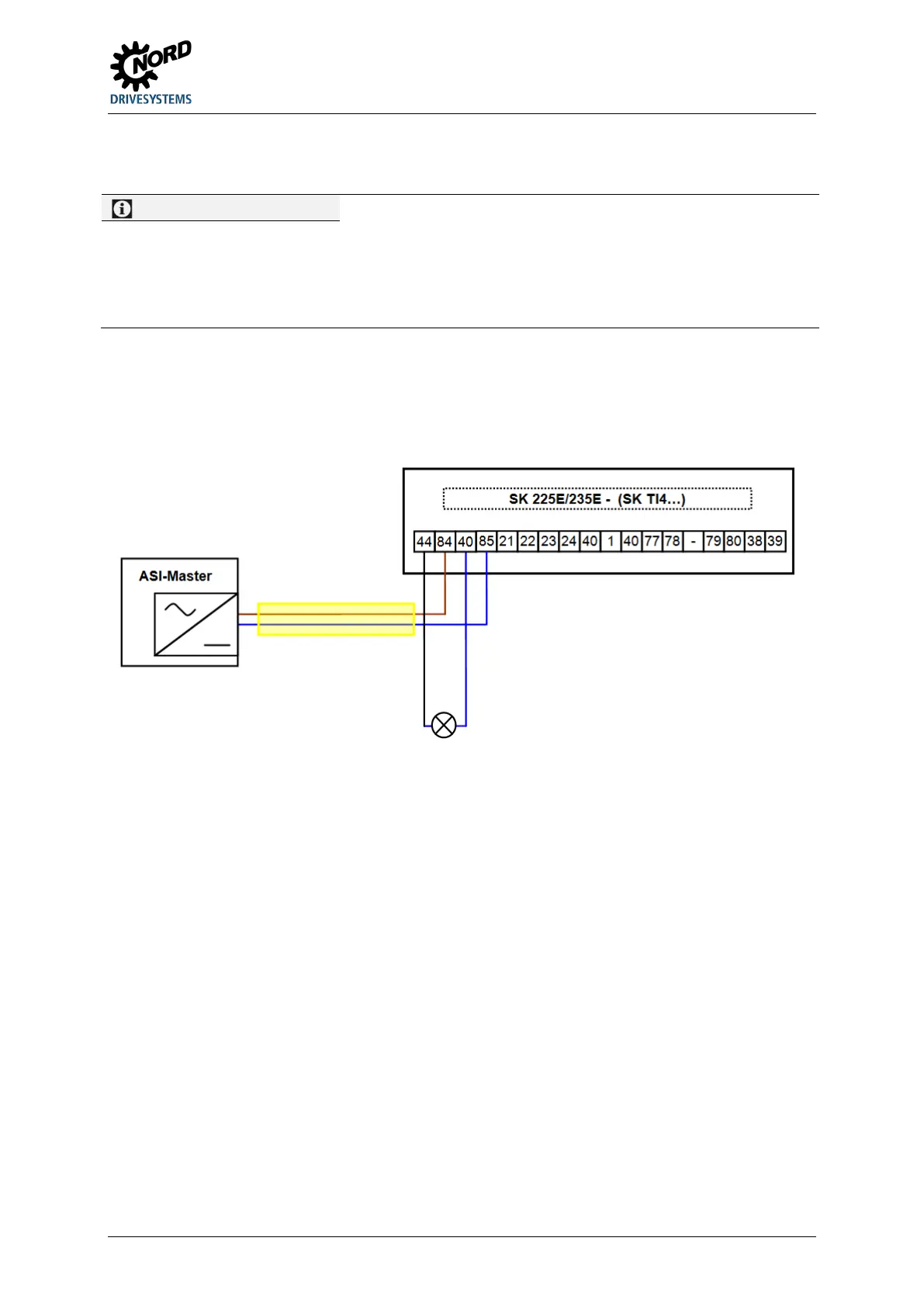

Connection example:
