152 Chapter 12 Working with DIMMs and the CPU
Install new CPU
a. Ensure that the microprocessor lever is open all the way to the
left.

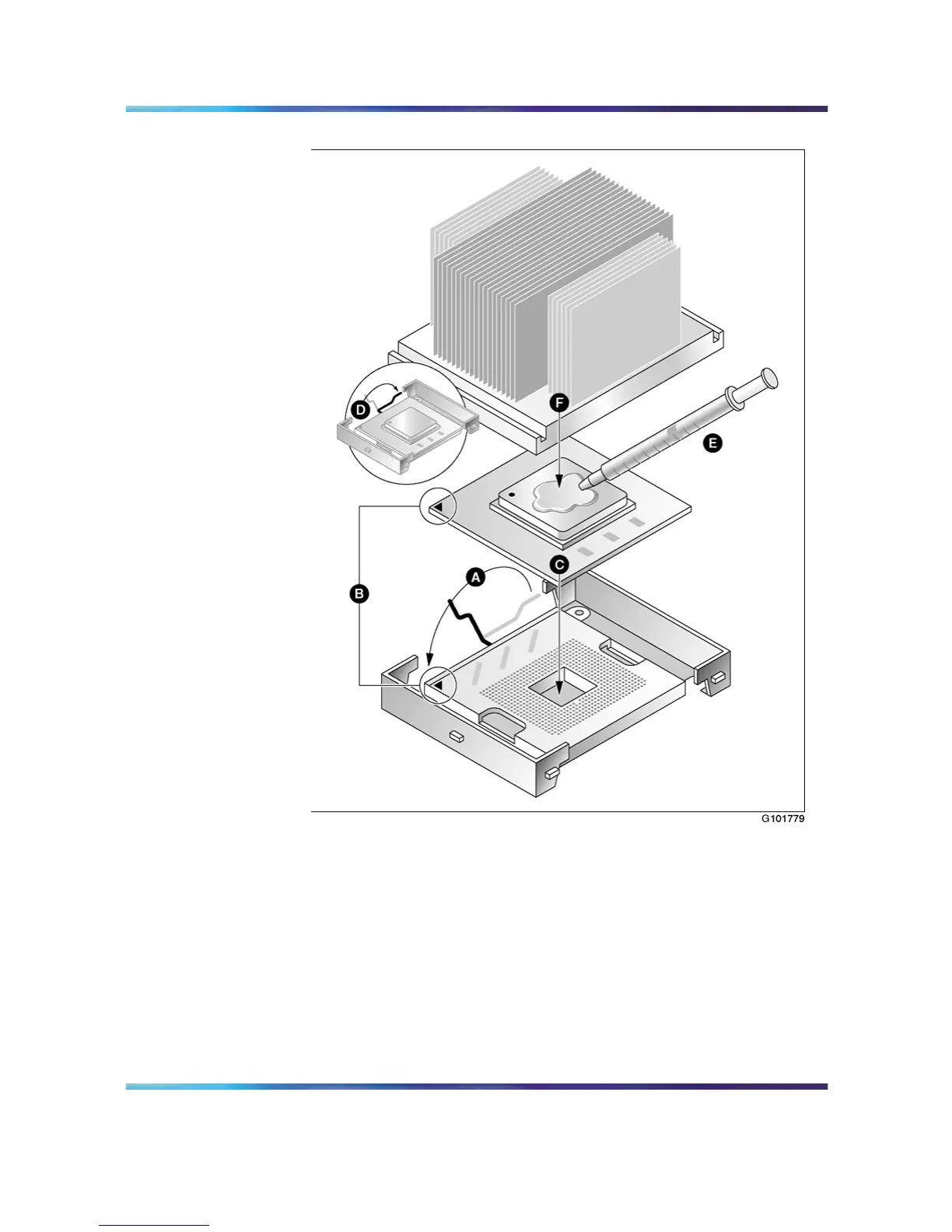

b. Align the gold triangle on one corner of the microprocessor with
the gold triangle on the socket.
Note: See the top left corner of the microprocessor in the
photograph in step 6 on 6.
c. Apply gentle downward pressure to the microprocessor to seat
it in its socket.
d. Lower and secure the lever.
