154 Chapter 12 Working with DIMMs and the CPU
b. Align the center hole on the clip over the tab on the heat sink
guide.
c. Slide the clip forward or back until the tab is in the small portion
of the hole.
d. With both hands, apply even downward pressure on the ends of
the clip until it snaps into place over the end tabs on the heat
sink guides.
4
Use both hands to install the heat sink housing assembly as shown
in "Install heat sink housing" (page 154). See also the description
that follows on page 214.

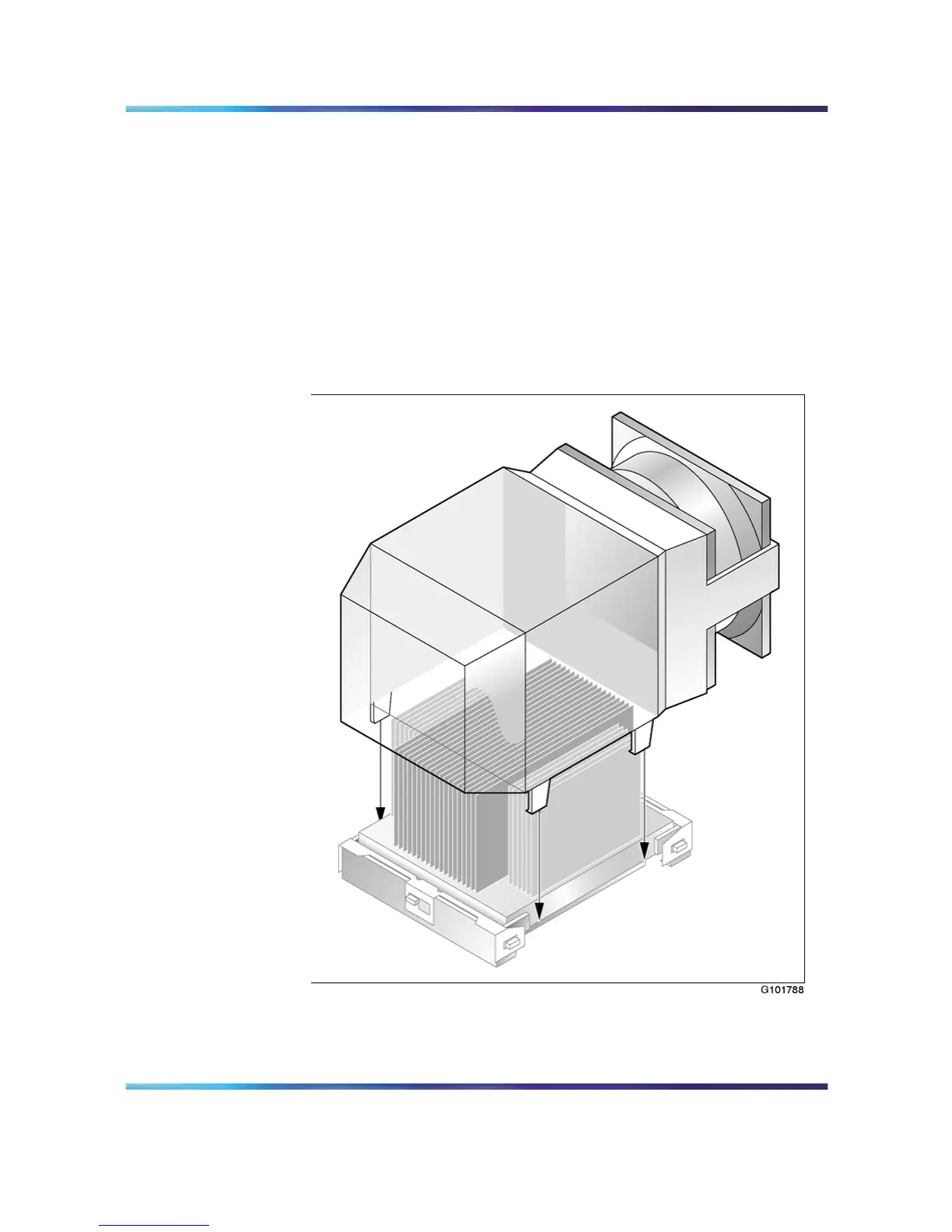

Install heat sink housing
a. Grasp the bottom edge of each side of the heat sink housing.
Nortel CallPilot
703t Server Maintenance and Diagnostics
NN44200-702 01.03 Standard
5.0 3 April 2007
Copyright © 2007, Nortel Networks Nortel Networks Confidential
.
