Routing and terminating the VF cables 6-11
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 6-2 (continued)
Connecting the VF cable pairs 1–600 to BIX connectors with the cross-connect

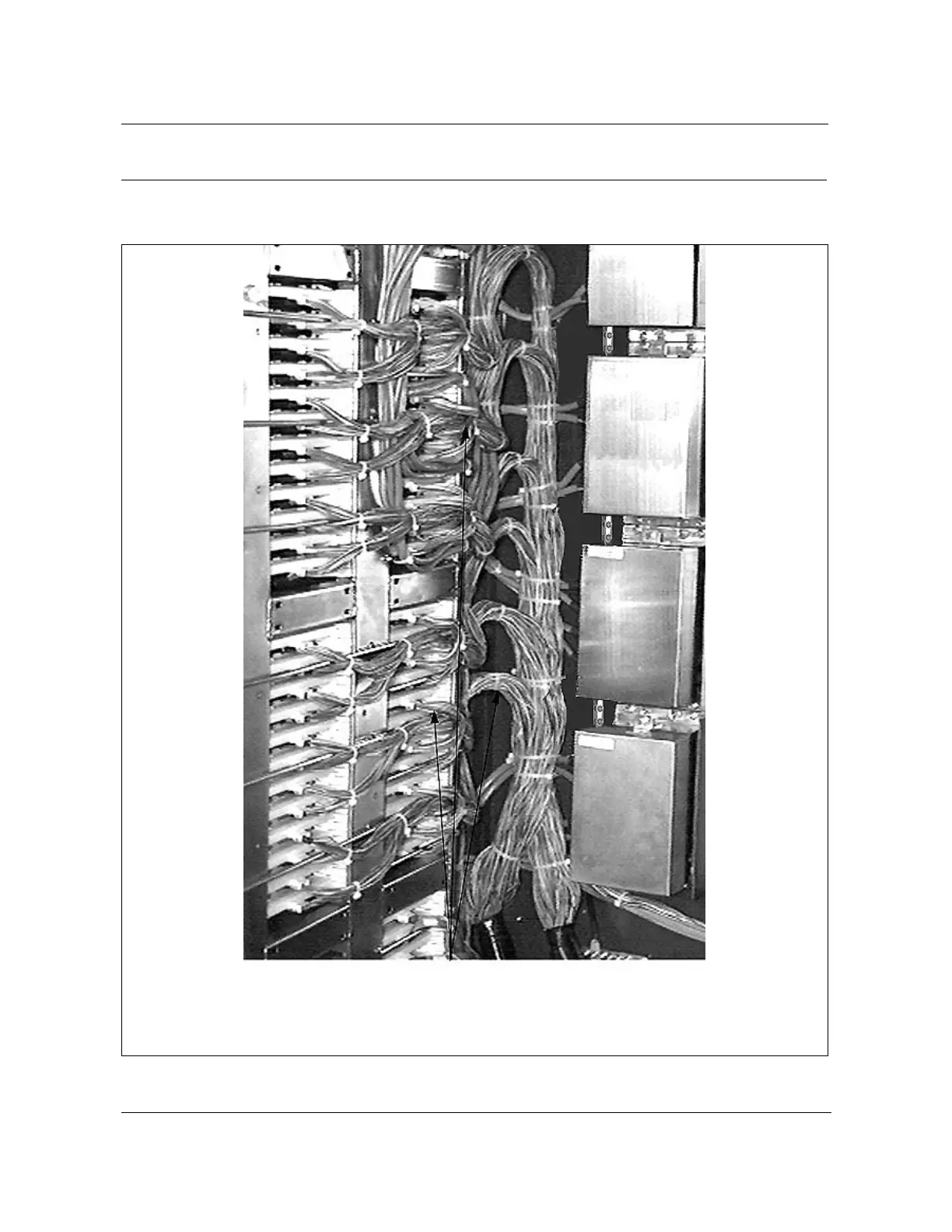

Figure 6-4
Route the second 600-pair binder groups to connectors 1–600
—continued—
Route 2nd 600-pair binder
groups to connectors 1–600
(right side of swing frame)
