Routing and terminating the VF cables 6-37
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 6-8 (continued)
Connecting the outside plant cable pairs to 710 or 3M MS2 DPM connectors without
cross-connect
Action
Step Action
1 From the base of the OSP cables, tie wrap each bundle against the left rear
wall ladder position (see Figure 6-17).
2 Position the binder groups from the OSP cables in the proper sequence and
secure them against the ladder supports.
3 Run each bundle in its proper pair count order from top to bottom, following
standard color code assignments.

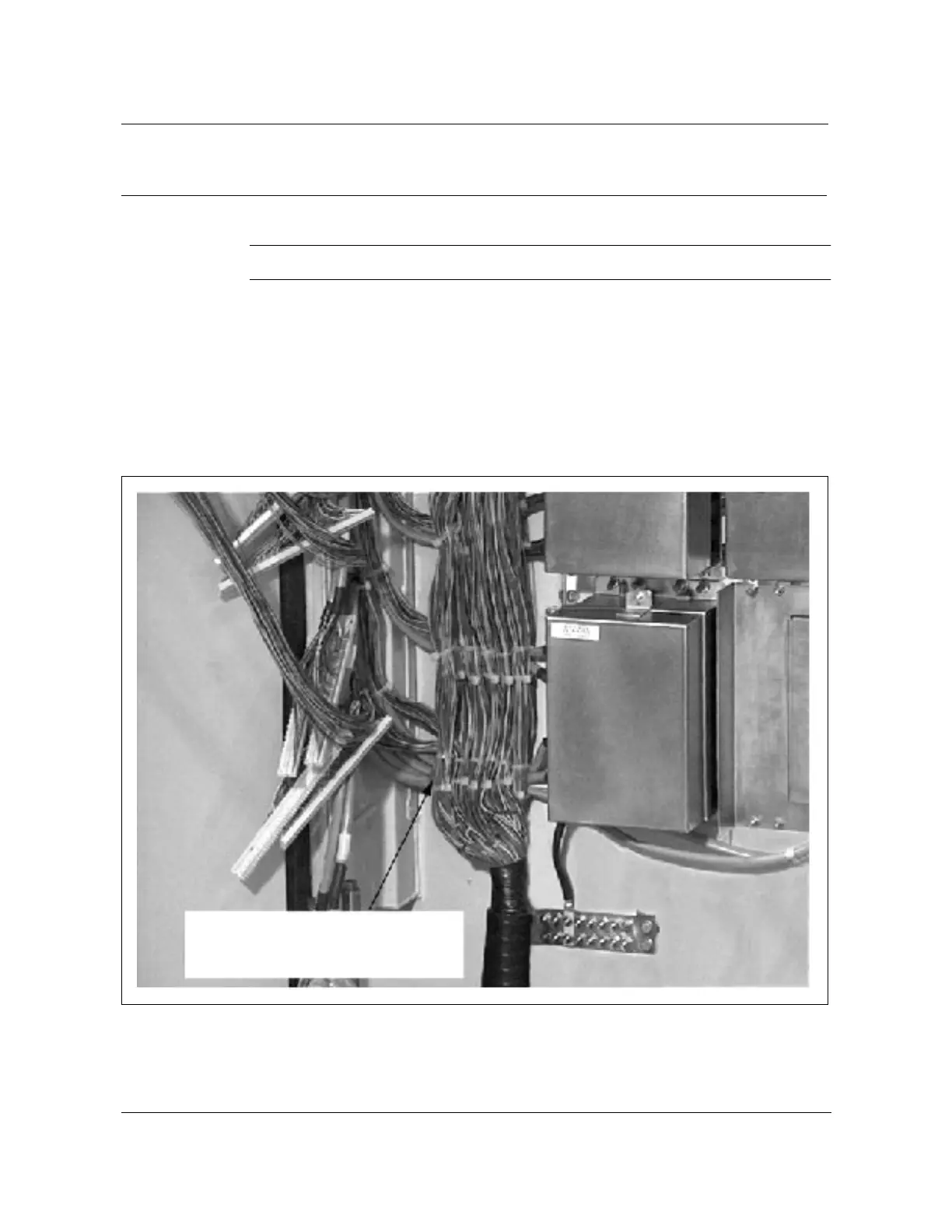

Figure 6-17
Tie wrap binder groups to the ladder supports
—continued—
Tie wrap binder groups
up the ladder supports
