6-38 Routing and terminating the VF cables
AccessNode 323-3001-210 Issue 1.0
Procedure 6-8 (continued)
Connecting the outside plant cable pairs to 710 or 3M MS2 DPM connectors without
cross-connect
Step Action
4 Tie off each binder group with its appropriate connector to the ladder
supports. (see Figure 6-18).
5 Wrap the ends with vinyl tape to keep the binder groups organized until you
are ready to splice.
6 Attach the splice connection tool.

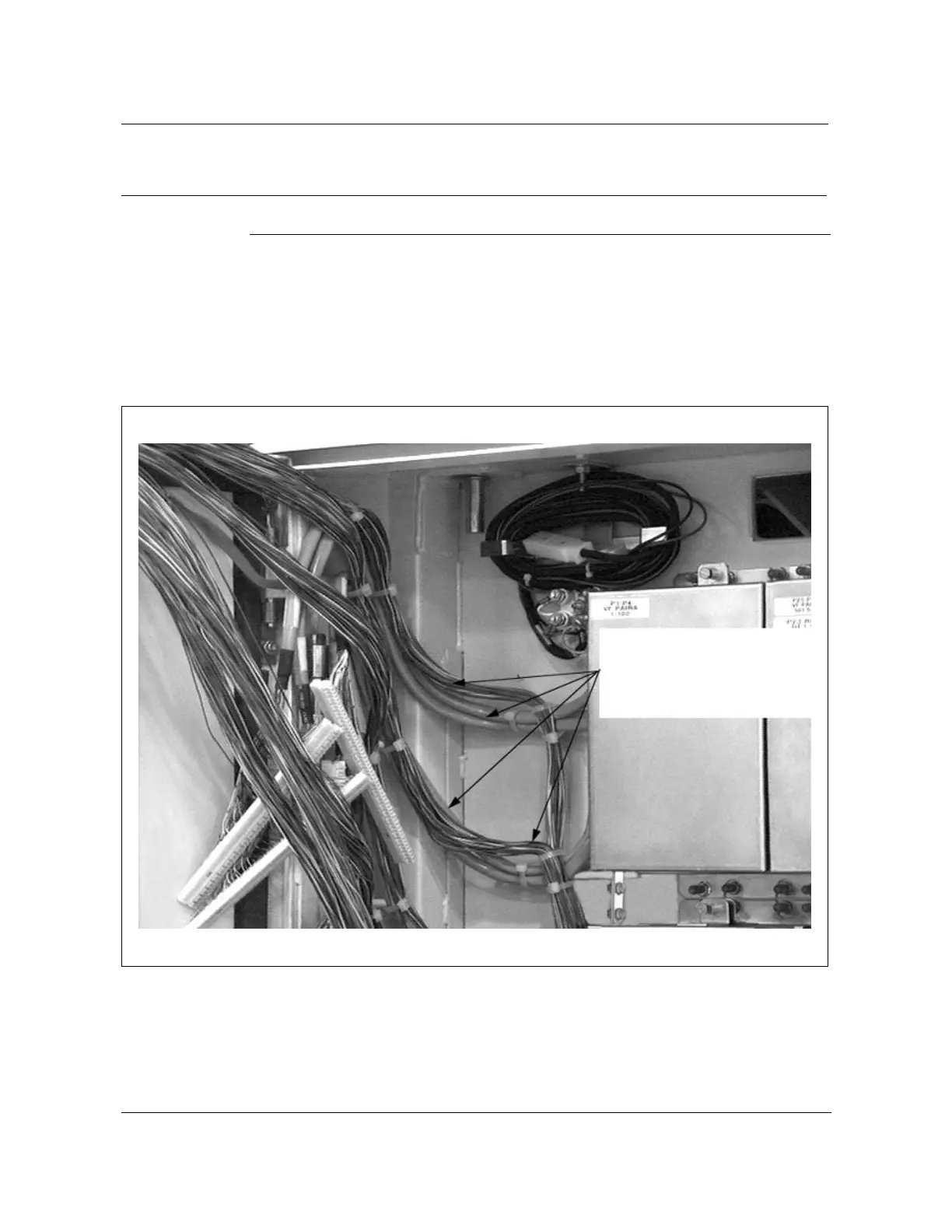

Figure 6-18
Tie off each binder group to Its appropriate connector
—continued—
Tie wrap binders to
appropriate connector
To Next Page
