Nortel SONET AccessNode 800A Series User Manual

Routing and splicing the fiber cable 7-7
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 7-1 (continued)
Routing the OSP fiber cable directly to the FPP
Action
Step Action
1 Route the fiber cable through the hole at the top of the termination
compartment (see Figure 7-1).
2 Secure the cable with tie wraps to the termination compartment cable ladder
on the right-hand side.
Note: Maintain at least the minimum bend radius (3.0 inches/76 mm) for the
fiber cable.

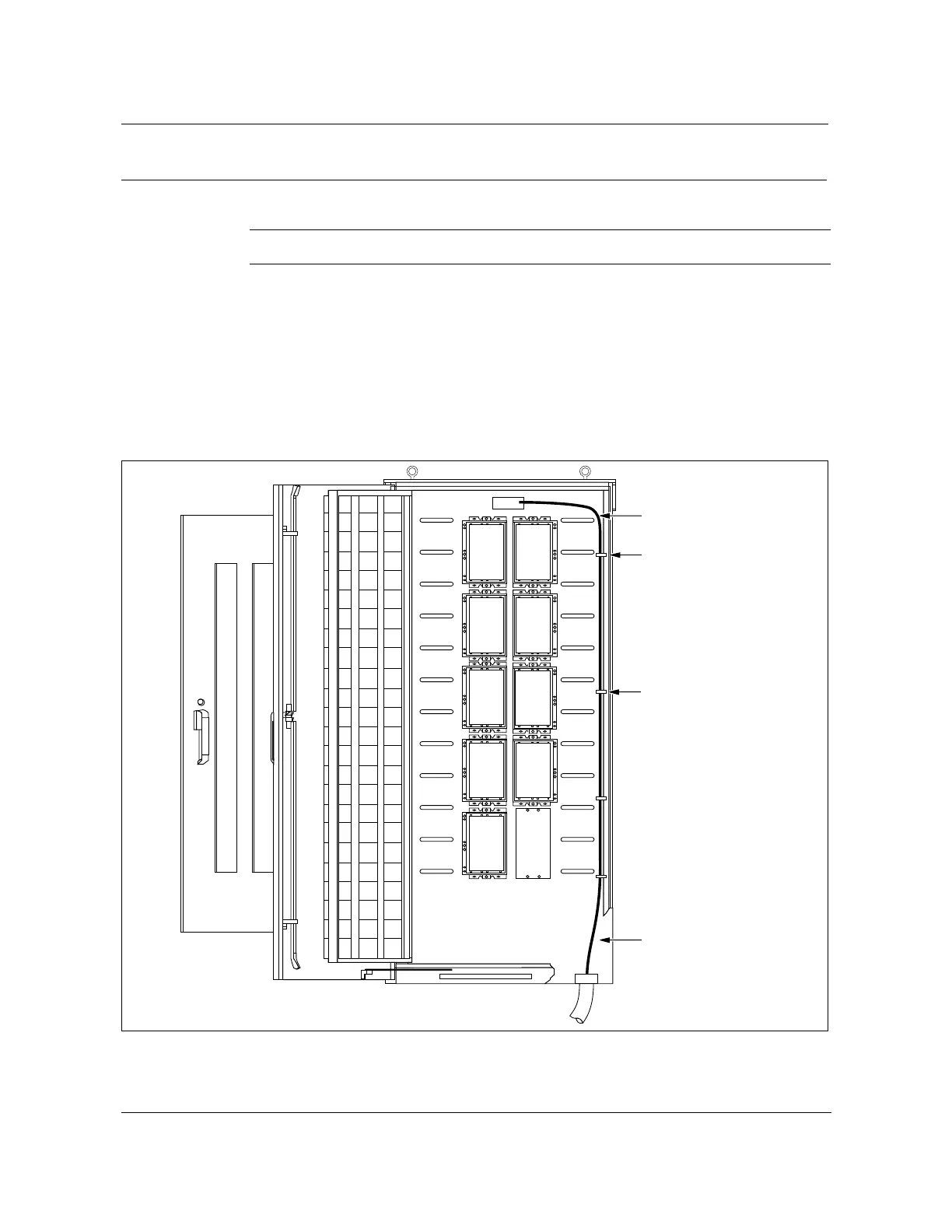

Figure 7-1
Routing of fiber cable to interior cabinet
FW-15126
—continued—
Maintain minimum
bend radius
VF
VF
VF
VF
VF
VF
VF
DS
1
DS
1
FW-15126
Secure against
bulkhead wall
Use tie-wraps
along cable
approximately
as shown
Fiber cable
