Routing and splicing the fiber cable 7-27
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 7-3 (continued)
Routing the OSP fibers in split flex tubing to the FPP
Step Action
9 Dress the tubing back toward the right side of the swing frame.
10 Tie wrap the tubing in place as shown in Figure 7-11 on page 7-25.
11 Route the tubing to the inside wall of the AC compartment (see Figure 7-13).
Note:
Leave a sufficient service loop in the routing to accommodate the swing
fame opening and closing without putting undue pressure or tension on the
tubing.
12 Tie wrap the tubing to the cable tie strips on the inside wall of the AC
compartment as shown in Figure 7-13.
13 Route the tubing around to the rear side of the air baffle to the cable tie strips
above the thermostat.
14 Tie wrap the tubing to the cable hooks in the roof as shown in Figure 7-13.

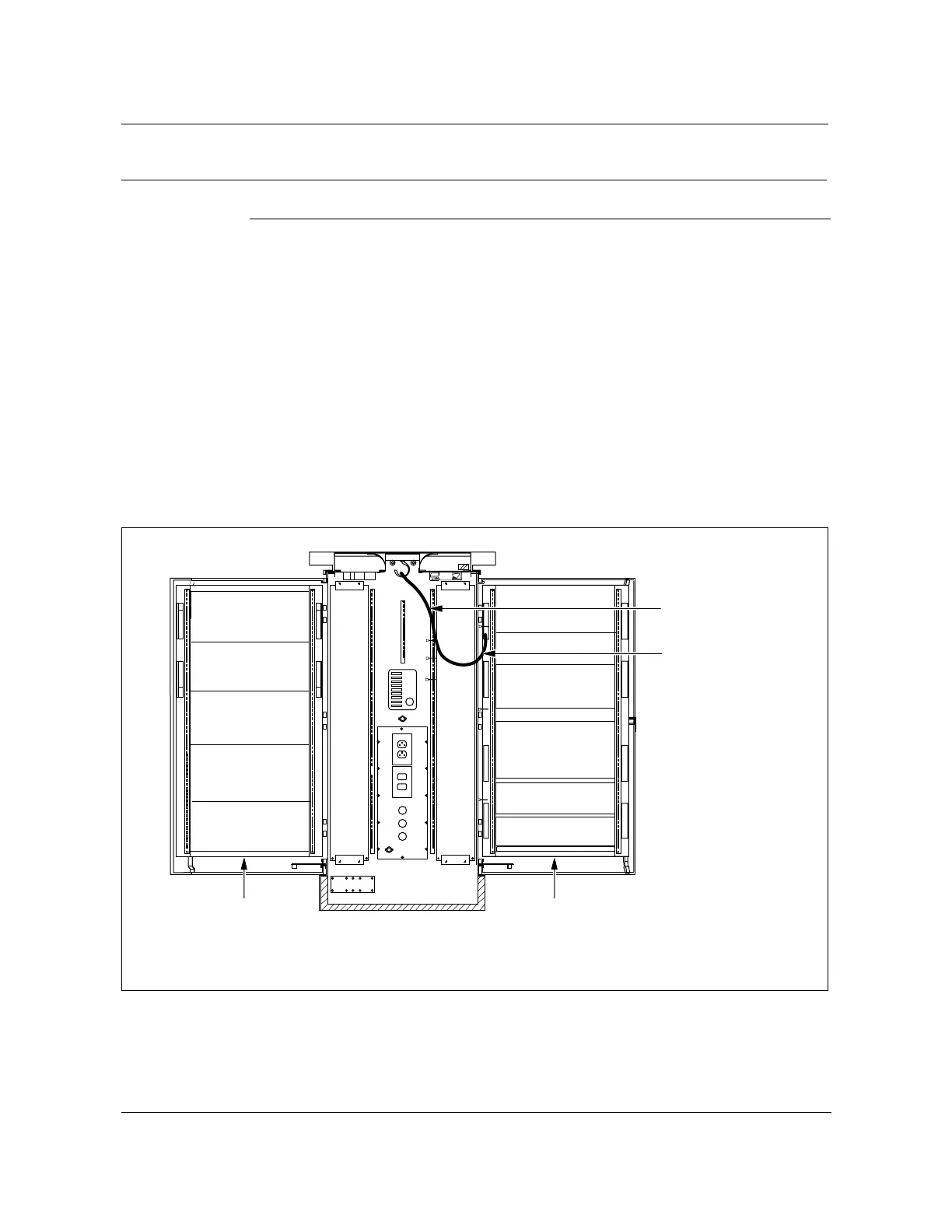

Figure 7-13
Patch cord routing on the interior AC compartment wall
FW-15137
—continued—
Front
Inside view facing AC compartment
Rear
ABM
CDS shelf
CDS shelf
DSX
Battery breaker
panel
DC distribution
shelf
Rectifier
shelf
Left rear equipment
swing frame open
Right front equipment
swing frame open
RPTR
FW-15137
Route the spiral wrap
tubing against
the tie-down strip when
routing to the ABM.
Form the service loop
before entering the swing
frame cabling cutout
