7-28 Routing and splicing the fiber cable
AccessNode 323-3001-210 Issue 1.0
Procedure 7-3 (continued)
Routing the OSP fibers in split flex tubing to the FPP
Step Action
15 Route the tubing through the cable trough or hooks in the ceiling of the
cabinet as per the type of roof assembly as shown in Figure 7-14 or
Figure 7-15.

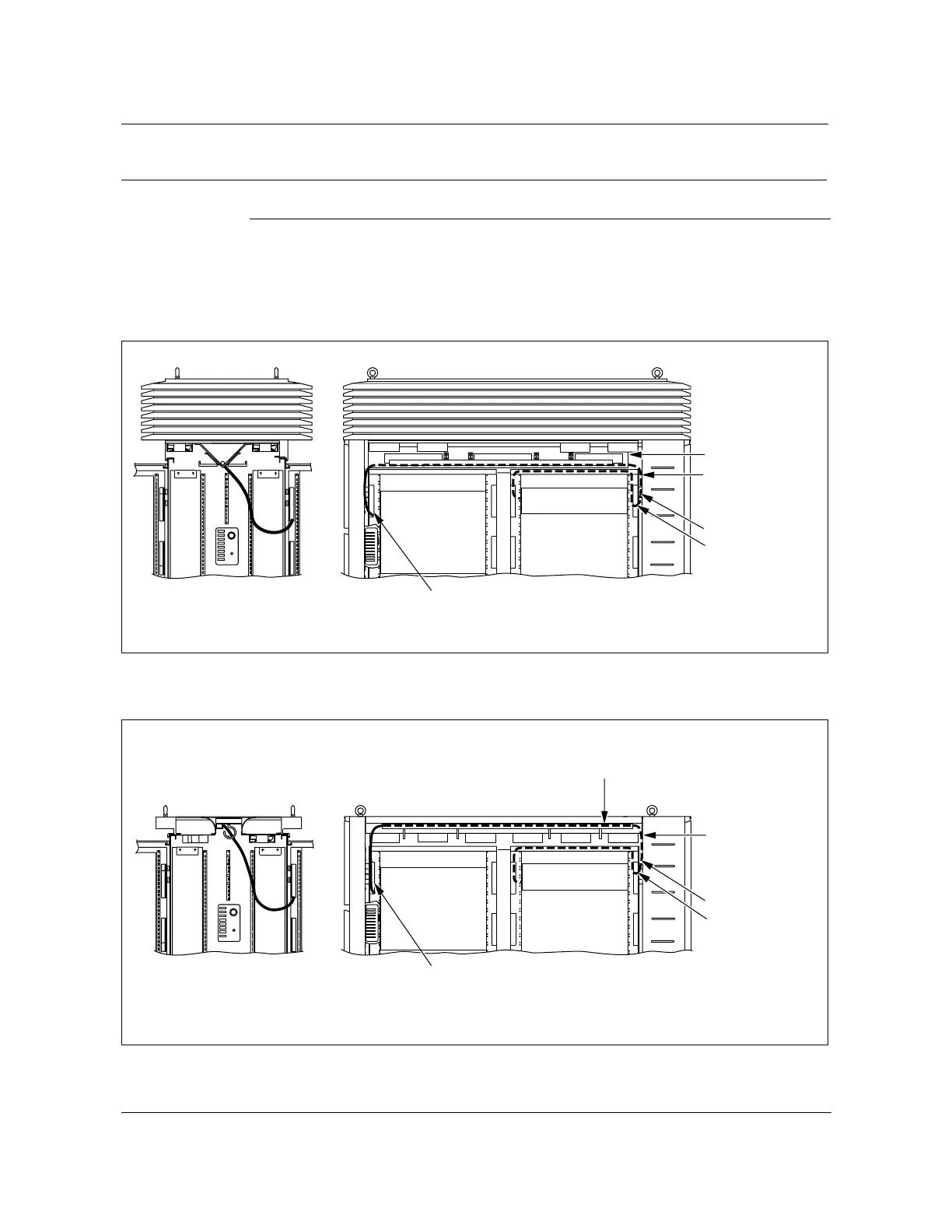

Figure 7-14
Routing the patch cords in the ceiling of the heat exchanger roof assembly
FW-15138
Figure 7-15
Routing the patch cords in the ceiling of the air induction roof assembly
FW-15139
—continued—
Rear view
Maintain at least
minimum bend
radius
3.0 in. (76 mm)
Swing frame cutout
Left inside view
V- trough
TerminationFrontRear AC
FW-15138
Service loop
FPP
ABM
Fiber patch cords
Rear view
Maintain at least
minimum bend
radius
of 3.0 in. (76 mm)
Swing frame cutout
Left inside view
TerminationFrontRear AC
FW-15139
Plastic cable duct
Service loop
Fiber patch cords
FPP
ABM
