Routing and splicing the fiber cable 7-29
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 7-3 (continued)
Routing the OSP fibers in split flex tubing to the FPP
Step Action
16 Route the tubing down the inside wall of the termination compartment as
shown in Figure 7-16.
17 Ensure that the right rear swing frame with the FPP panel installed is in the
fully open position.
18 Form a service loop in the tubing as shown in Figure 7-16.
19 Route the tubing to the top of the swing frame.
20 Form the tubing across the back of the swing frame to the other side of the
FPP.
21 Secure the tubing with tie wraps to the top of the swing frame.

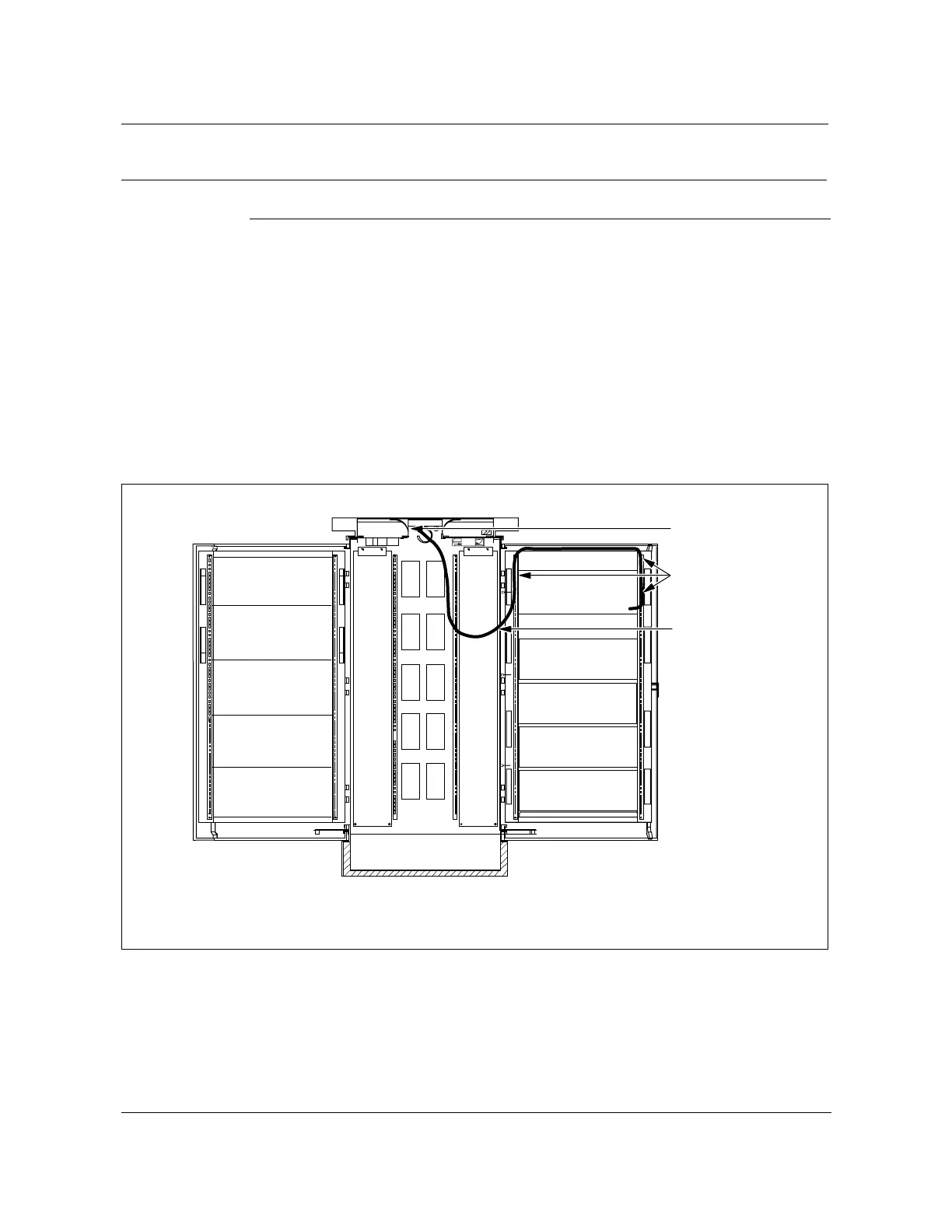

Figure 7-16
Routing the patch cords down the inside termination compartment wall
FW-15140
—continued—
Front
Rear
FW-15140
Inside view facing termination compartment with swing frames open
Batteries of floor
of cabinet
CDS 5
CDS 4
CDS 3
CDS 2
CDS 1
Fiber patch panel
Use split tubing
for routing fibers
(route as shown).
Gently tie wrap the
split tubing to the
cable tie strips when
routing to the FPP.
Battery
shelf
Battery
shelf
Battery
shelf
Battery
shelf
Plastic cable duct
To Next Page
