Routing and splicing the fiber cable 7-31
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 7-3 (continued)
Routing the OSP fibers in split flex tubing to the FPP
Step Action
25 Route the tubing and patch cords into the cable tie strap.
26 Secure the tubing into the tie strap.
27 Route the patch cords into the fiber trays as shown in Figure 7-18.
Note:
Form the patch cords in the fiber management system as per the
manufacturer’s recommendations if you are using a system other than the
FPP.
28 Connect the patch cord connectors to the FPP.
29 Connect the patch cords to the OC-3 and OC-12 cards in the ABM shelf.
30 Close the ABM shelf.

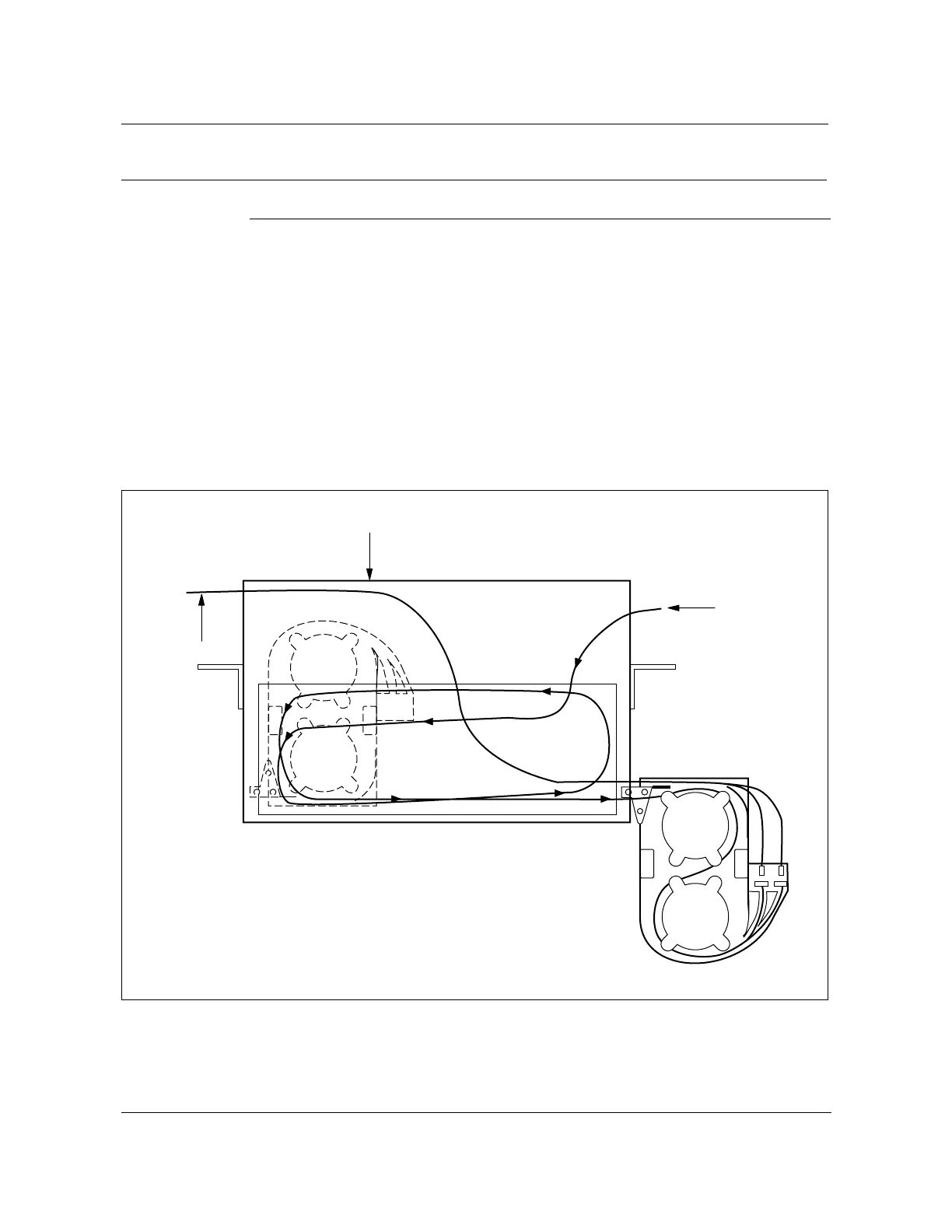

Figure 7-18
Routing the patch cords in the fiber trays of the FPP
FW-15142
—end—
Patch cords
OSP pigtail
Fiber patch panel
Rear
FW-15142
