Cabinet maintenance operations 12-9
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 12-1 (continued)
Replacing the batteries
Step Action
2 Disconnect the battery harness for the string to be replaced from the battery
interface connector field (see Figure 12-1).

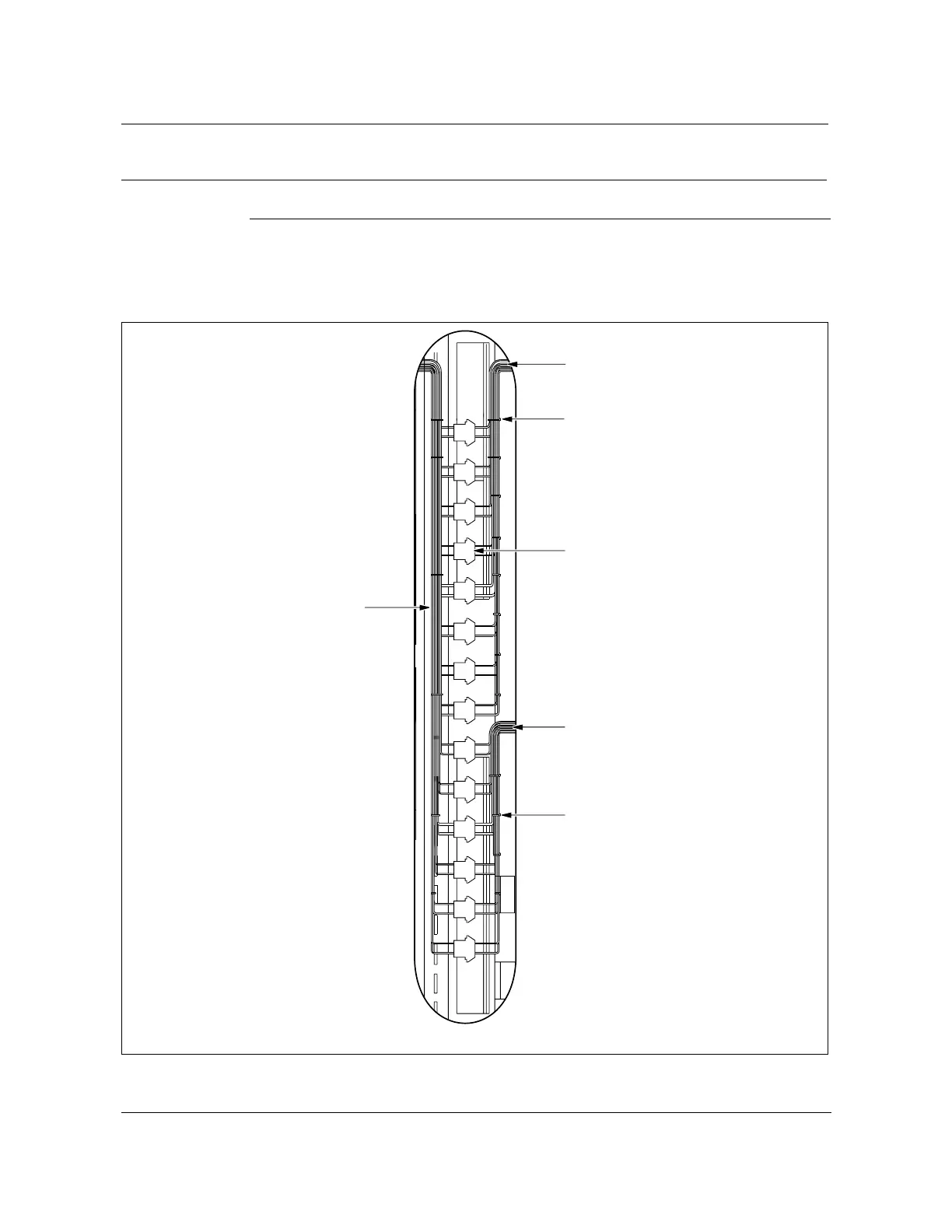

Figure 12-1
Battery interface connector field
FW-15155
—continued—
Battery
interface
connectors
Battery cables
to strings 1-8
Battery cables
to strings 9-14
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Tie wraps
(4 places)
NT1W64AA
battery interface
cable to battery
breaker panel
Tie wraps
(8 places)
FW-15155
