Cabinet maintenance operations 12-33
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 12-7 (continued)
Connecting emergency standby power - ac load box option with mechanical interlock

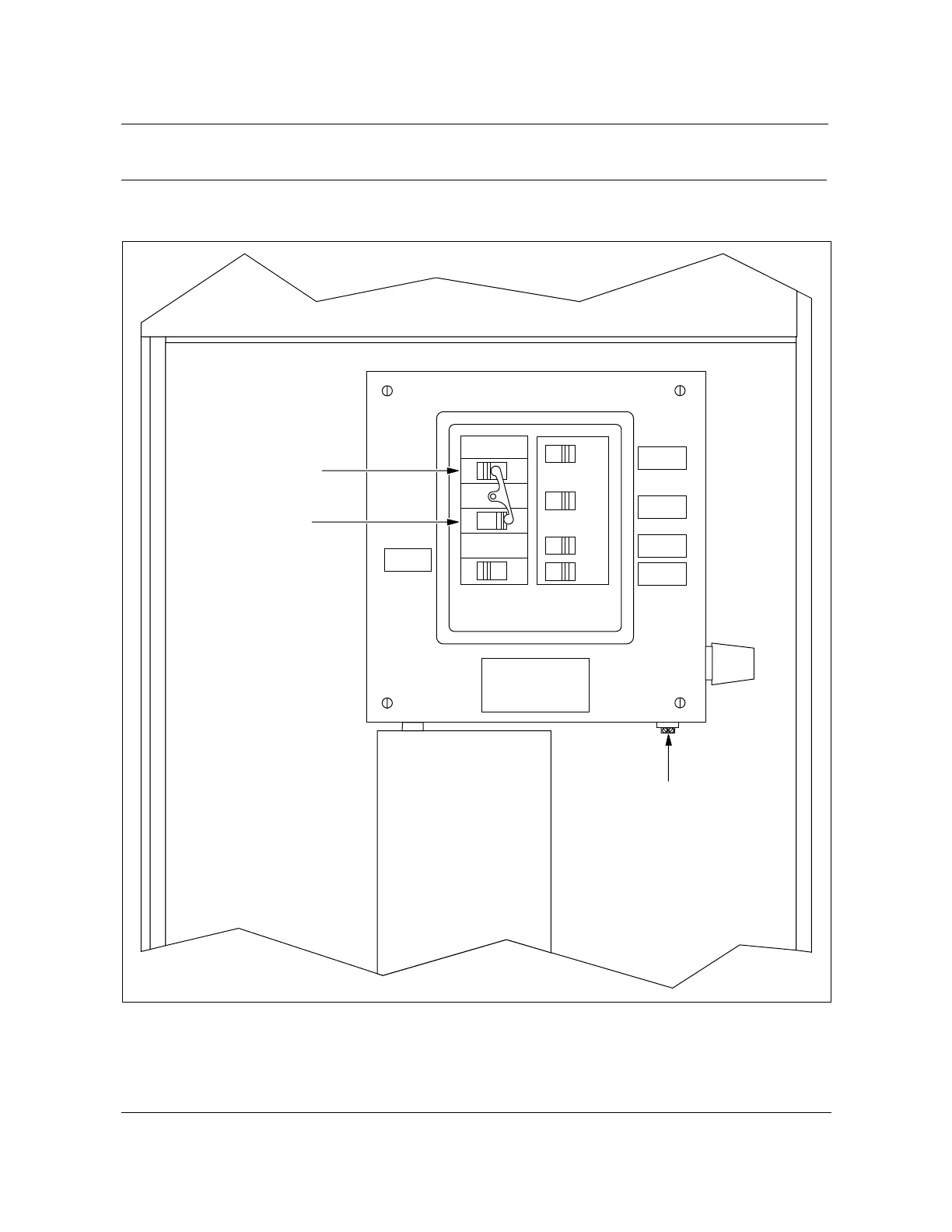

Figure 12-5
AC load cover
FW-15159
—continued—
CB1 (20A)
RECT-1
CB2 (20A)
RECT-2
CB3 (20A)
RECT-3
CB4 (15A)
HEATERS
CB5 (10A)
ACC/GFCI
Main
Emergency
To ground bar
OFF
ON
OFF
ON
FW-15159
