Nortel SONET AccessNode 800A Series - Page 33

Installing the pad 1-17
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 1-1 (continued)
Preparing the poured-in-place cabinet mounting pad

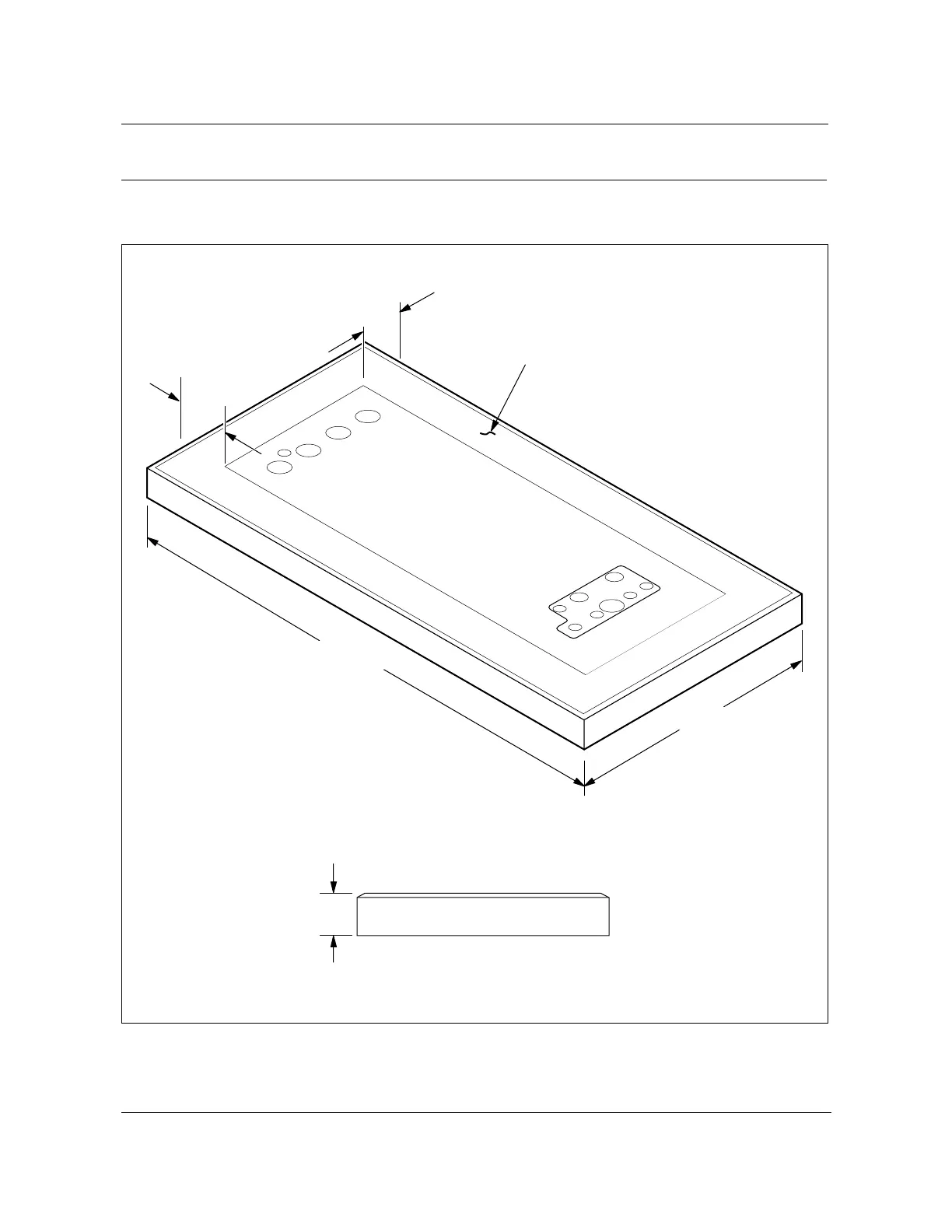

Figure 1-9
Power pedestal (ac), flat, narrow concrete pad (reference drawing P0743185)
FW-15108
—continued—
50.00 in.
(127.00 cm)
End View
10.00 in.
(25.40 cm)
100.00 in.
(254.00 cm)
9.00 in.
(22.86 cm)
FW-15108
Flat
surface
Sloped surface
all around
10.00 in.
(25.40 cm)
