1-18 Installing the pad
AccessNode 323-3001-210 Issue 1.0
Procedure 1-1 (continued)
Preparing the poured-in-place cabinet mounting pad
Figure 1-10

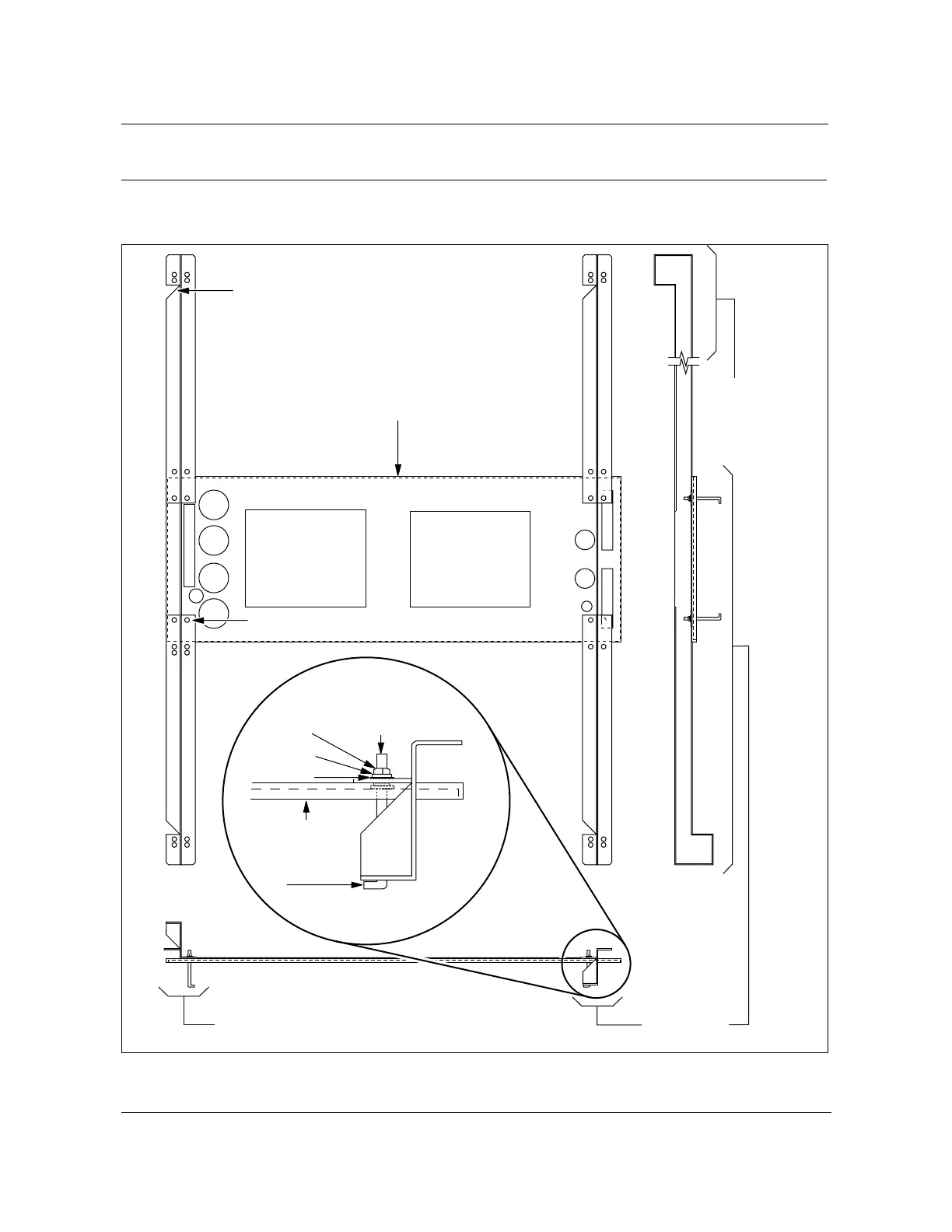

Load box, wide anchor plate assembly (reference drawing EV7A52FA)
FW-15109
—continued—
Front
Anchor plate
Cross rail angle
Power end
Anchor
bolt
Thread
protector
Flat washer
Cross rail
angle
Hex nut
Lock washer
Anchor
plate
Illustration of
"Elevated" pad
set-up
Illustration of
"Flat" pad
set-up
Illustration of
"Flat" pad
set-up
FW-15109
Anchor bolt
