Installing the pad 1-21
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 1-1 (continued)
Preparing the poured-in-place cabinet mounting pad
Figure 1-13

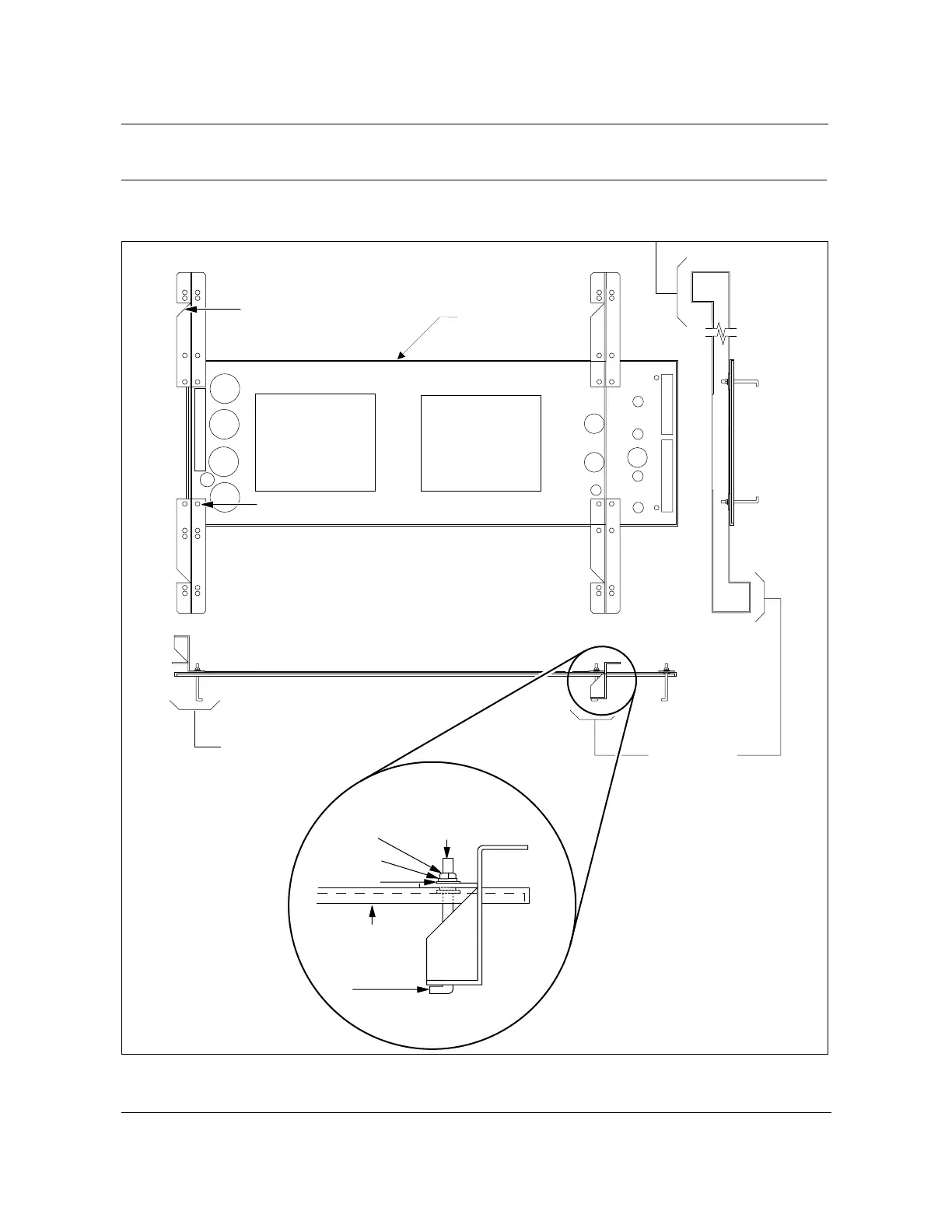

AC pedestal, narrow anchor plate assembly (reference drawing EV7A52DA)
FW-15112
—continued—
Front
Anchor plate
Power end
Illustration of
"Elevated" pad
set-up
Illustration of
"Flat" pad
set-up
set-up
Cross rail angle
FW-15112
Anchor
bolt
Thread
protector
Flat washer
Cross rail
angle
Hex nut
Lock washer
Anchor
plate
Anchor bolt
