Breaker interface feed wiring

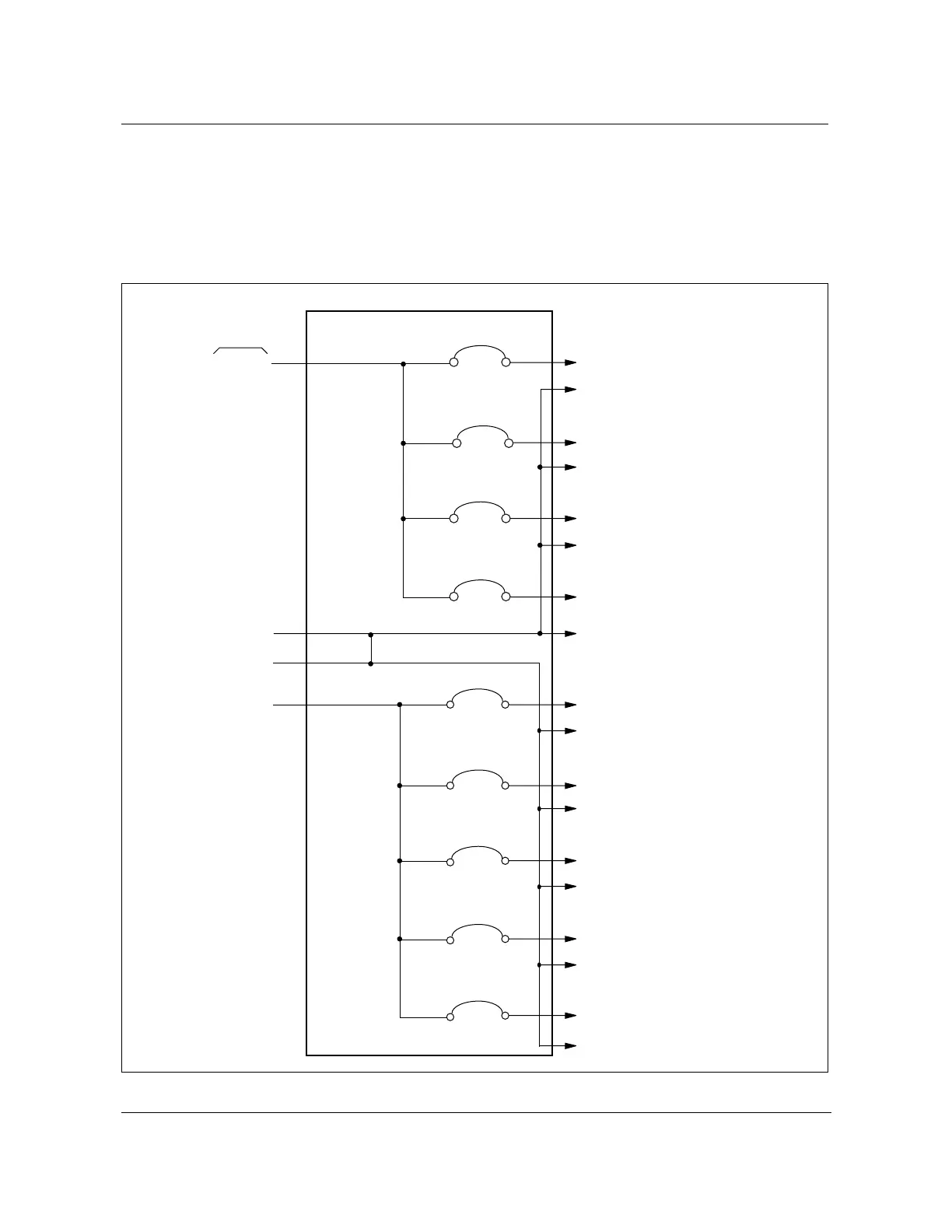

Figure 13-19 below through Figure 13-21 on page 13-31 show the BIP dc
power distribution wiring diagram for battery inputs from the dc distribution
shelf circuit breakers.
Figure 13-19
BIP dc power distribution feeds 1 and 2
FW-15184
1
2
1
1
1
2
2
2
15A
15A
15A
15A
CDS 2 power
Batt and ret to CDS 2
power converters
CE A power
Batt and ret to ABM
A plane I/O card and diode
or'd CE cards
CDS 4 power
Batt and ret to CDS 4
power converters
CDS 6 power
Batt and ret to CDS 6
power converters
BIP
BIP1
-48V, 30A
Ret 1
Ret 2
From
DC distribution
shelf
Batt 1
BIP 1
(BR)
BIP 2
(BR)
-
+
-
+
-
+
-
+
FW-15184
1
2
1
1
1
1
2
2
2
2
15A
15A
15A
15A
15A
CDS 1 power
Batt and ret to CDS 1
power converters
CDS 3 power
Batt and ret to CDS 3
power converters
CDS 5 power
Batt and ret to CDS 5
power converters
CDS 7 power
Batt and ret to CDS 7
power converters
CE B power
Batt and ret to ABM
B plane I/O card and diode
or'd CE cards
BIP 2
-48V, 30A
Batt 2
-
+
-
+
-
+
-
+
-
+
