13-42 Cabinet and equipment wiring and cabling

AccessNode 323-3001-210 Issue 1.0

BIP control cable wiring

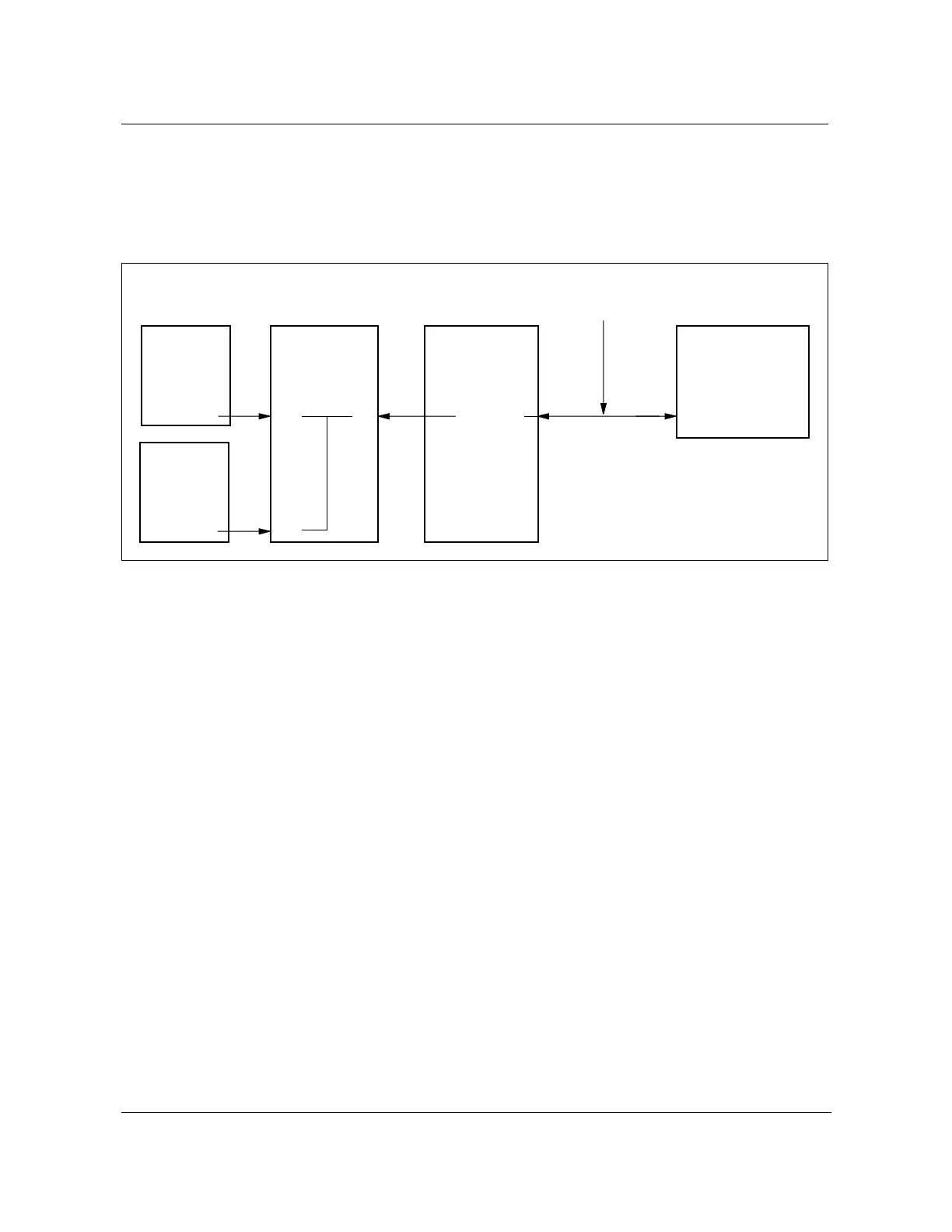

Figure 13-30 shows the BIP Control cable wiring diagram from the ABM shelf

SIL J13 connector.

Figure 13-30

SIL J13 BIP control cable (BIP CTL) block diagram

FW-15204

J20

BIP

BIP control cable

NT1W85AA

ACC TST

NT4K54AA

ABM

backplane

NT4K20AA

SIL card

NT4K50AA

MIC

NT4K53AA

J19 J0

Filter

J13

CE-1

FW-15204
