Installing the cabinet 2-9
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 2-1 (continued)
Unpacking the cabinet
Step Action
7 Remove the shipping brackets located at the top and bottom of the swing
frames in the electronics compartment as shown in Figure 2-2.
Save the shipping bracket hardware for later re-installation.
Note:
To re-install the shipping brackets, see Procedure 11-3 on page 11-7,
“Installing the shipping brackets”.

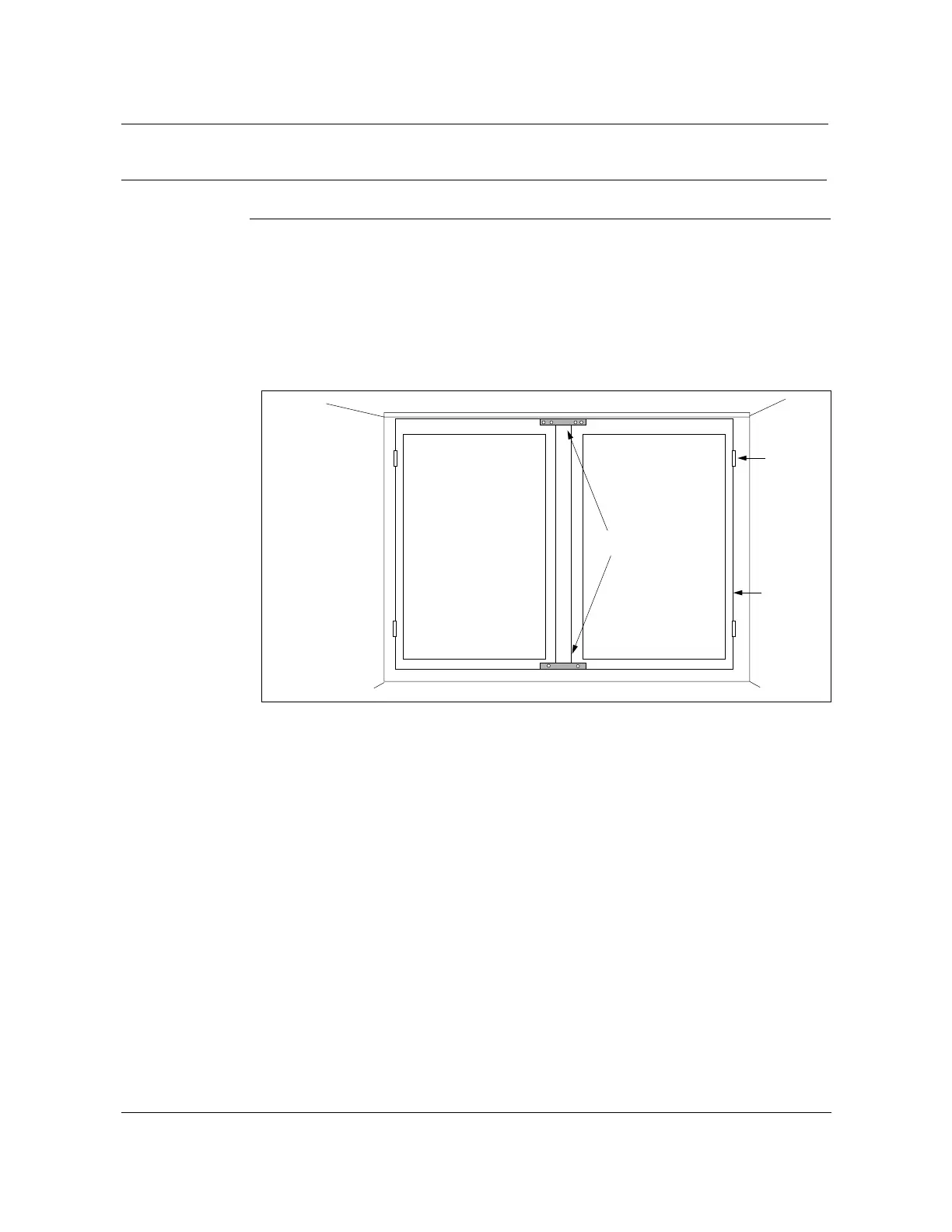

Figure 2-2
Shipping brackets on swing frame
8 Open the swing frames and remove the following items from the electronics
compartment:
• sealant kit
• Durometer rubber pads for the ac pedestal enclosure (if installed)
• all conduit cap plugs mounted in the bottom conduit entrances
9 Close the swing frames and the cabinet doors.
—end—
Shipping
brackets
Hinge
Swing
frame
