Installing the cabinet 2-33
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 2-5 (continued)
Enabling the door locks

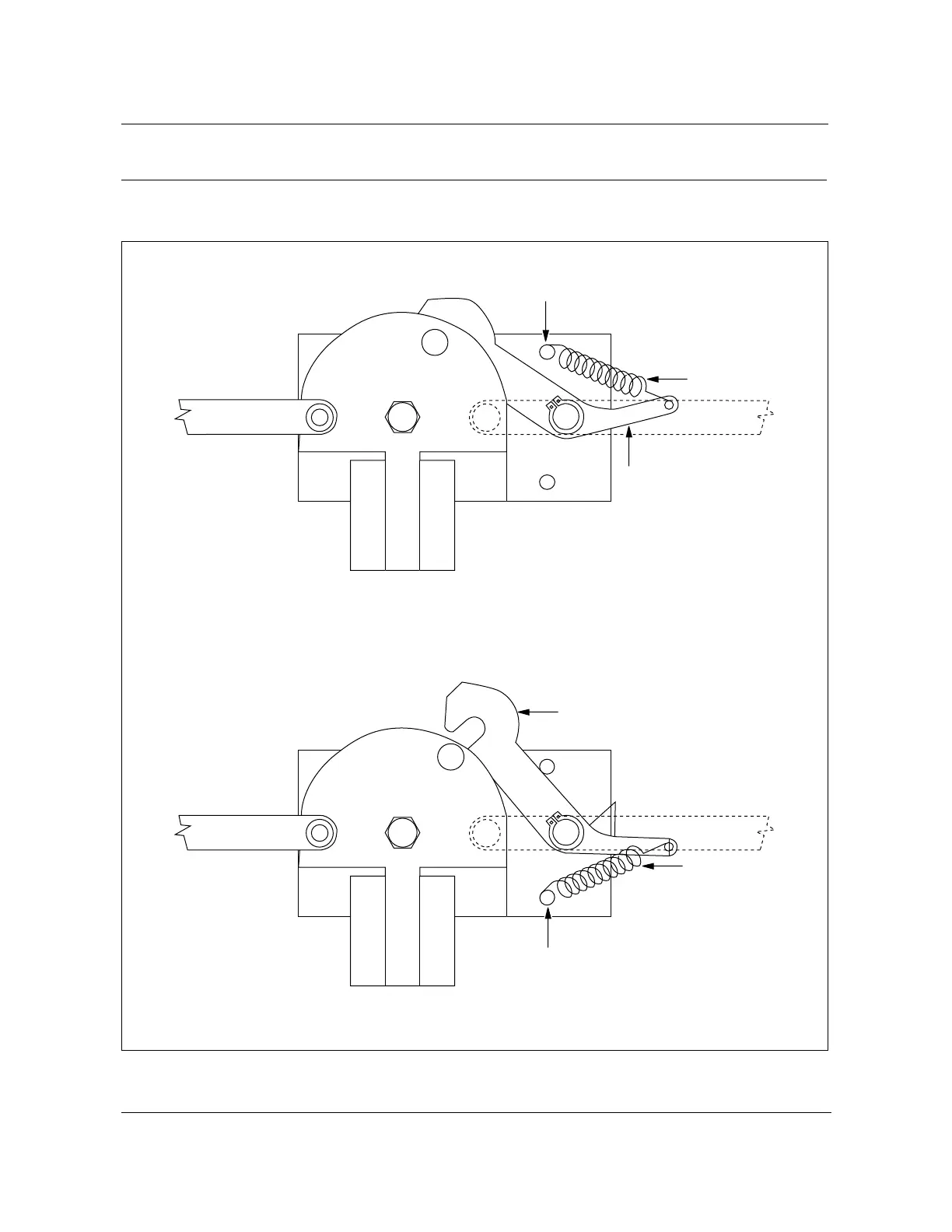

Figure 2-16
Enabling the door locks
FW-15118
—end—
Snap end
of spring over
boss.
Spring
Spring
Pawl
Snap end
of spring over
boss.
Pawl
Lock in the enabled position - key lock
(Spring on same side as pawl)
Lock in disabled position - pad lock
(spring of opposite side from pawl)
FW-15118
