2.3 500 Series Manifold Stations
Z-Board
™
plug together technology connects all valve solenoids to the valve coil output driver board, located in the valve
adapter. There is a maximum of 128 coil outputs available on the complete manifold assemblies. The 128 available outputs are
accessed on the 501 series valves utilizing 4 station manifolds and on the 502 and 503 series utilizing 2 station manifolds.

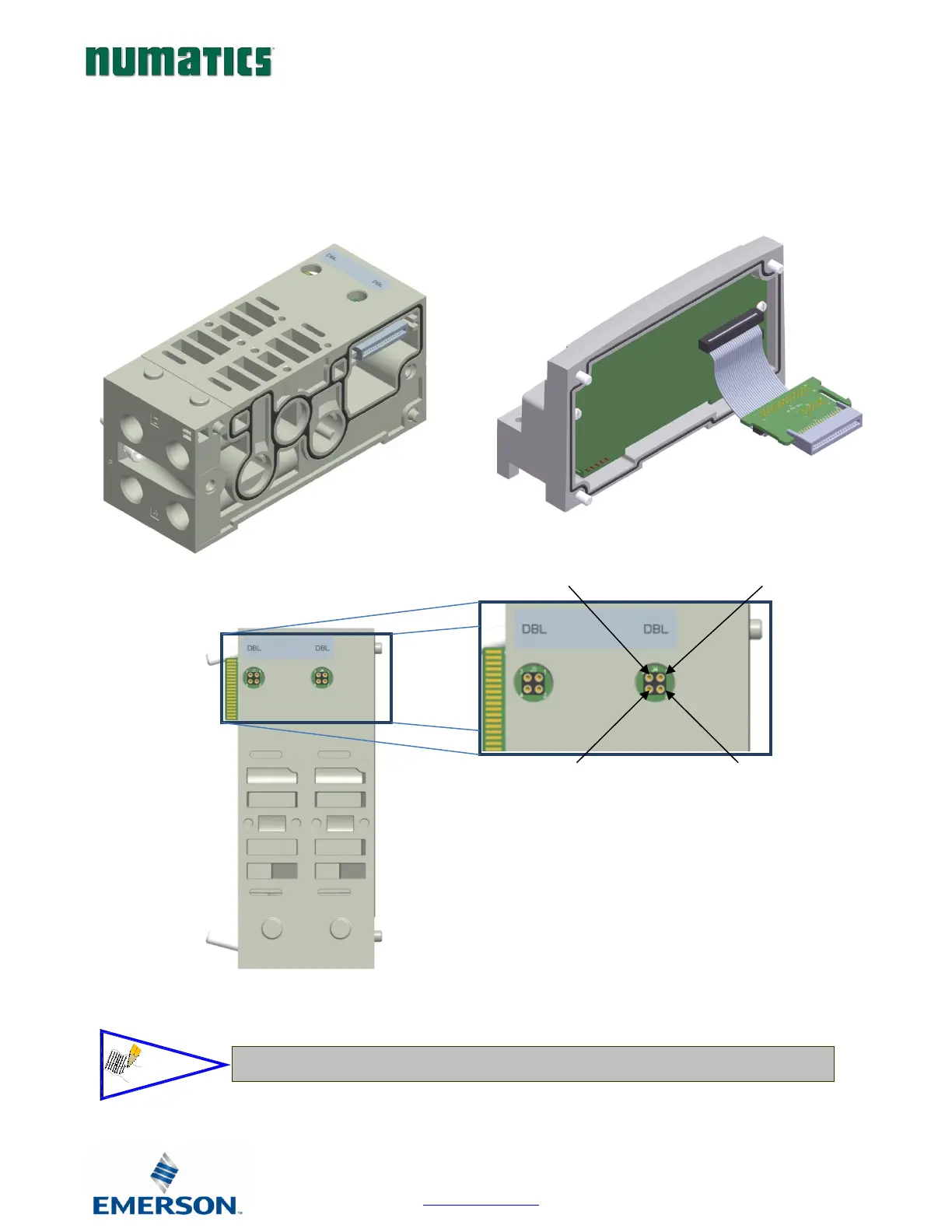

Solenoid Coil Connections using Z-Board™ Technology for 50x valve series
A single solenoid valve’s coil is always on the “14” end.
14 Solenoid,
Pin No. 1
Common,
Pin No. 4
12 Solenoid,
Pin No. 2
Not Used,
Pin No. 3
NOTE!
