14.2 G3 configuration for RSLogix 5000 (Numatics G3 EDS File)
Download the EDS file for the 240-325 G3 Ethernet DLR module (part no. 240-325) at the link below.
https://www.asco.com/en-us/Pages/fieldbus-technical-document-search.aspx

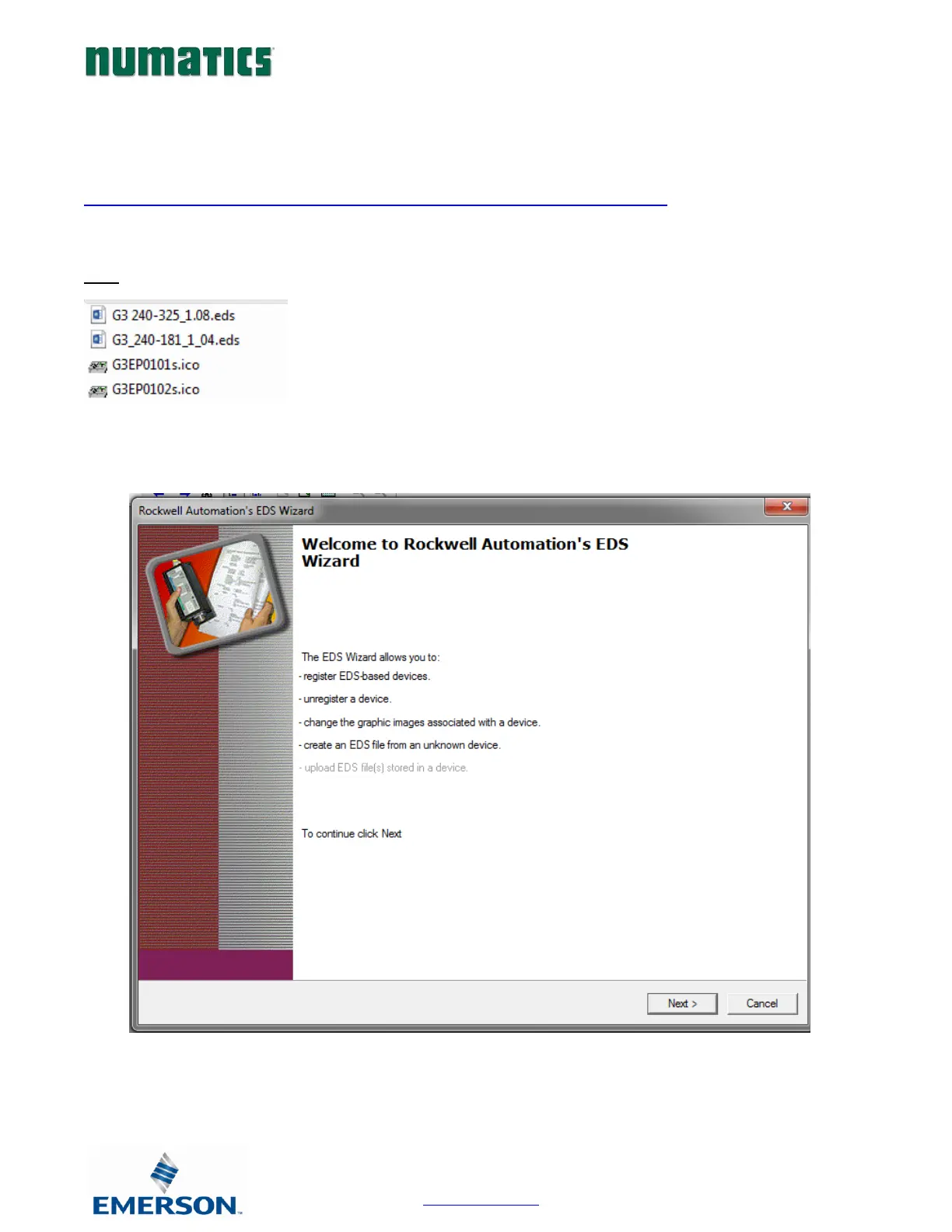

Extract the files from the folder (EDSG3EDSV18_1.zip).
Files
From RS Logix or Studio 5000 run the “EDS Wizard” and install both version 1.04 and 1.08 EDS
files.
