4.4 Electrical Connections

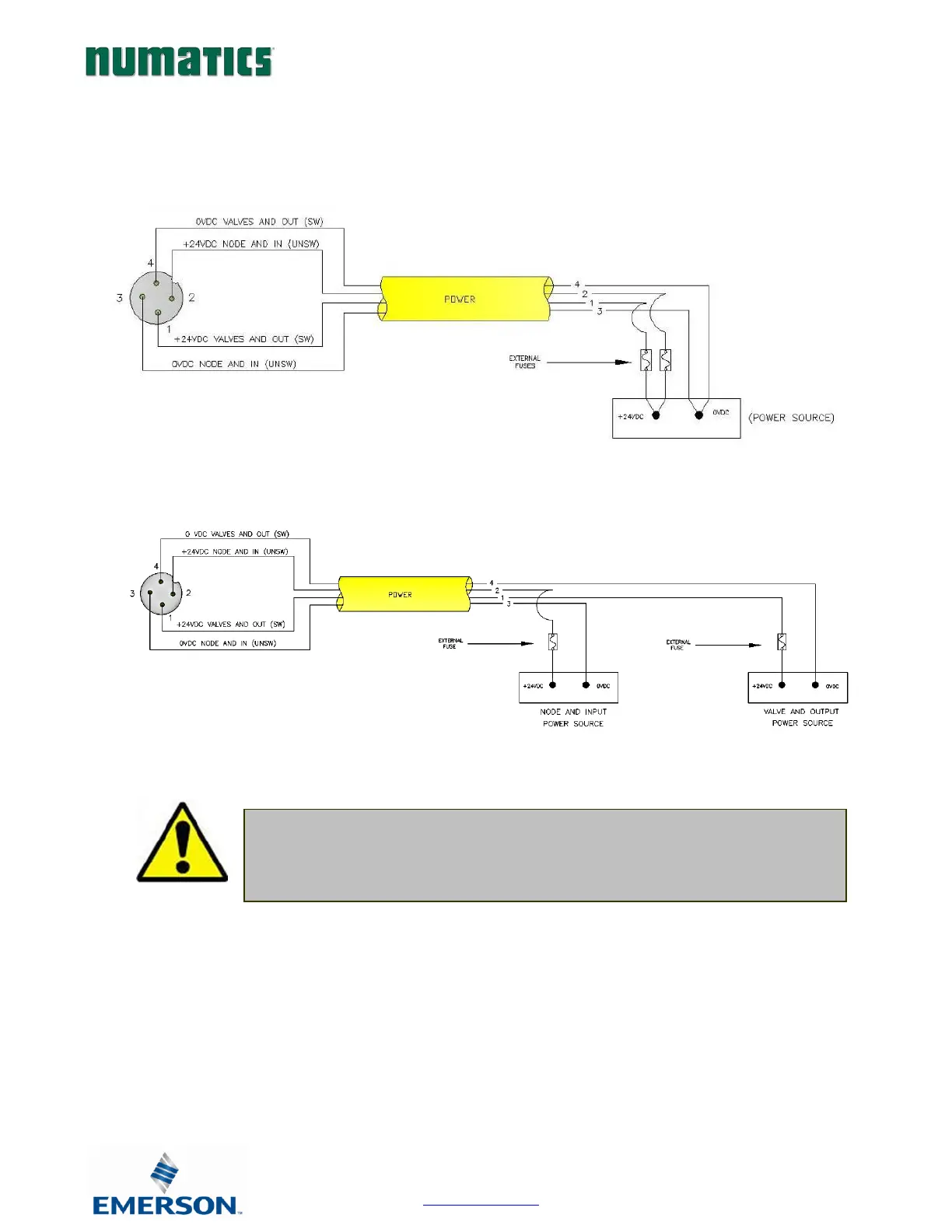

Power Supply Example (Non-isolated commons)
Power Supply Example (Isolated commons)
Power Connector Wiring Diagram
• Please see page 25 for external fuse sizing guide.
• When using molded connector power cables, Do Not rely on wire colors for Pin-
Out. Always use pin number references.
• The combined draw of the +24VDC Valves and Outputs and +24VDC Node and
Inputs pins cannot exceed 8 Amps, at any given moment in time.
CAUTION
