5.12 Advanced Settings – Comm. Format
This allows setting a specific data format for I/O data.
Comm. Format Settings
1. Press the SET button to enter the ADVANCED
SETTINGS menu.
2. Press the NEXT button to scroll to the ADVANCED
MENU / COMM. FORMAT
3. Press the SET button to enter the COMM. FORMAT
MENU
4. Press the SET button, the current state of the
parameter is highlighted.
5. Press the SET button to change this parameter
Press the NEXT button to scroll the choices for the
desired COMM. FORMAT
a. SINT (8 Bit)
b. INT (16 Bit)
c. DINT (32 Bit)
d. RETURN (this will return you to the main
menu)
6. Press the SET button to confirm your choice
Press the NEXT button to select Yes or No to accept
the selection
Press the SET button to confirm your choice
a. Selecting No will bring you back to the
main COMM. FORMAT menu.
b. Selecting Yes will take you to the following
save settings menu.
Save Settings Steps
7. Press the NEXT button to select either NOW or
LATER.
Press the SET button to confirm your choice.
a. Selecting NOW will cause the node to
reset and apply the new setting
b. Selecting LATER will cause the new COMM.
FORMAT selection to be saved in memory,
you must Accept the saved changes before
your next power cycle otherwise they will
be lost.

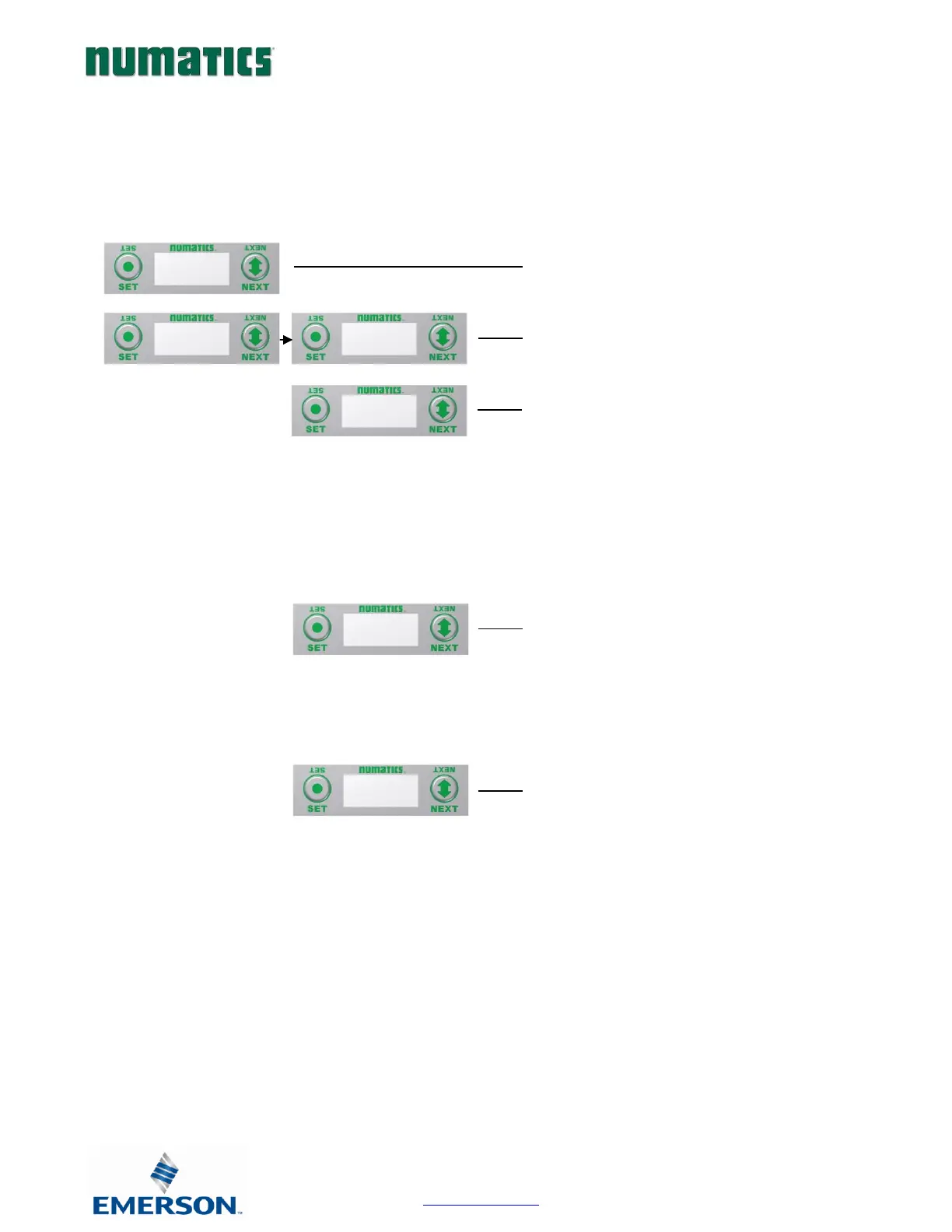

ADVNCED MENU
COMM. FORMAT
COMM. FORMAT
SINT
COMM. FORMAT
SINT
SAVE SETTINGS
NOW LATER
ACCEPT
INT Y N
ADVANCED
SETTINGS
