7.1 Sub-Bus Distribution Modules
• Used only when distributing the Sub-Bus to another assembly is required.
• SUB-BUS OUT - 5 pin M12 female communication connector.
• Used to distribute the Sub-Bus to the next Sub-Bus assembly.
• Carries 24 VDC power for electronics of the next module.
• AUX. POWER OUT - 4 pin M12 female aux. power connector.
• Optional connection.
• Used as a convenience way to distribute the power connection to the next
Sub-Bus assembly.

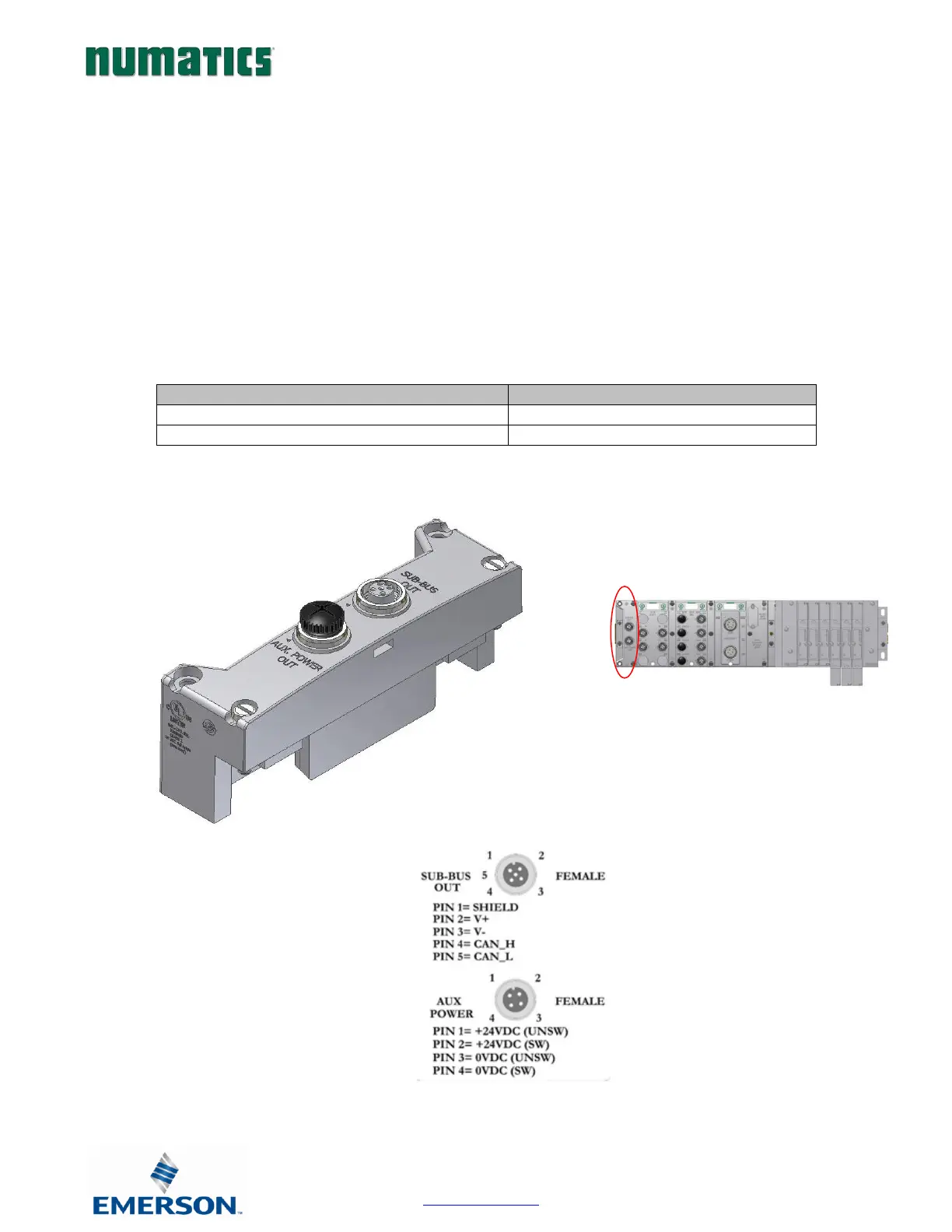

SUB-BUS OUT Module
Description
Replacement Part Number
Sub-Bus OUT module with Din Rail Mounting
240-244
Sub-Bus OUT module without Din Rail Mounting
240-183
