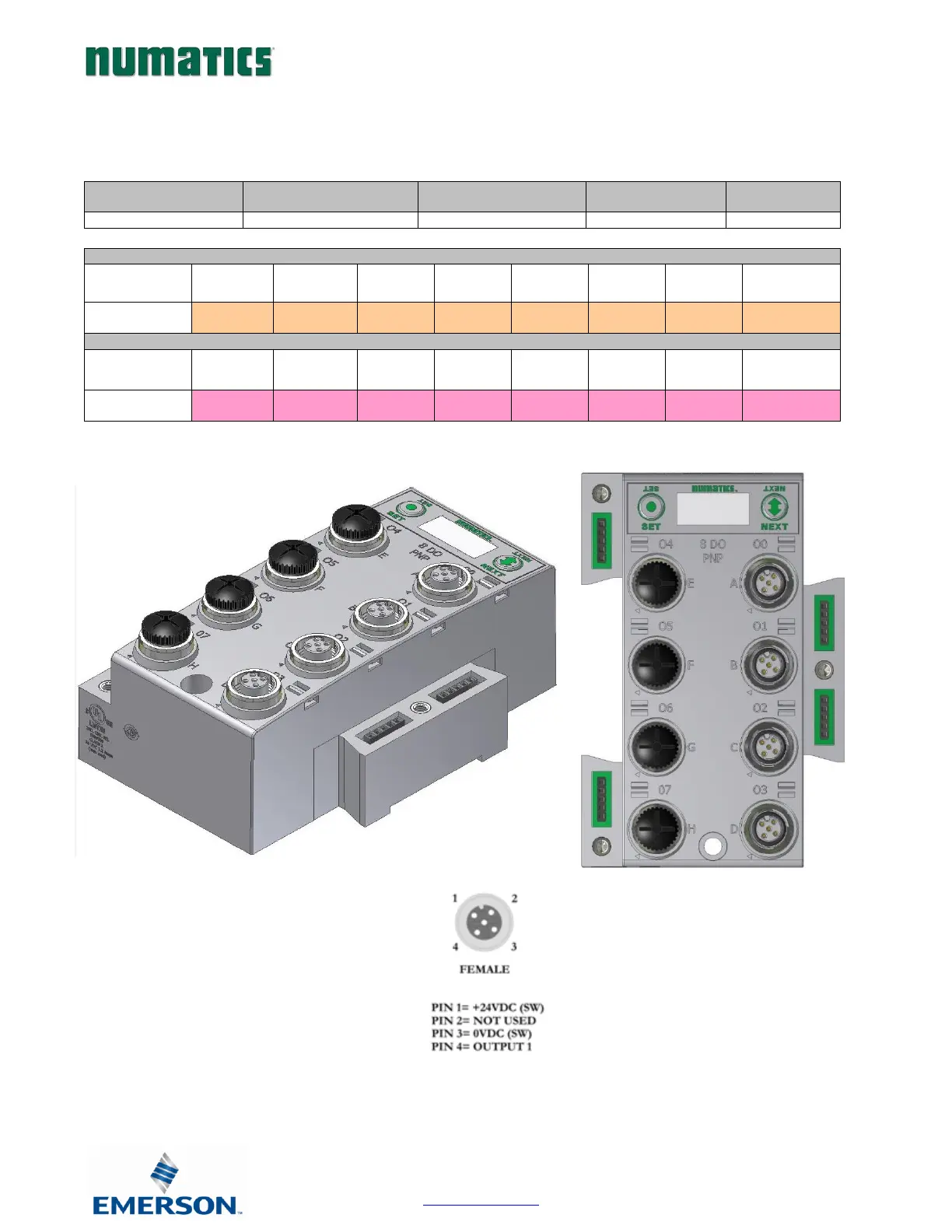

8.5 Digital Output Modules
One Digital Output per Connector - M12 Female Modules
Module
Part No.
I/O Type
Short Circuit Protection
Short Circuit
Protection Status Bits
Output Points
240-208
PNP (Sourcing)
YES – Visual
YES (8) – Optional
8
Output Mapping
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
(Required)
Output 7
Output 6
Output 5
Output 4
Output 3
Output 2
Output 1
Output 0
Input Mapping
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
Output 7
Status
Output 6
Status
Output 5
Status
Output 4
Status
Output 3
Status
Output 2
Status
Output 1
Status
Output 0
Status
