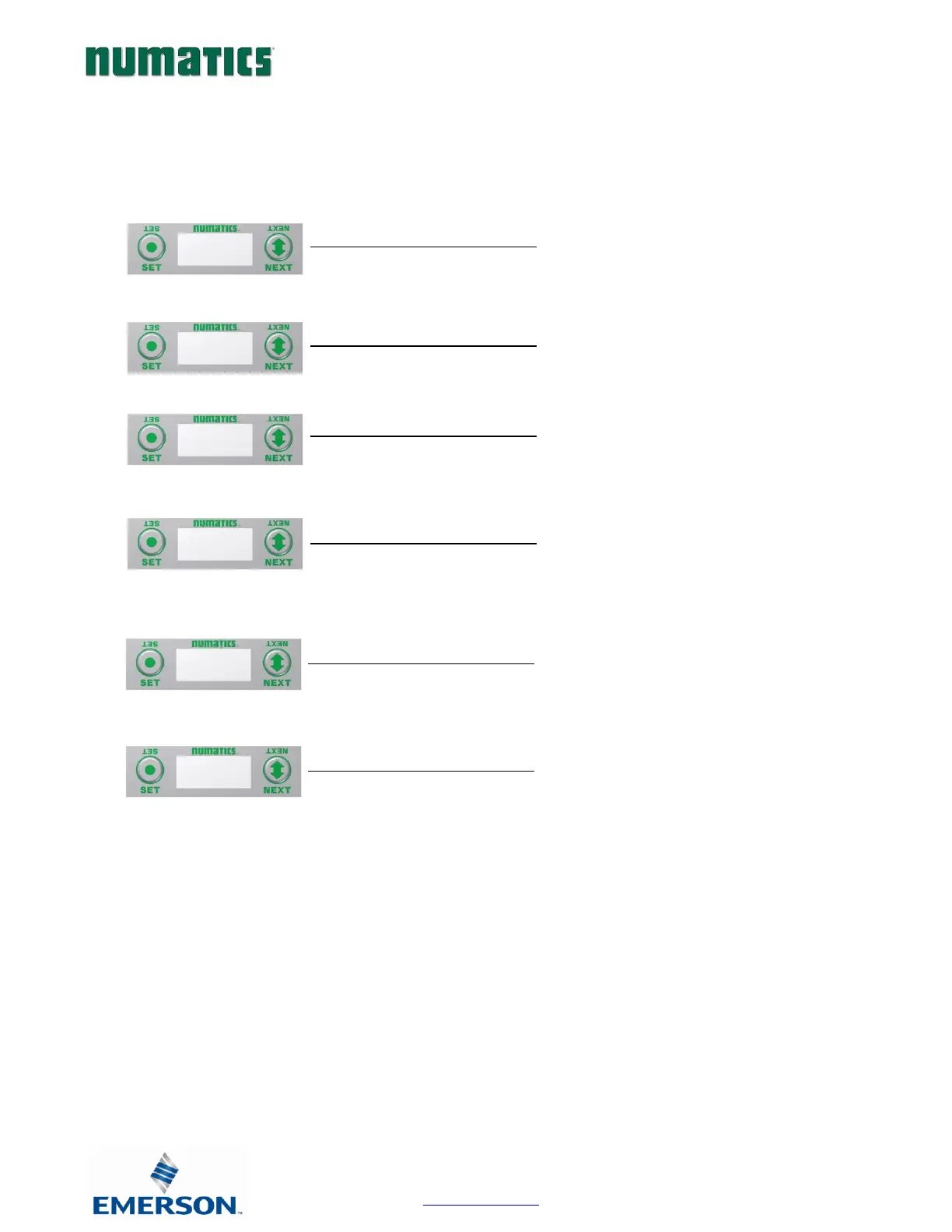

5.20 Error Messages
The following are automatic error messages that are displayed when specific faults occur during operation:
SUB-BUS SHORT
Displayed when a short circuit condition is
detected on the Sub-Bus power lines
Displayed when a short circuit condition is
detected on a valve coil
SHORTED COIL
NO. X
Displayed when a Sub-Bus module that had been
previously installed becomes absent from the
configuration
Displayed when +24 VDC on Pin No. 1 and
No. 4 (Valves and Outputs) is not present or
below 22 VDC
Displayed when +24 VDC on Pin No. 2 and
No. 3 (Node and Inputs) is below 19 VDC
MISSING MODULE
NUMBER X
VALVE/ OUTPUT
POWER OFF
UNSWITCHED
POWER LOW
Displayed when a open circuit condition is
detected on a valve coil
OPEN COIL
NO. X
