4.5 Ground Wiring
All Numatics Inc. communication nodes should be grounded during the installation process. These grounding guidelines can be
found in National Electrical code IEC 60204-1 or EN 60204-1.

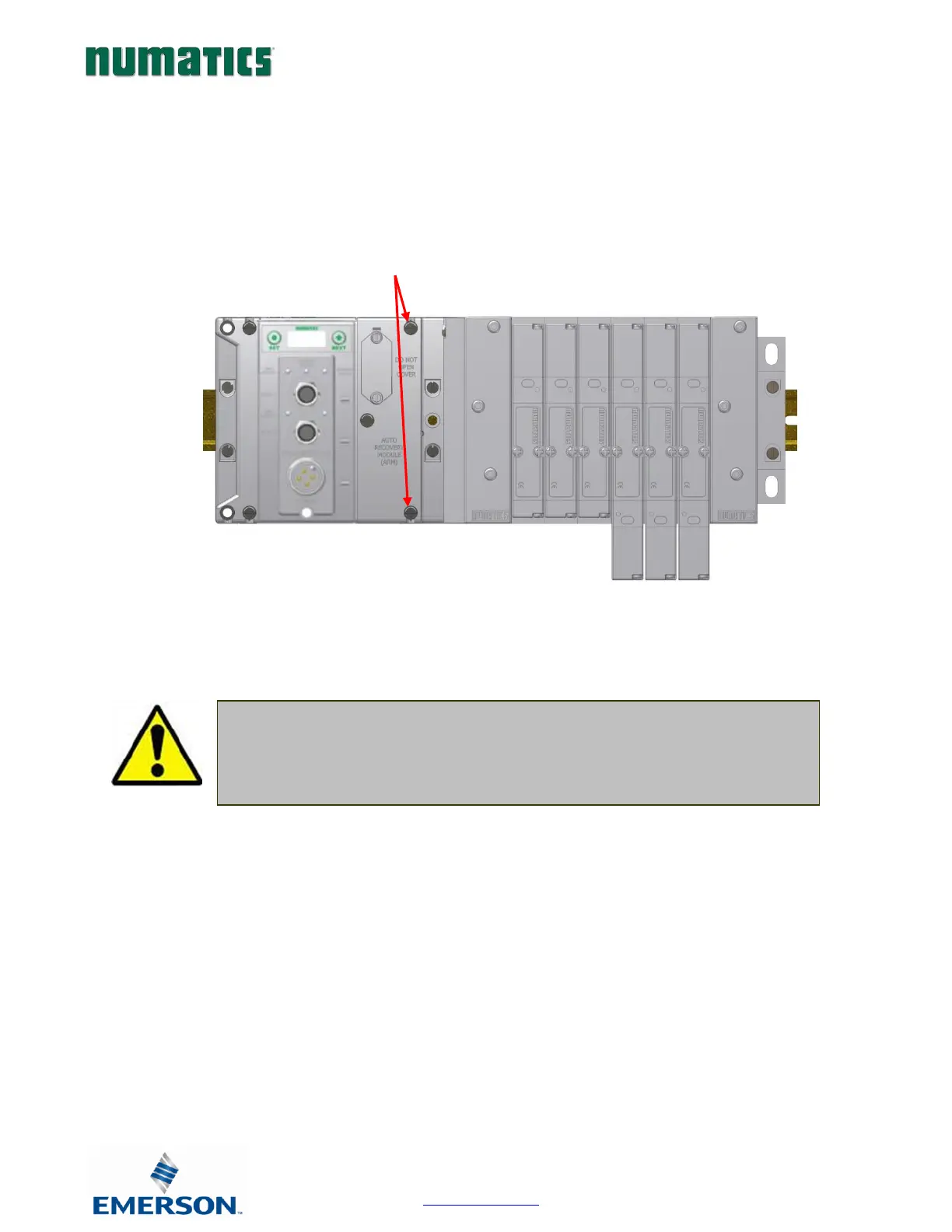

CHASSIS GROUND
CONNECTION POINTS
CAUTION
• Proper grounding will prevent many intermittent problems with network
communication.
• When grounding to a machine frame, please ensure that the machine frame itself
is already properly grounded.
• Better grounding can be achieved when larger diameter (lower gauge) wire is
used.
