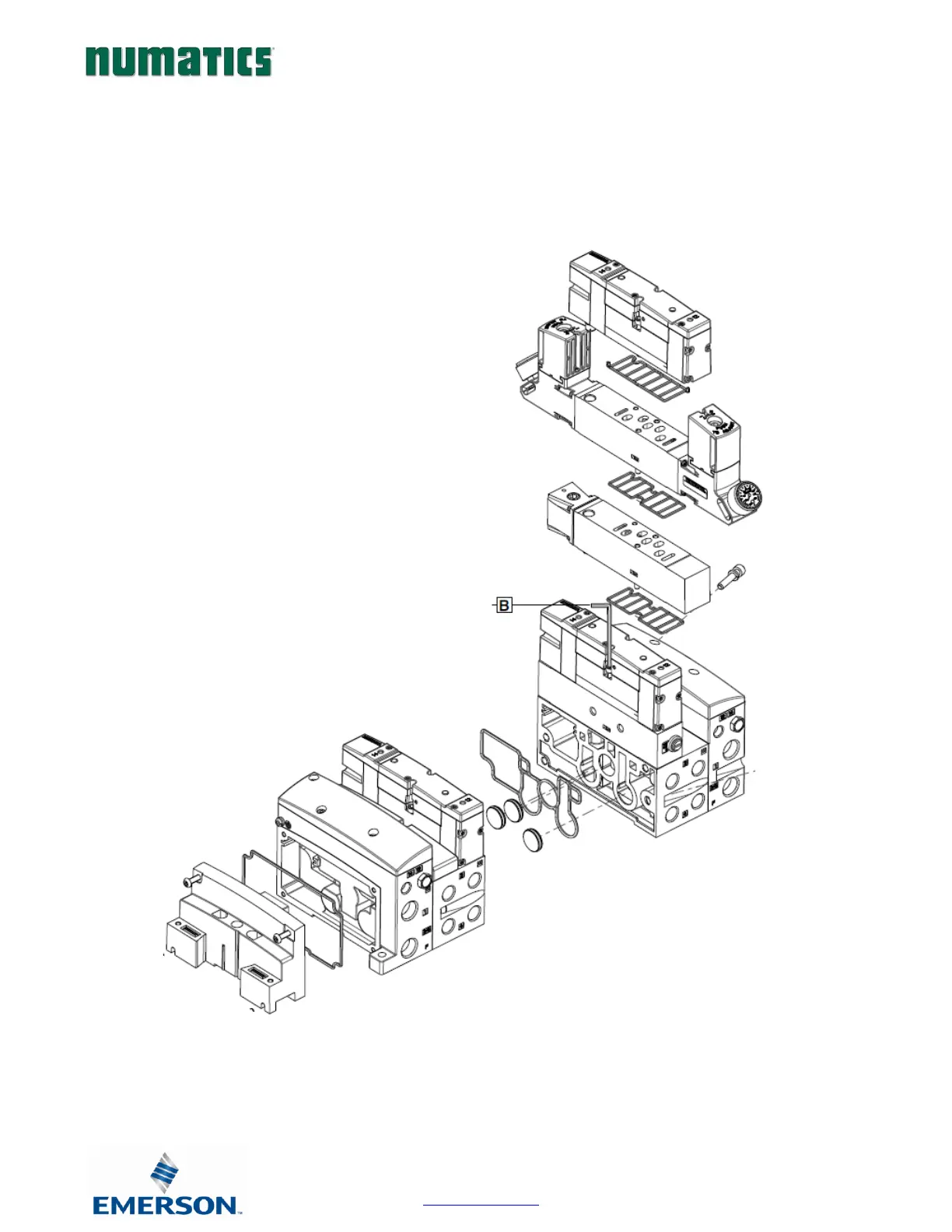

2.2 500 Series Pneumatic Valve Manifold
The pneumatic valve manifold with internal circuit board technology is also modular. The valve solenoid coil connections are
automatically made using Z-Board
™
technology (plug together PC boards), which allow internal connection from solenoid coils
to output drivers without the use of wires). This allows easy assembly and field changes.
