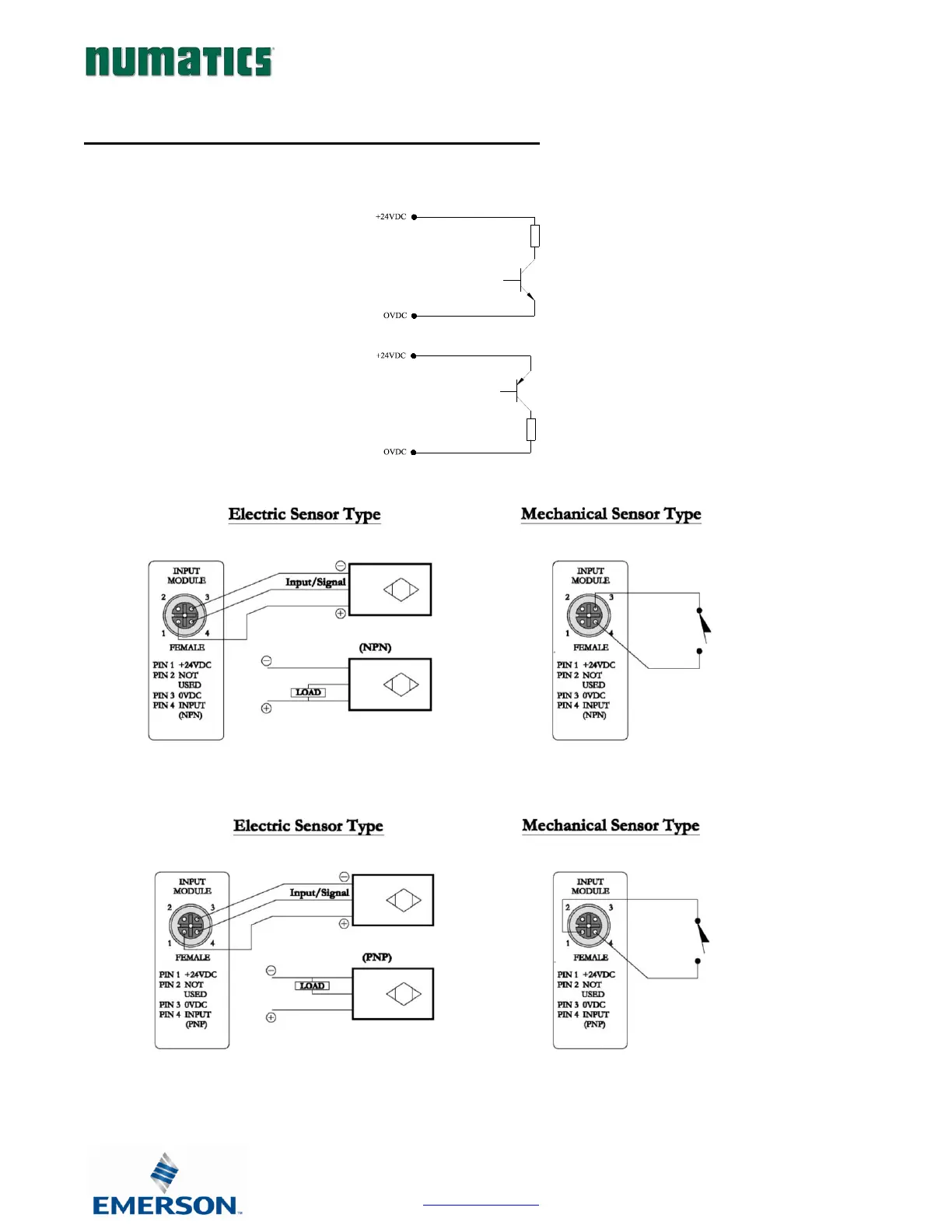

12. I/O Module Wiring Diagrams
12.1 NPN/PNP Definitions
NPN Descriptions
• Sinking
• Switching Negative
• Positive Common
PNP Descriptions
• Sourcing
• Switching Positive
• Negative Common
NPN (Sinking) Input Connection
PNP (Sourcing) Input Connection
LOAD
LOAD
