2.6 2000 Series Z-Board™ Connectors
The 2005/2012/2035 valve series utilize 2 different Z-Board
™
designs to achieve the single and double solenoid
output functions. This yields the possible 32 single, 16 double, or various combinations of valve coil output
capabilities.

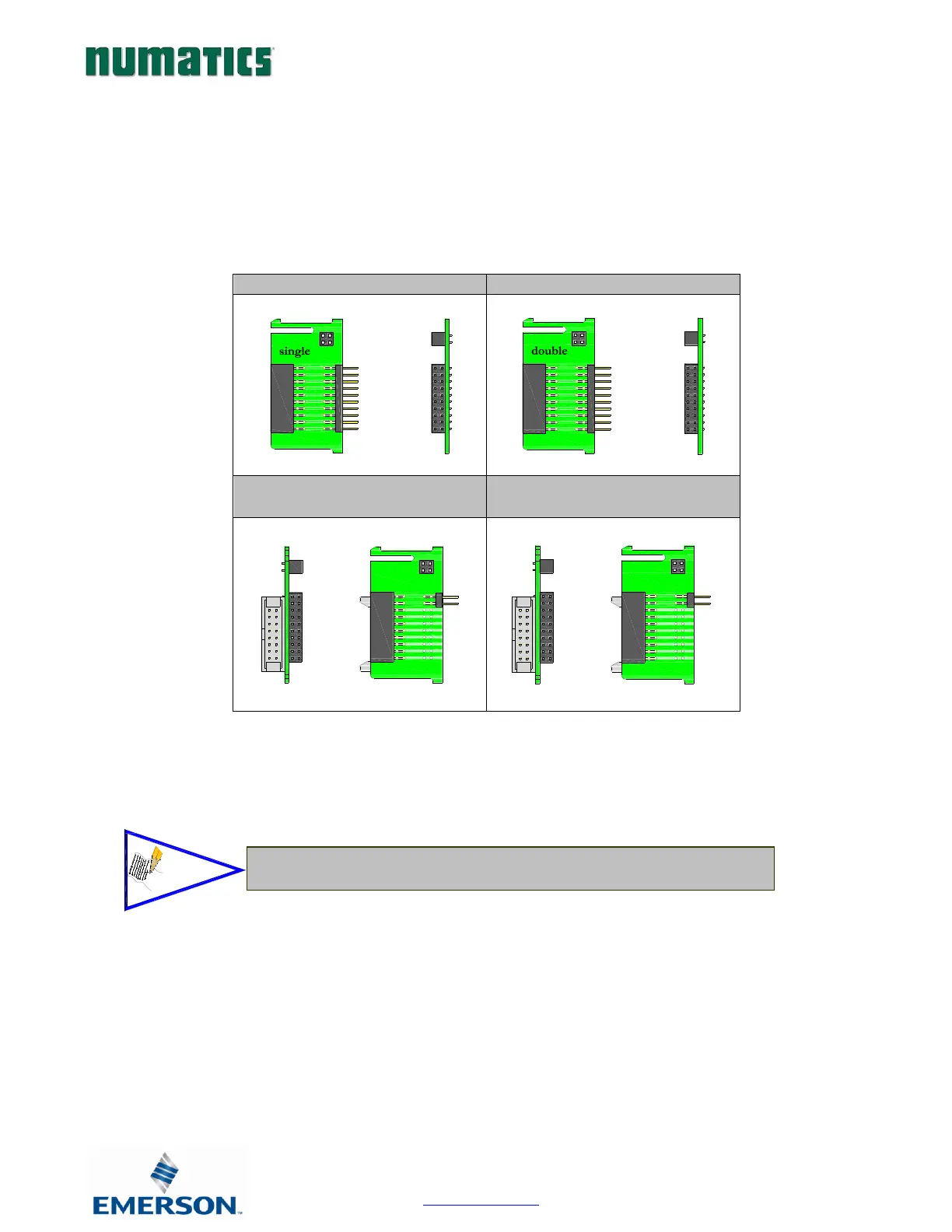

Single Z-Board
™
Double Z-Board
™
Ribbon Connection
Single Z-Board
™
Ribbon Connection
Double Z-Board
™
single
double
The 17
th
solenoid (output group No. 2’s first bit) must be accessed via either
the valve side Sub-D output module or a ribbon connector type Z-board.
NOTE!
