2.8 2000 Series Z-Board™ with Valve Side Sub-D Example

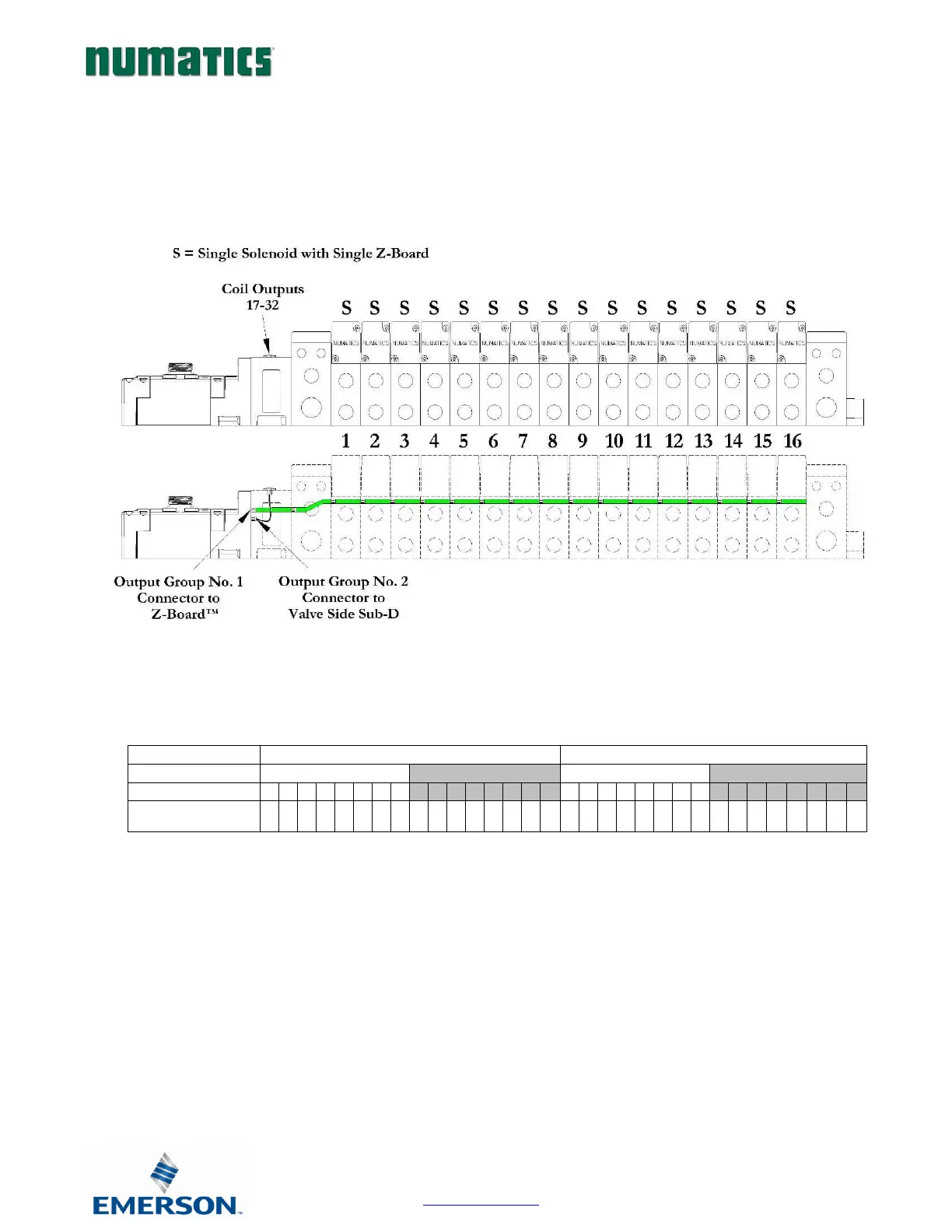

If sixteen (16) single solenoid valves are connected directly to the communication node via Z-Boards
™
and a valve
side Sub-D connector is connected to the communication node via the output Group No. 2 connector then the
following would be the valve side bit map:
Output Word
0
1
Output Byte
0
1
2
3
Output Bit No.
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Solenoid Coil
Output No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
