9.10 502 and 503 Series, up to 80 coils

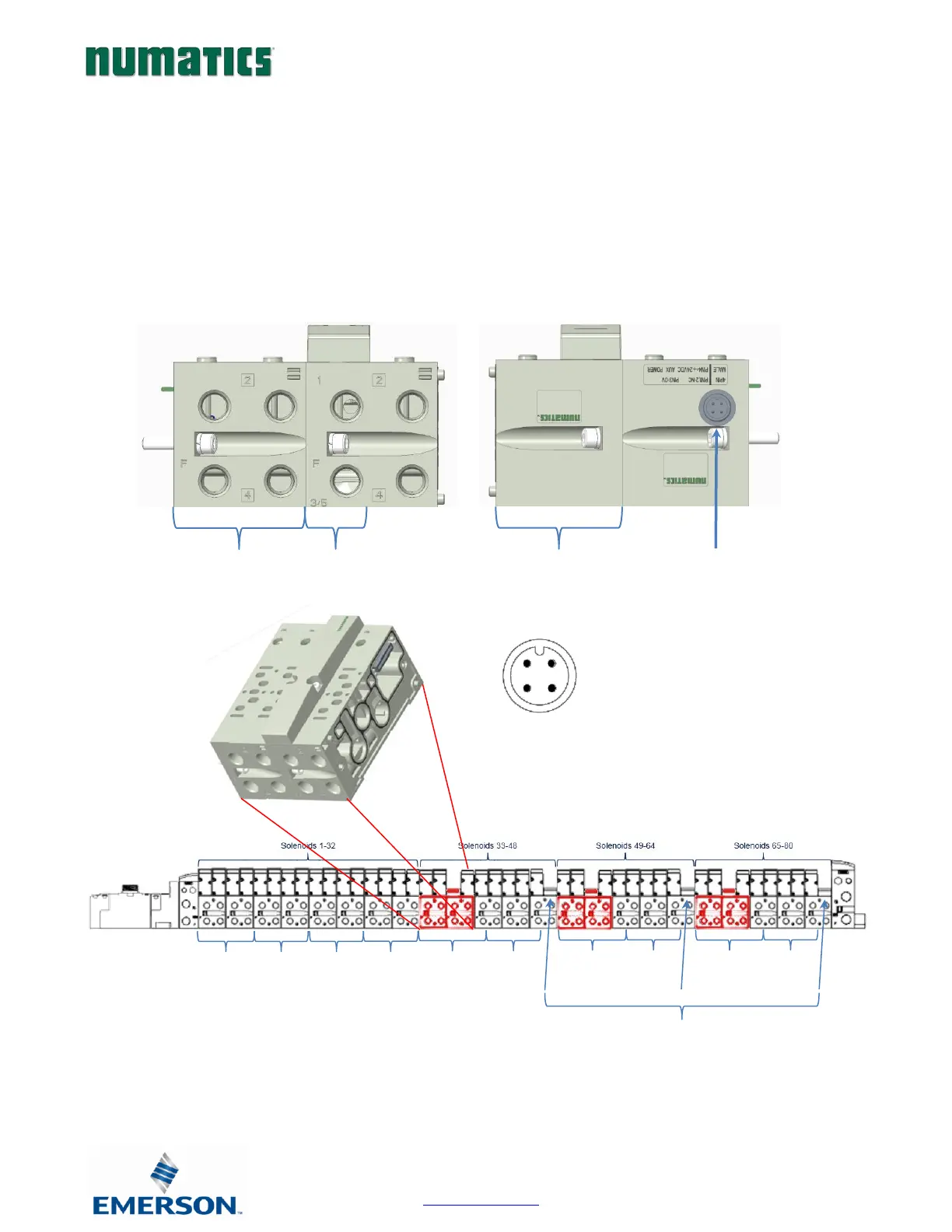

502 and 503 series, 4 station manifold with integrated 16 coil valve driver, power connector and mid-station supply and
exhaust ports
• To be used with 502 and 503 series valves on valve manifold assemblies with 33-80 coils.
• Up to 3 of these valve drivers can be used on each assembly
• Required to use on manifold assemblies larger than 32 coils, this manifold block has a M12 power connector and
two additional port 1 supply and port 3/5 exhaust ports.
• Aux power is required and will provide power to the 16 coils available via the extended coil valve driver.
