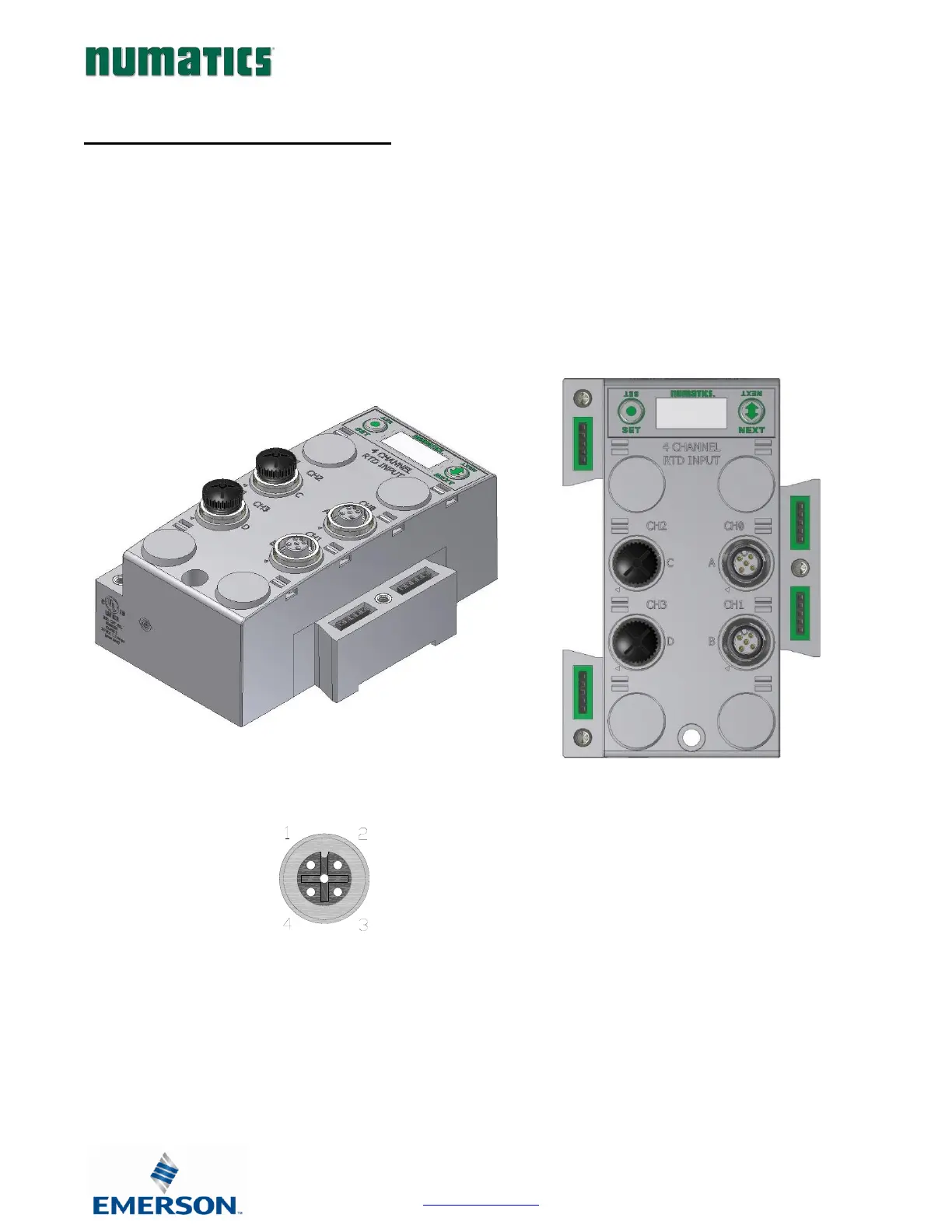

The G3 RTD Temperature module is used with Resistive Temperature Detectors (RTDs) and can support
up to 4 RTD devices simultaneously. This module supports various RTD types including: Pt100, Pt200,
Pt500, Pt1000, Ni100 and Ni1000. Standard M12 single key connector types are used; each
connector/port supports one RTD device, but four different device types can be used simultaneously.
User configuration of parameters include: RTD type, temperature scale (Celsius or Fahrenheit), Hi/Low
temperature alarms, and filter times, and can be selected individually for each connector port using the
integrated display. The G3 RTD module can be incorporated into any G3 electronic system regardless of
the protocol or I/O module position.
FEMALE
PIN 1 = Sensor Current Source (I+)
PIN 2 = Sense Voltage (VIN+)
PIN 3 = Sensor Current Source (I-)
PIN 4 = Sense Voltage (VIN-)
PIN 5 = Not Used
