5.11 Advanced Settings – Flip Display
• This a global setting that affects all modules
• Each module, however, has its own setting if different settings are
required.
•
Flip Display Settings

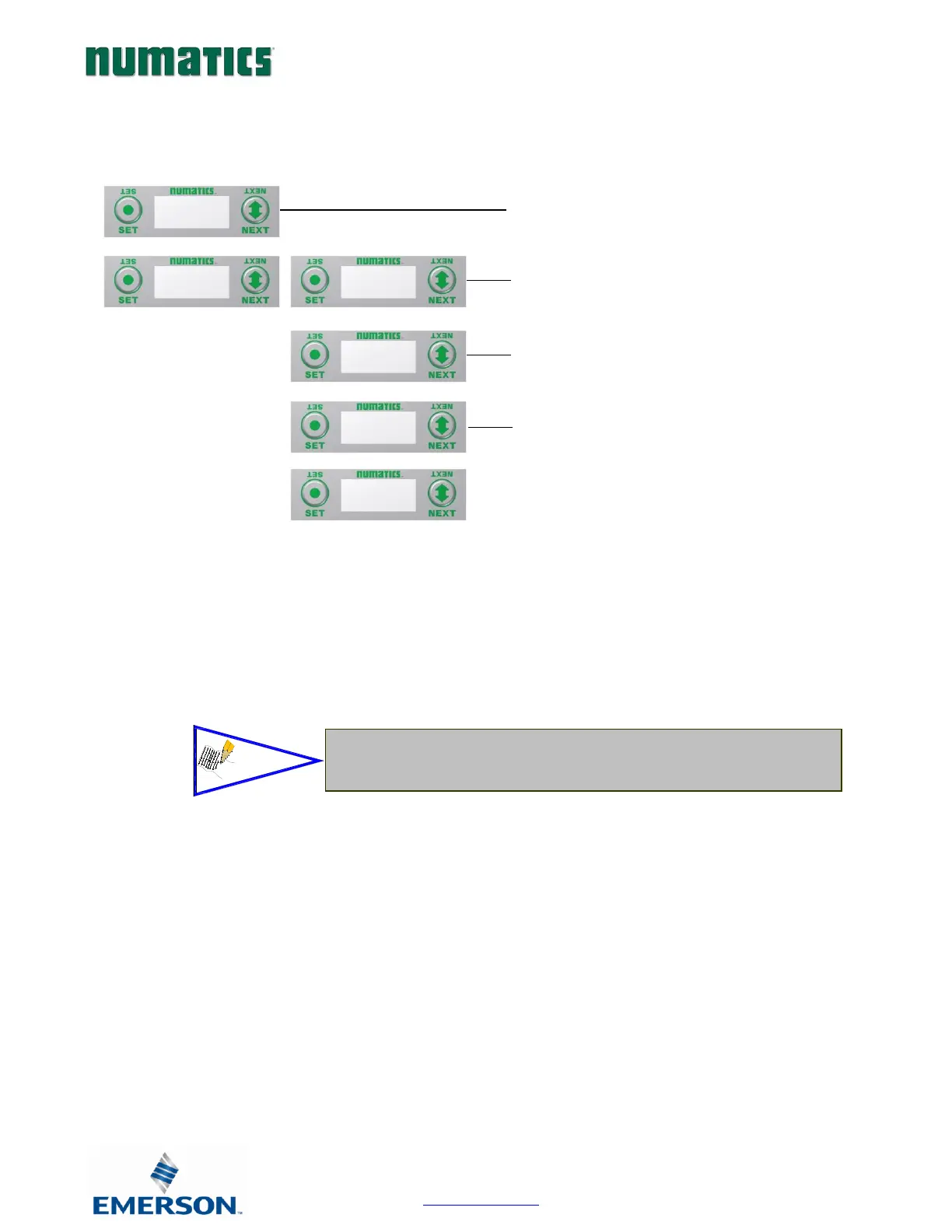

1. Press the SET button to enter the ADVANCED SETTINGS
menu.
2. Press the NEXT button to scroll to the CONFIG MENU / FLIP
DIPLAY.
Press the SET button to enter the CONFIG MENU / FLIP
DIPLAY.
3. The current state of the parameter is shown
4. Press the NEXT button to change this parameter
a. YES
b. RETURN
Press the SET button to confirm your choice.
ADVANCED
SETTINGS
ADVANCED MENU
FLIP DISPLAY
ADVANCED MENU
FLIP DISPLAY
FLIP DISPLAY
YES
FLIP DISPLAY
YES
FLIP DISPLAY
RETURN
NOTE!
