3. Zoned Power

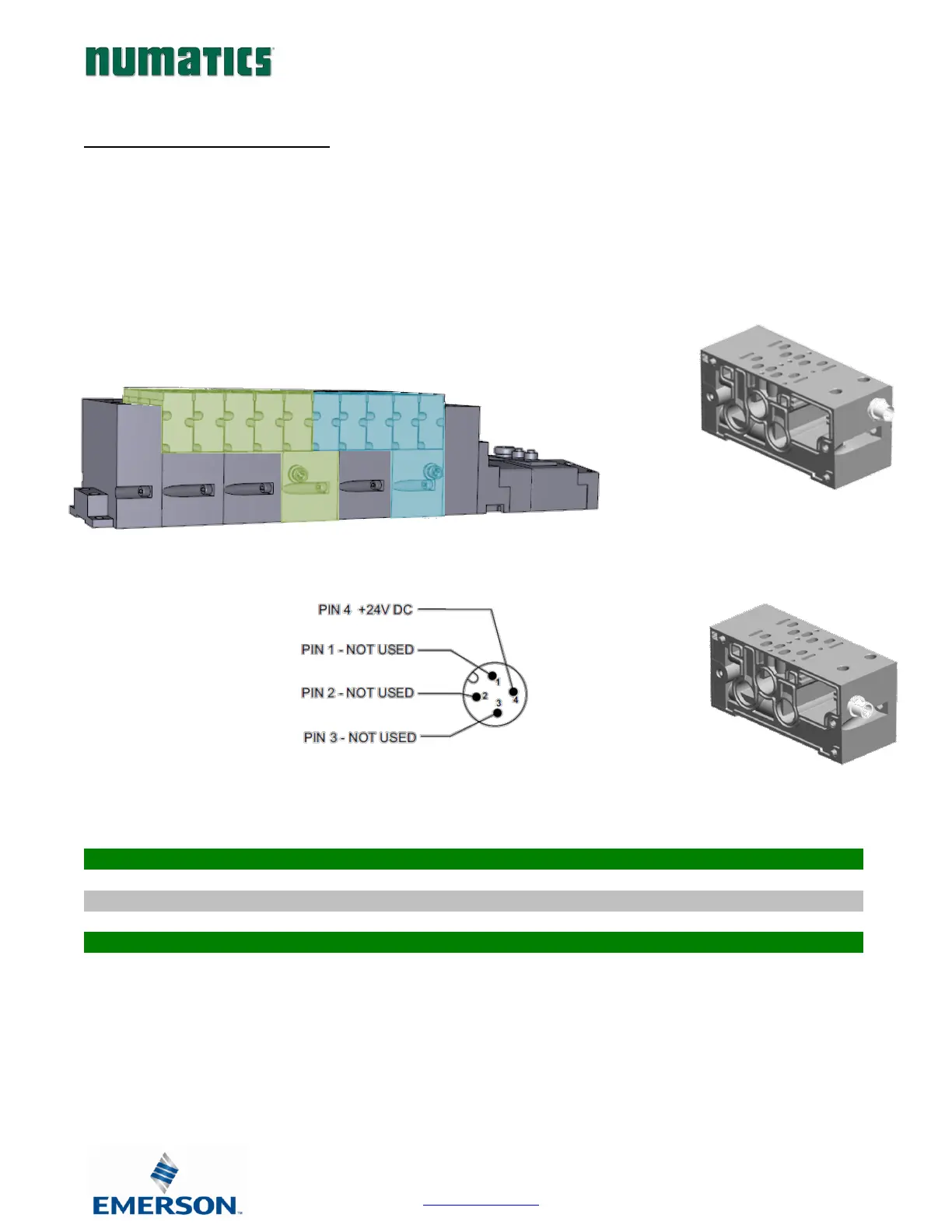

3.1 503 Series Zoned Power application
The Zoned Power Manifold blocks can be incorporated into a 503 manifold assembly to isolate
Power to a number of valve stations, independent from the main power of the manifold. This
is achieved by the integral 4 Pin M12 connector along with the modified manifold board. The
total number of Zoned Power Manifold blocks is determined by the maximum solenoid outputs
as defined by the type of interface (e.g. G3 Electronics, Terminal Strip, D-Sub). For user
flexibility, the Zoned Power Manifold blocks are available in both "proprietary" and "ISO"
versions and can be ordered with the M12 connector starting at the first or second station.
Electrical Data:
Voltage:
24 VDC (0 VDC must be common with main power)
Connection:
4 Pin M12 Single Key Male
Environmental:
IP65 (with proper connection)
Technical Data
V Wiring Option
W Wiring Option
V
W
W & V Connector Pin Out
