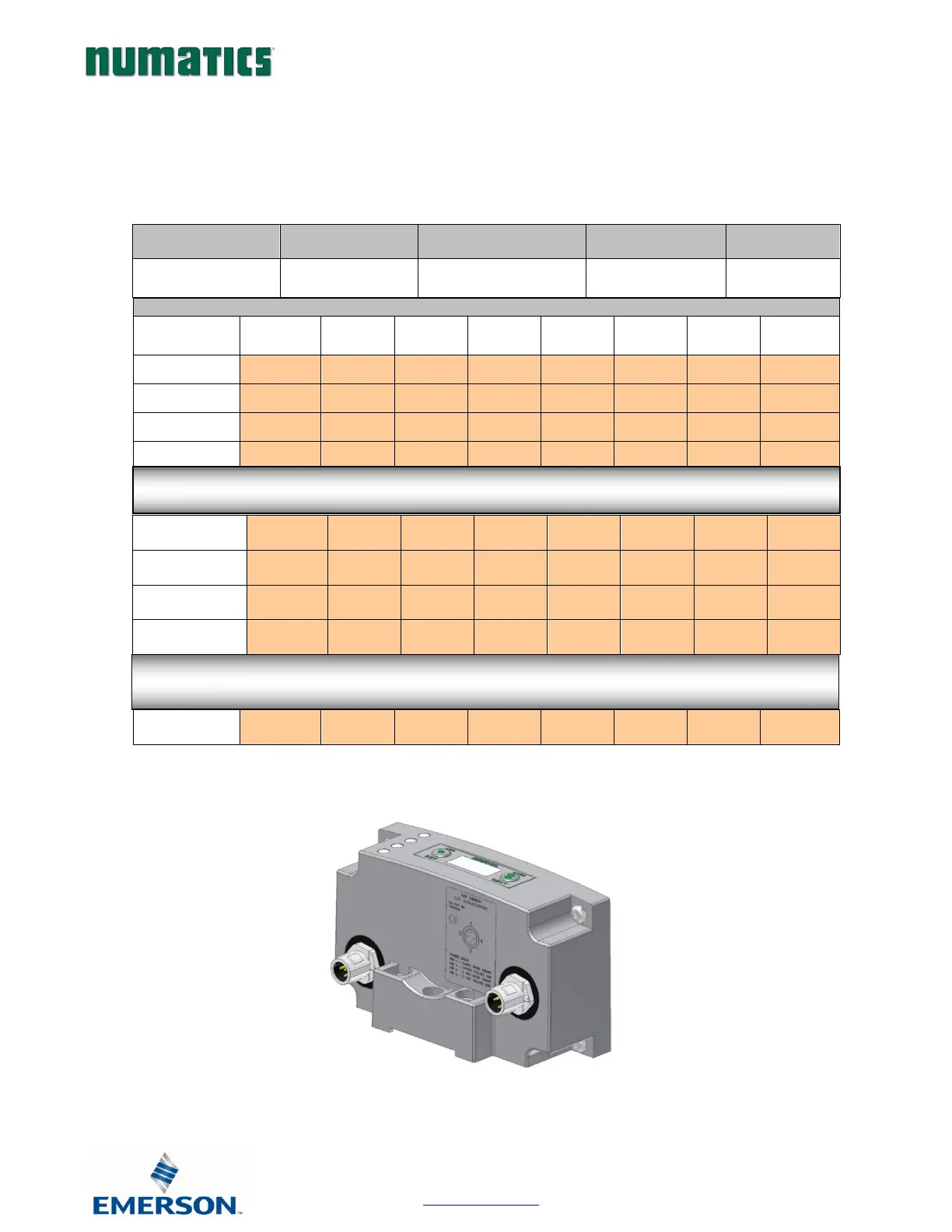

9.3 Sub-bus Valve Module without Distribution and I/O
Used to control a distributed valve manifold through the Sub-Bus. See page 55 for
more information.
Module
Part No.
I/O Type
Short Circuit Protection
Status Bit Data
Output Points
P580AEDS4010A0
0
NPN (Sinking)
YES – Visual
YES (128) –
Optional
128
Output Mapping
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
(Required)
Valve Coil
No. 7
Valve Coil
No. 6
Valve Coil
No. 5
Valve Coil
No. 4
Valve Coil
No. 3
Valve Coil
No. 2
Valve Coil
No. 1
Valve Coil
No. 0
X+1
(Selectable)
Valve Coil
No. 15
Valve Coil
No. 14
Valve Coil
No. 13
Valve Coil
No. 12
Valve Coil
No. 11
Valve Coil
No. 10
Valve Coil
No. 9
Valve Coil
No. 8
X+2
(Selectable)
Valve Coil
No. 23
Valve Coil
No. 22
Valve Coil
No. 21
Valve Coil
No. 20
Valve Coil
No. 19
Valve Coil
No. 18
Valve Coil
No. 17
Valve Coil
No. 16
X+3
(Selectable)
Valve Coil
No. 31
Valve Coil
No. 30
Valve Coil
No. 29
Valve Coil
No. 28
Valve Coil
No. 27
Valve Coil
No. 26
Valve Coil
No. 25
Valve Coil
No. 24
X+4
(Selectable)
Valve Coil
No. 39
Valve Coil
No. 38
Valve Coil
No. 37
Valve Coil
No. 36
Valve Coil
No. 35
Valve Coil
No. 34
Valve Coil
No. 33
Valve Coil
No. 32
X+5
(Selectable)
Valve Coil
No. 47
Valve Coil
No. 46
Valve Coil
No. 45
Valve Coil
No. 44
Valve Coil
No. 43
Valve Coil
No. 42
Valve Coil
No. 41
Valve Coil
No. 40
X+6
(Selectable)
Valve Coil
No. 55
Valve Coil
No. 54
Valve Coil
No. 53
Valve Coil
No. 52
Valve Coil
No. 51
Valve Coil
No. 50
Valve Coil
No. 49
Valve Coil
No. 48
X+7
(Selectable)
Valve Coil
No. 63
Valve Coil
No. 62
Valve Coil
No. 61
Valve Coil
No. 60
Valve Coil
No. 59
Valve Coil
No. 58
Valve Coil
No. 57
Valve Coil
No. 56
X+15
(Selectable)
Valve Coil
No. 127
Valve Coil
No. 126
Valve Coil
No. 125
Valve Coil
No. 124
Valve Coil
No. 123
Valve Coil
No. 122
Valve Coil
No. 121
Valve Coil
No. 120
128 coils total possible
32 additional coils available per each additional 32+ manifold driver board
