Numatics G3 Series - G3 Electronics Modularity

G3 Series EtherNet/IP
TM
DLR Technical Manual
2-8
TDG3EDM1-6EN 3/18
Subject to change without notice
www.asco.com/g3
2.1 G3 Electronics Modularity
Discrete I/O

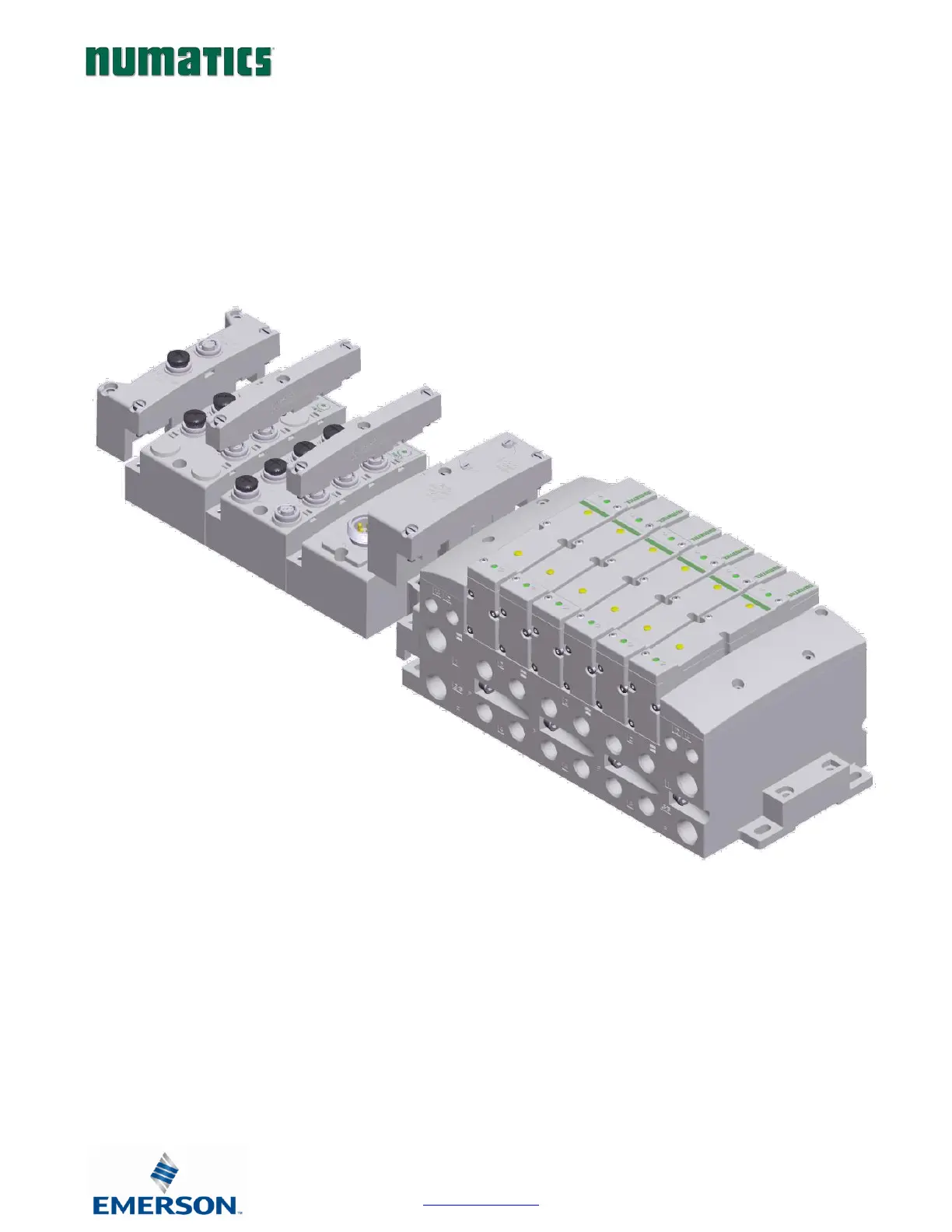

The G3 Series product line is a completely modular and scalable system. As shown below, the G3 electronic modules plug
together, via mechanical clips, allowing for easy assembly and field changes.
