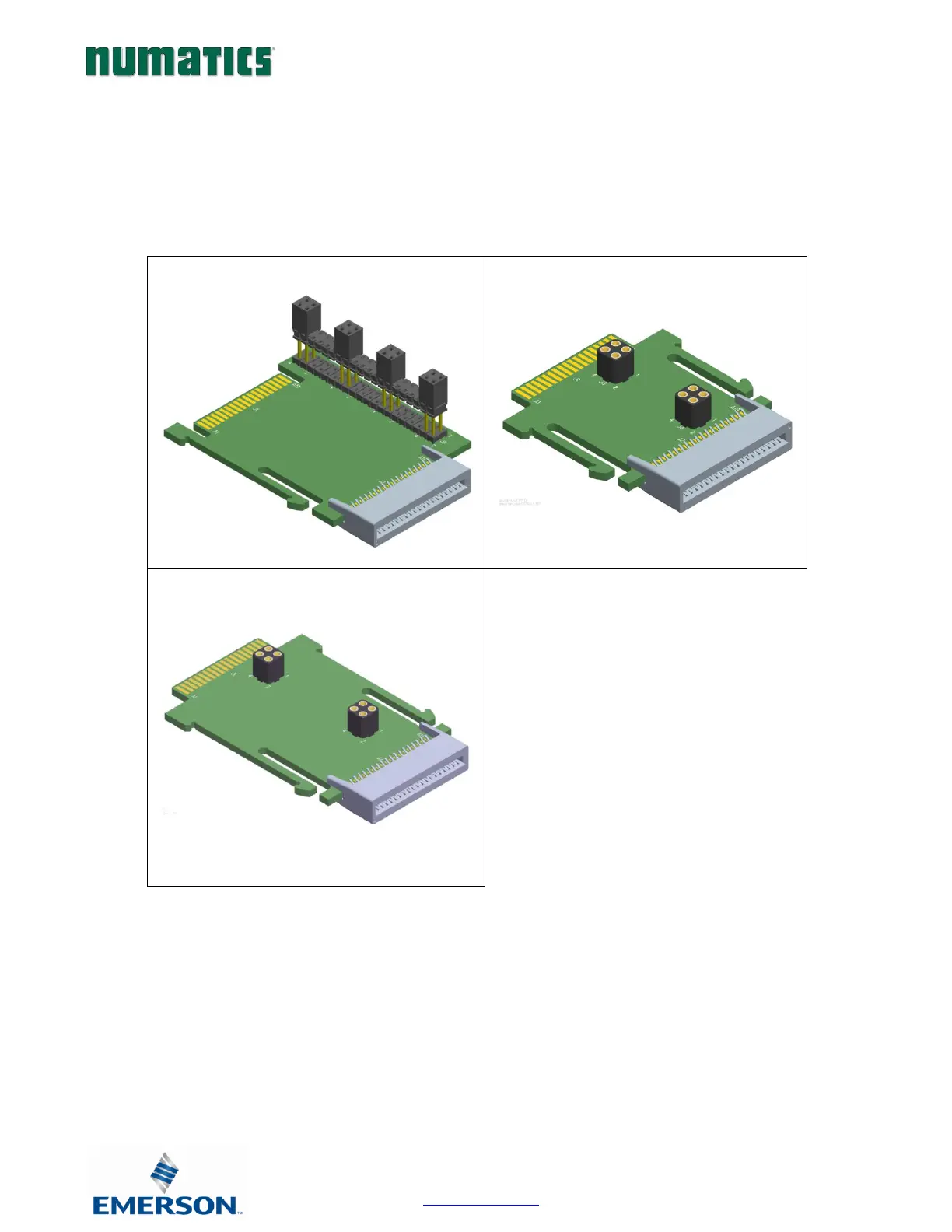

2.4 500 Series Standard Z-Board™ Connectors
The 501, 502 and 503 valve series utilize 2 different Z-Board
™
designs to achieve the single and double solenoid
output functions.
501 Series
502 Series
503 Series
