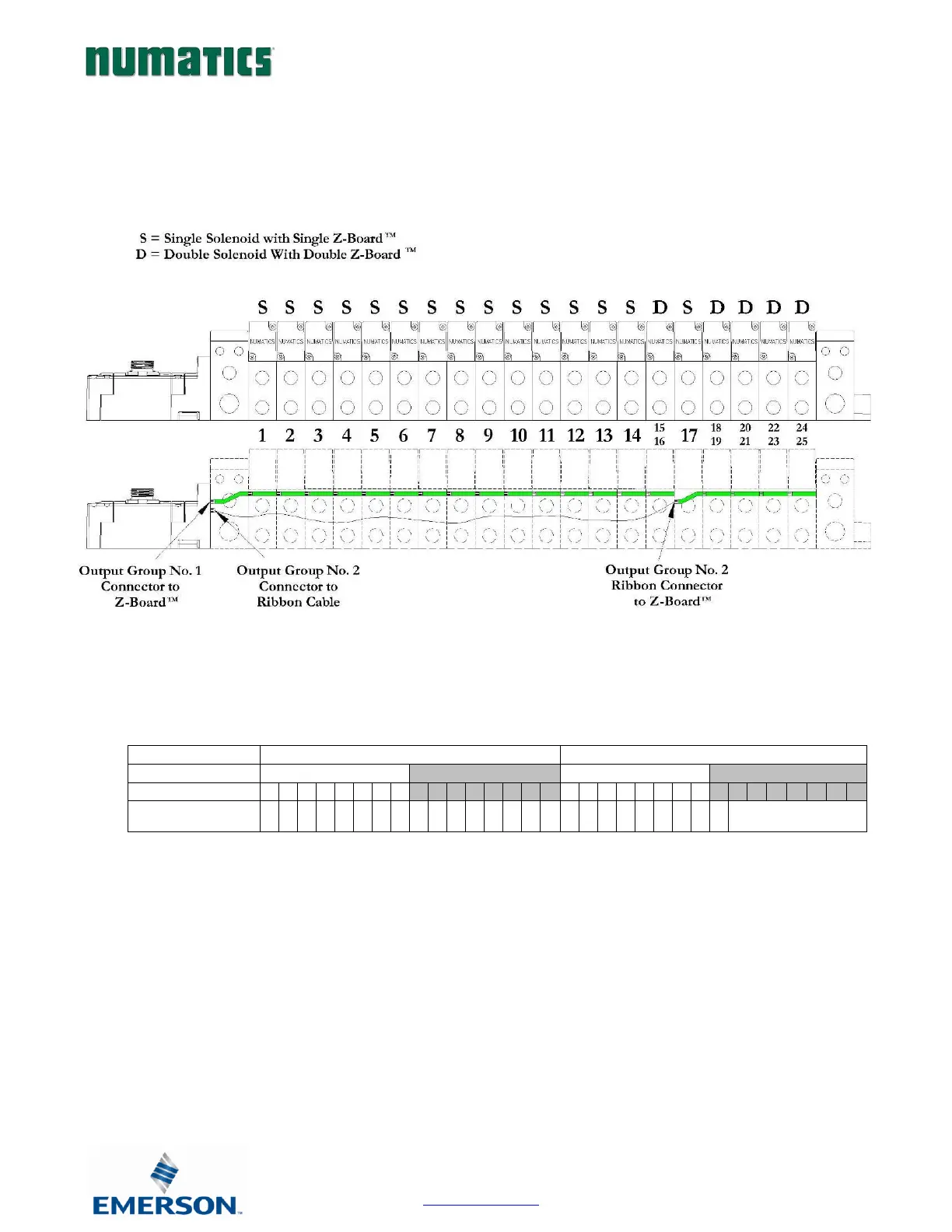

2.7 2000 Series Z-Board™ and Ribbon Cable Example
If fourteen (14) single solenoid and one (1) double solenoid valves are connected directly to the communication
node through the associated Z-Boards
™
. one (1) single solenoid and four (4) double solenoid valves are connected
to the communication node via the ribbon cable, the following would be the valve side bit map:
Output Word
0
1
Output Byte
0
1
2
3
Output Bit No.
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Solenoid Coil
Output No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
n/a
